SYMA GYRO REMOTE CONTROL SERIES User Manual

720p positioning aerial drone with adjustable camera 2.4g
Hide thumbs Also See for GYRO REMOTE CONTROL SERIES:

Advertisement

Table of Contents

See also: User Manual
12+
X

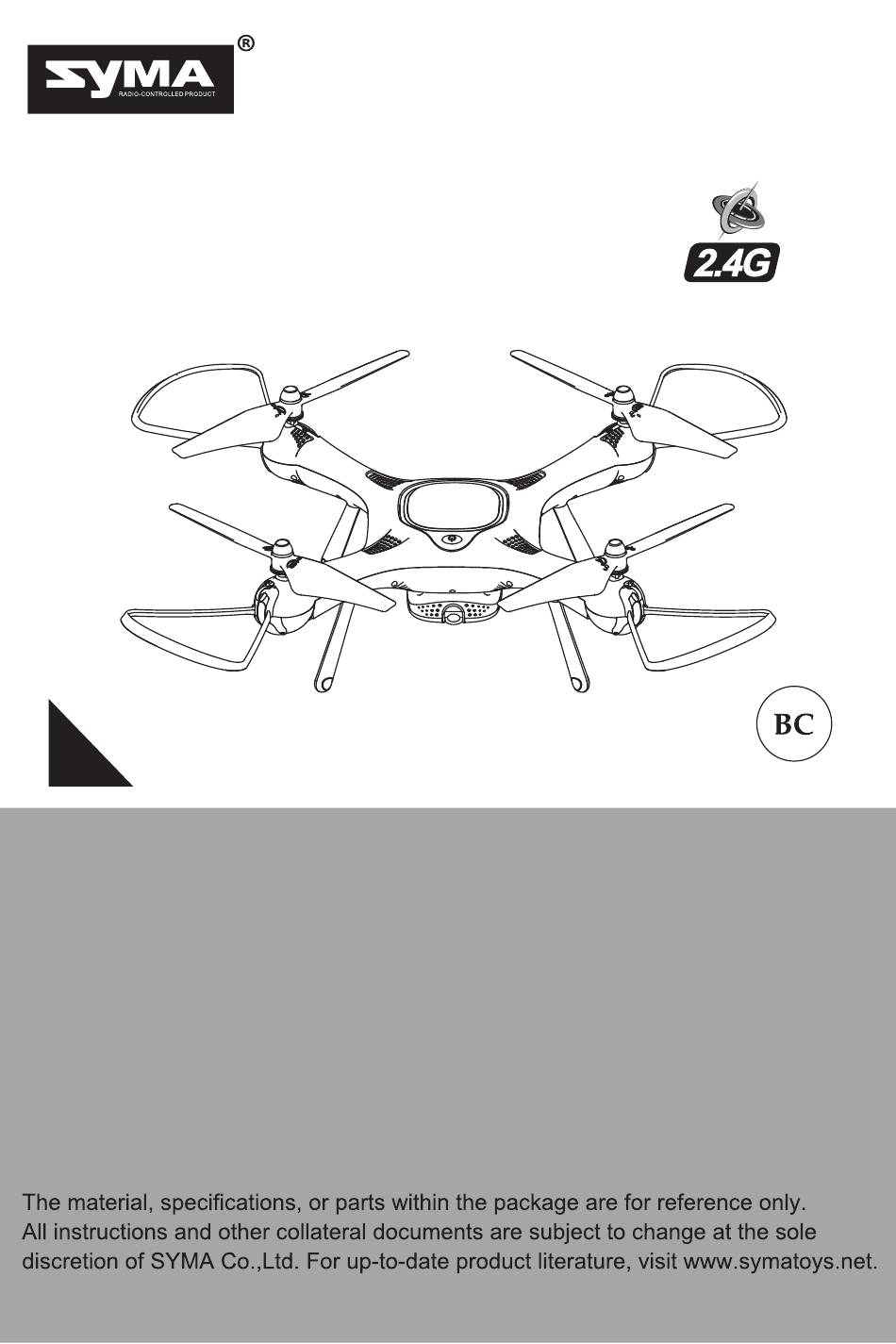

GYRO REMOTE CONTROL SERIES
25PRO
720P POSITIONING AERIAL DRONE WITH ADJUSTABLE CAMERA
USER MANUAL
1
MAIN FEATURES
● Utilizes the 4-axis structure, enabling the drone to be even more flexible ,speedy,
and possessing a relatively stronger wind-withstanding capability. It suitable for
both spacious indoor and outdoor areas.
● Built-in 6-axis gyro stabilizer to ensure the accuracy of in-flight position.
● The structure uses a modular design which makes it easier to install and repair.
● With the functions of outdoor GPS fixed-point, one key return, auto return when
the drone is out of control or in low-voltage, one key ascent/descent, geomagnetic
headless, position hovering mode and 4 channels function which are up/down ,
rise/decline,turn left/right, forward/backward, left/right side flight, follow me, circle
flight .
● HD wifi real-time transmission for getting the fun of different photography.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GYRO REMOTE CONTROL SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for SYMA GYRO REMOTE CONTROL SERIES

Summary of Contents for SYMA GYRO REMOTE CONTROL SERIES

  • Page 1 GYRO REMOTE CONTROL SERIES 25PRO 720P POSITIONING AERIAL DRONE WITH ADJUSTABLE CAMERA USER MANUAL MAIN FEATURES ● Utilizes the 4-axis structure, enabling the drone to be even more flexible ,speedy, and possessing a relatively stronger wind-withstanding capability. It suitable for both spacious indoor and outdoor areas.

  • Page 2: Safety Guide

    Safety Guide 1.Please store the smaller-sized drone accessories in places that are out of reach of children. 2.This drone is very powerful. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone from ascending too fast to avoid unnecessary collision and possible damage and injury.

  • Page 3: Package Description

    Package description The following items can be found in this product package: ●Drone ●4 Protective Gears ●Remote Control ●Mobile Phone Retaining Clip ●User Manual ●4 Blades ●USB Charger Blade and Protective Gear’s Installation Methods Blade’s installation Press the blade lock down, and then the blade "A" is rotated in A clockwise direction to remove, and it is locked in A counterclockwise rotation;The blade B is rotated in A counterclockwise to remove, and it is locked...
  • Page 4 Dismantling steps for camera 2.Take out the camera upward and 1.Rotate the camera in the clockwise disconnect the wire connector direction. from the drone. Installation of Mobile Phone Retaining Clip Mobile phone retaining clip’s attachment method: 1.Pull up the phone clip 2.Insert the phone clip 3.
  • Page 5 3. Insert the USB port of USB charging cable to power supply and the red indicator light will turn on, while the battery is inserted for charging the green indicator light will turn on,and it will turn off when charging completed.It takes about 150 minutes to completely charge the battery.

  • Page 6: Battery Installation For Remote Control

    Down adjustment camera angle Video Return Photo One key Take Off/Landing Upper adjustment camera angle Battery installation for remote control: Battery cover 4 x AA Batteries Battery Installation Method: Open up the battery cover at the back of the remote control. Correctly place 4 x AA alkaline batteries in the battery box in strict adherence to the polarity instructions ( batteries are not included).

  • Page 7: Compass Calibration

    ① ② ③ 2.Compass Calibration： Before the first flight, the compass calibration is required. When the remote control has connected to the drone, push the left joystick to the right bottom corner and hold it, then press the One key return button located at the upper right corner of the remote control (Figure 1).

  • Page 8: Direction Control

    Method 2:Push the left and right joysticks to the bottom inner corners for 1 second, the blades of the dronestart rotating slowly. Method 3:When the drone is stationary, press the button B, the drone automatically takes off and hovers at a certain height. 1.If the drone is out of the range of the flight, the indicator light will flash slowly, and then slow down.

  • Page 9: Trimming Operation

    Left turning and right turning control Left side flying and right side flying control Front When the left joystick (throttle) is When the right joystick (rudder) is pushed towards the left or right, pushed towards the left or right, the drone will turn left or right the drone will fly sideways on the correspondingly.
  • Page 10 2. Low-voltage protection: When the four indicator lights at the bottom of drone start flashing, it means that the drone's battery power is low. At this time, please control the drone return. Over-Current Protection: When the drone encounters direct impact from a foreign object, or is obstructed, or the blades are not rotating, the drone will go into the over-current protection mode.
  • Page 11 8.GPS Coordinates & Aerial Photography : After the drone complete recording the return point, it can take an aerial photography at the fixed point accurately, the camera will able to take the photo or record the video with adjusting the camera angle up and down at the range of 0-90 degree.
  • Page 12 11.Wireless Real-Time Transmission Function ①Downloading the installation software For Android phones, download and install the SYMA FLY APP by visiting the www.symatoys.com or by scanning the QR code. For IOS Apple phones, download and install the SYMA FLY APP by visiting the App Store or by scanning the QR code.
  • Page 13 This device must not be collocated or operating in conjunction with any other antenna or transmitter.” Decoration of Conformity lnserts: “Hereby, GuangDong Syma model aircraft lndustrial co.,ltd, declares that this drone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.”...
  • Page 14 Accessories /Parts List (Optional) You can choose your favourite optional accessories as below. In order to make it easier for the customers to choose and purchase, we have specially offered each and every accessory. The accessories can be purchased through the local distributors.

  • Page 15: Product Descriptions

    Product Descriptions Product Name Qty. Product Name Qty. Product Name Qty. switch Top main Body Landing Gear Ornament Bottom main Body Lamp Cover Blade(Clockwise Light guide part Light Bar Direction) Blade(Counter- Top cover Camera clockwise Direction) Blade lock Protective Gear Motor seat Battery Upper Light Bar...

  • Page 16: Main Specifications

    Main Specifications 110mm 375mm 375mm Drone’s Length: 375mm Drone’s Width : 375mm Drone’s Height: 110mm Motor’s Model : 10x20 Ø Battery : 7.4V 1000mAh lithium battery Rectification Procedures Problem Reason Solution 1. The drone has entered into The drone low-voltage protection. 1.
  • Page 17 Problem Reason Solution In the headless 1. Re-define the front direction. state, it is biased 1. Many collisions may cause For further details, see No. 10 towards the front head drift. Page 10 for details(Headless direction function). 1.Re-adjust the calibration until the drone is level to the ground.
  • Page 18 QR code for android QR code for apple system iOS system Manufacturer Guangdong Syma Model Aircraft Industrial Co., Ltd. The Crossing of No.2 West Xingye Road and North Xingye Road,Laimei. Industrial Park Chenghai District Shantou City Guangdong China. Contact person：SYMA Telephone：+86 0754 86381898 The company has the right of final interpretation of this instruction manual statement.
