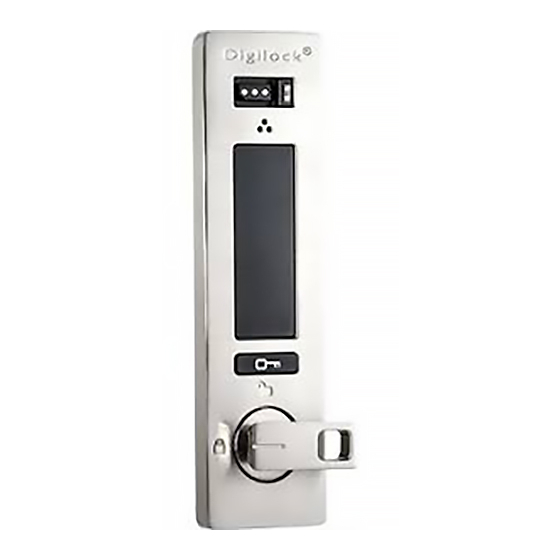

ASSIGNED USE - RFID CAMLOCK

Lock Interface Overview

Key Insertion

Digilock Logo must face up.

Unlock Position

To Assign or Change an RFID Card

Press and Hold:

for 10 seconds

LED light will flash.

Note: The lock will accept only one Single-Frequency RFID Card or one

Dual-Frequency RFID Card at a time.

Key Insert

Lock Position

Touch the Manager Key (black) to the

key slot of the lock for one full second.

Lock will emit two tone beep and the

LED light will turn solid.

QUICK GUIDE

LED Usage Indicator

RFID Antenna

Key Symbol Button

Lock/Unlock Knob

Manager Bypass Key (Black)

• Provides management access

• Provides external power

• Each lock accepts up to (25)

Manager Bypass Key(s)

• Minimum of (1) required per location

RFID Card

• ADA Compliant RFID Card

Present: Registered RFID card

Lock will emit two tone beep and the

LED light will turn off.

Need help?

Do you have a question about the Assigned Use RFID Camlock and is the answer not in the manual?

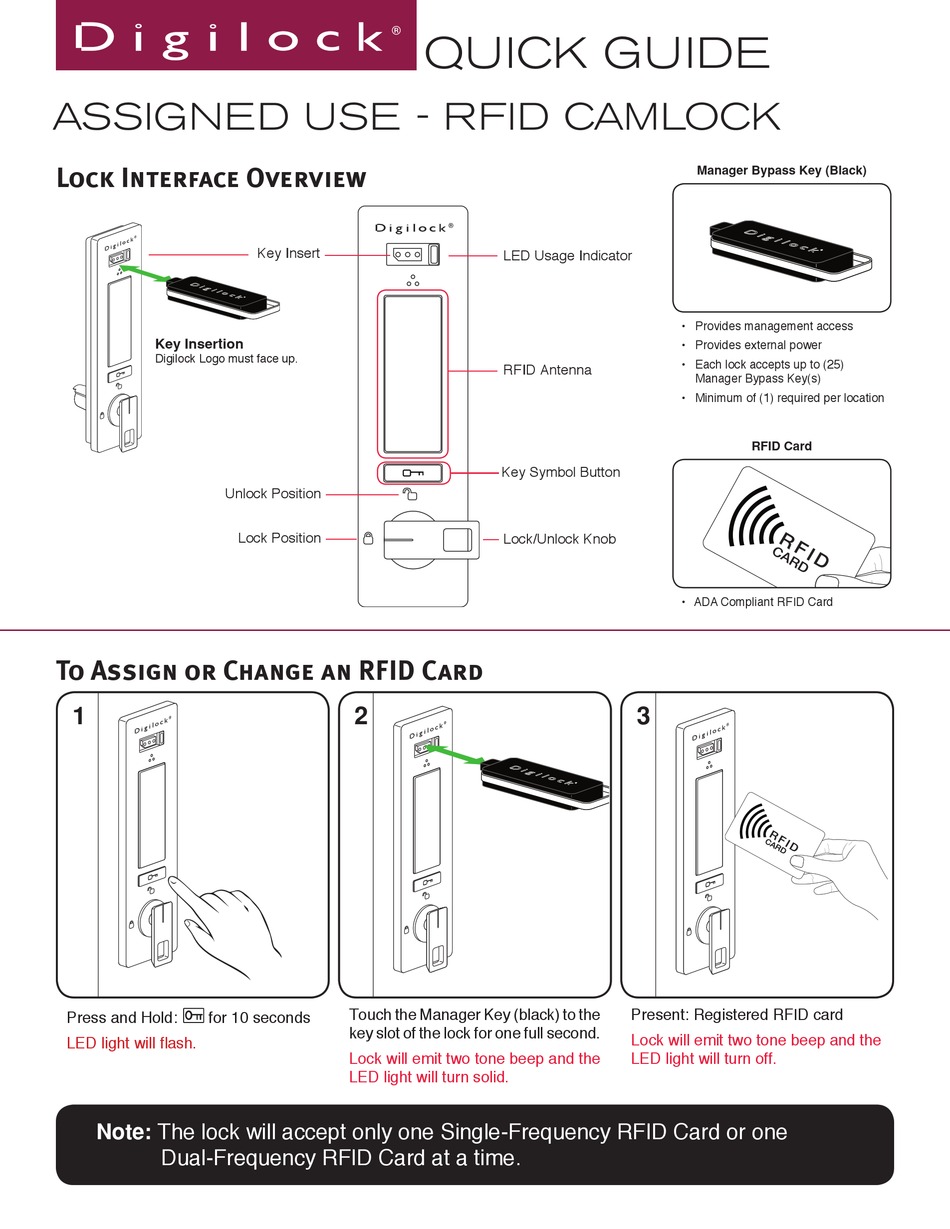

Page 1 QUICK GUIDE ASSIGNED USE - RFID CAMLOCK Lock Interface Overview Manager Bypass Key (Black) Key Insert LED Usage Indicator • Provides management access Key Insertion • Provides external power Digilock Logo must face up. • Each lock accepts up to (25) RFID Antenna Manager Bypass Key(s) • Minimum of (1) required per location RFID Card Key Symbol Button Unlock Position Lock Position Lock/Unlock Knob • ADA Compliant RFID Card To Assign or Change an RFID Card...
Page 2 To Operate with an Assigned RFID card To Unlock 1) Turn knob clockwise (to the right) towards 1) Press: unlocked symbol. 2) Present: Registered RFID card Warning: Lock will remain in the locked position if the knob is not turned within 7 seconds. 2) Open door. To Lock Turn knob all the way counterclockwise (to the left) After turning counterclockwise fully, verify the locker towards locked symbol. is secure by pulling gently at the locker door. Note: If an incorrect RFID card is entered three consecutive times, the lock will go into “Sleep State” for one full minute. For Additional Product and/or Product Information: 9 Willowbrook Court, Petaluma, CA 94954 Visit: www.digilock.com • E-mail: support@digilock.com Phone: (800) 989.0201 • (707) 766.6000 Contact: Digilock Product Representative Fax: (800) 989.4221 • (707) 766.6226...
