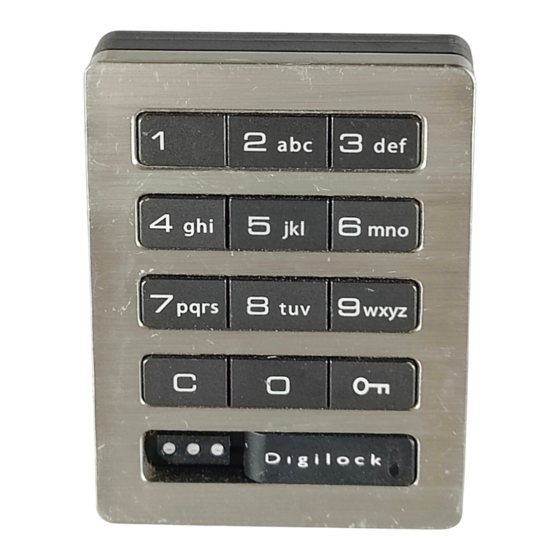

LockUp E/Ex is a keypad lock designed for LockUp lockers in shared use applications. The user chooses an available locker then enters a
self-selected 4-digit code to lock and unlock. Once unlocked, the locker is available for a different user. Management staff uses Manager
Flex Key(s) for locker access and audit/inspection.
LOCK PARTS
Front Unit
C Button
Key Slot
KEYS
Operates the lock
Overrides user access
Allows management inspection
Provides external power
PROGRAMMING INSTRUCTIONS
Initial Setup
LockUp locks may arrive set up to operate with registered Manager Flex Key(s). If the lock operates by pressing
set up to allow full operation.
a Go to the lock requiring setup.
b Make sure the locker door is open and the lock is in the unlocked position (bolt is retracted).
c Touch the Manager Flex Key to the key slot until a two-tone beep is heard and the bolt extends.
d Touch the Manager Flex Key to the key slot again to retract the bolt.
PG-LUP5G-EX-TB-DEN
030822
1
Product Guide
Numeric Keypad
Key Button
LED Usage
Indicator
User Key
•
Keypad Locks
Shared Use Functionality
Rear Unit
Cover Plate Screw
Key Insertion
Manager Key
•
•
•
•
LockUp logo must face up
3/8" (9.5 mm)
Springbolt
Lock Mounting Holes
Cover Plate
, the lock must be
= `
Phone: 707 766 6000
www.lockup.com | sales@digilock.com
Advertisement
Related Manuals for Digilock LOCKUP E
Summary of Contents for Digilock LOCKUP E
- Page 1 Shared Use Functionality LockUp E/Ex is a keypad lock designed for LockUp lockers in shared use applications. The user chooses an available locker then enters a self-selected 4-digit code to lock and unlock. Once unlocked, the locker is available for a different user. Management staff uses Manager Flex Key(s) for locker access and audit/inspection.
- Page 2 = ` 9 1 ` b Touch the Manager Flex Key to the key slot until a two-tone beep is heard and the LED turns off. c Repeat above steps for each lock. PG-LUP5G-EX-TB-DEN Phone: 707 766 6000 030822 www.lockup.com | sales@digilock.com...
- Page 3 *The lock will go into Sleep Mode after 3 consecutive incorrect entries. **If a Manager Flex Key is used to unlock and relock, the previous user Code or User Key will continue to operate the lock. PG-LUP5G-EX-TB-DEN Phone: 707 766 6000 030822 www.lockup.com | sales@digilock.com...
- Page 4 Phillips head screwdriver. the screw. Replace with two premium alkaline 9V Remove the Cover Plate by lifting the edge batteries. of the cover. Recycle used batteries according to local regulations. PG-LUP5G-EX-TB-DEN Phone: 707 766 6000 030822 www.lockup.com | sales@digilock.com...
