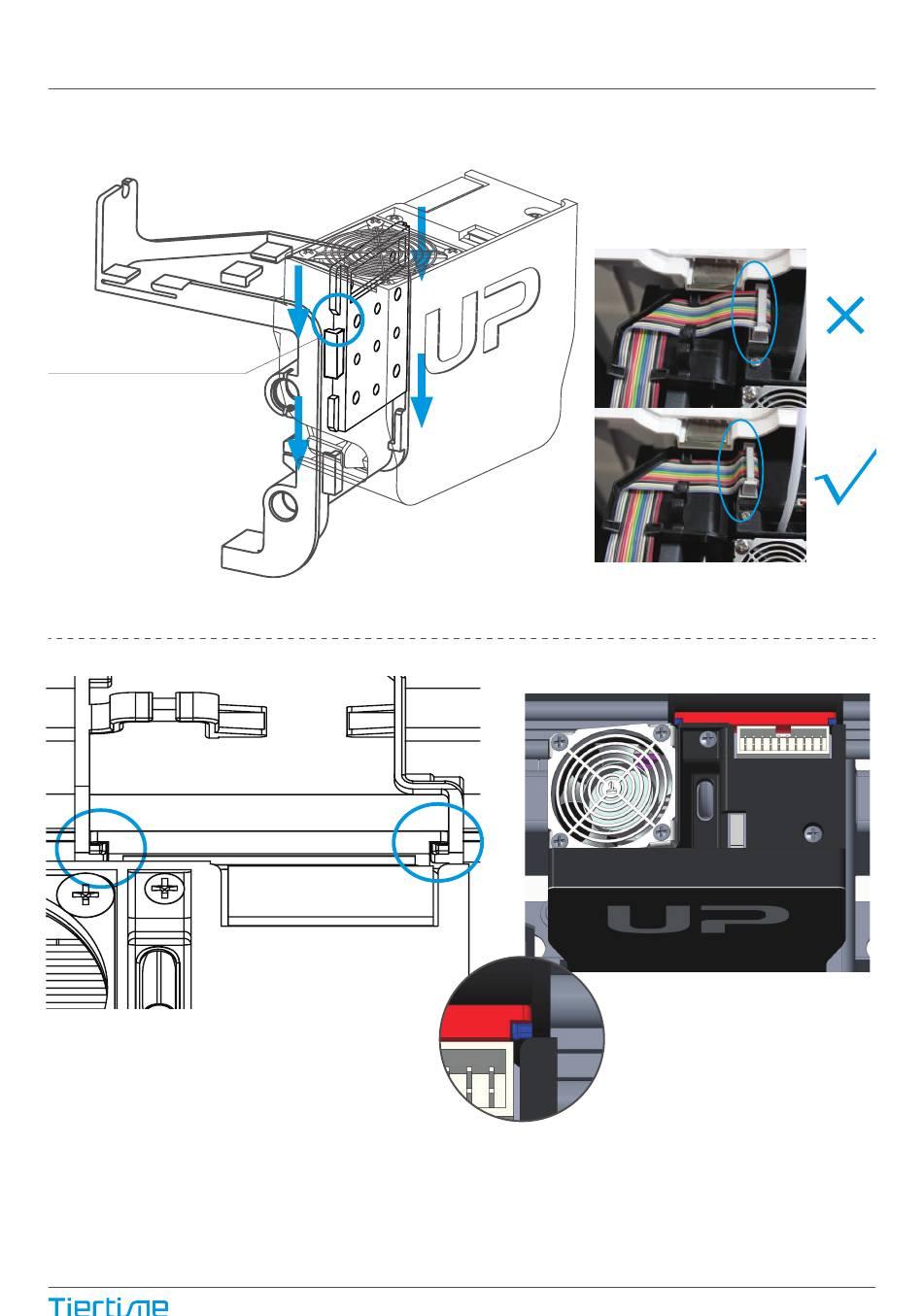

Print Head Installation
Slide the print head
into the slots.
The Correct Installation about
Printhead FFC cable for UP mini 2.
The print head must be pushed
to the bottom of the mount.
Notice:
when installed correctly,
the red and the blue parts should
be at the same level.
2-2
08
