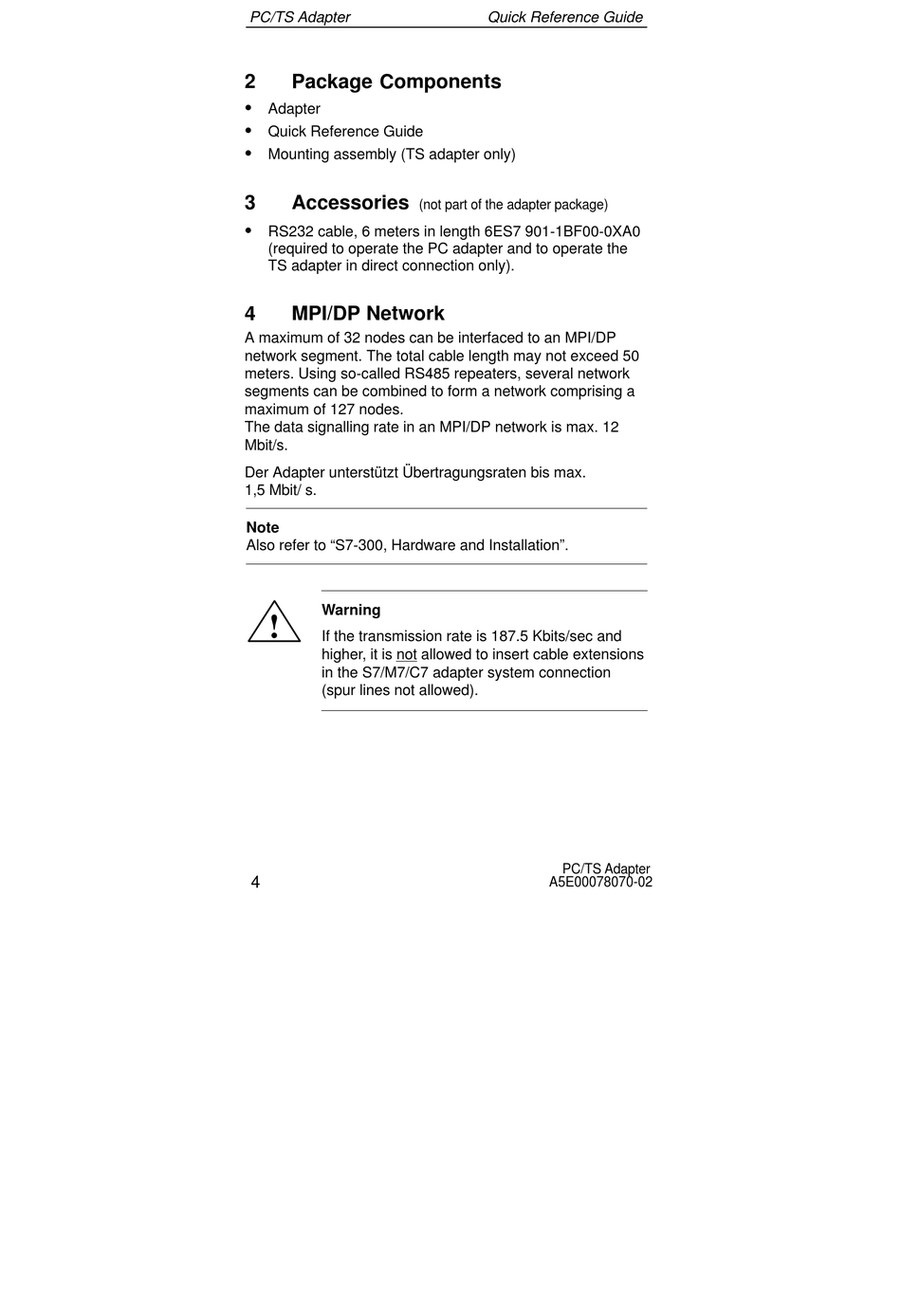

PC/TS Adapter
2

Package Components

S
Adapter
S
Quick Reference Guide
S
Mounting assembly (TS adapter only)
3

Accessories

S
RS232 cable, 6 meters in length 6ES7 901-1BF00-0XA0
(required to operate the PC adapter and to operate the
TS adapter in direct connection only).
4

MPI/DP Network

A maximum of 32 nodes can be interfaced to an MPI/DP
network segment. The total cable length may not exceed 50
meters. Using so-called RS485 repeaters, several network
segments can be combined to form a network comprising a
maximum of 127 nodes.
The data signalling rate in an MPI/DP network is max. 12
Mbit/s.
Der Adapter unterstützt Übertragungsraten bis max.
1,5 Mbit/ s.
Note
Also refer to "S7-300, Hardware and Installation".
Warning
!
If the transmission rate is 187.5 Kbits/sec and
higher, it is not allowed to insert cable extensions
in the S7/M7/C7 adapter system connection
(spur lines not allowed).
4
Quick Reference Guide
(not part of the adapter package)
PC/TS Adapter
A5E00078070-02
