Installation Instructions

Model AC-ADPT
AC Adapter
INTRODUCTION
INSTALLATION
COMPATIBILITY
SPECIFICATIONS
P/N 315-033992-4

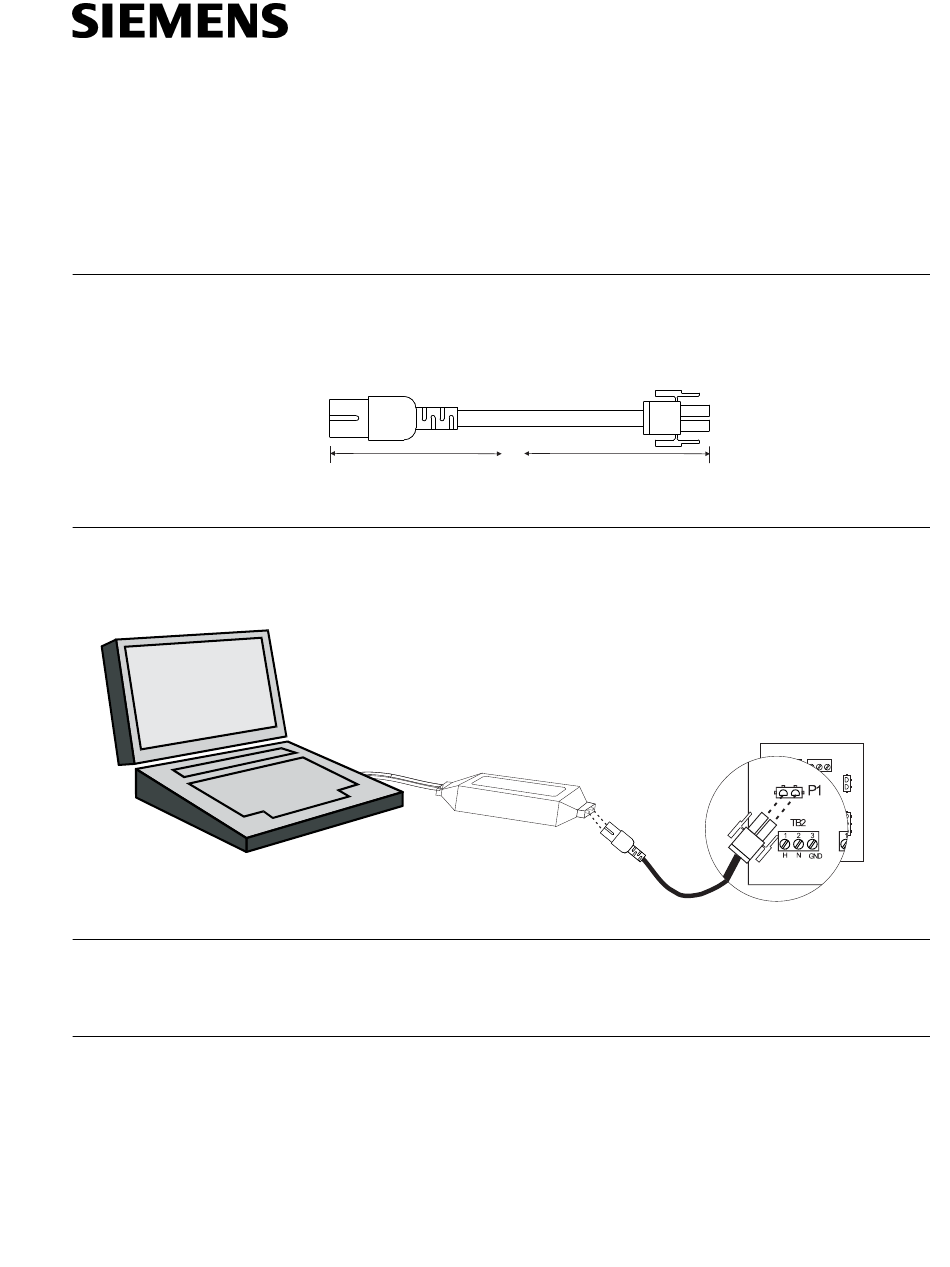

The Model AC-ADPT Adapter from Siemens Industry, Inc., as shown in Figure 1, is
used to connect a notebook or laptop computer to the system power supply.
Black Plug Connects
To External Power Supply
Of Notebook Computer
Figure 1
AC-ADPT Adapter Cable
Refer to Figure 2.
1.
Insert the white plug into P1 on the PTB Power Termination Board.
2.
Insert the black plug into the external power supply/adapter of the notebook
or laptop computer.
3.
Turn on power to computer.
Figure 2
Connecting The AC-ADPT Adapter Cable
The AC-ADPT Adapter can only be used to connect a notebook or laptop computer to
the system power supply.
The AC-ADPT is 6 ft. in length.
P1 of PTB: 120VAC, 60Hz
White Plug
Connects
To PTB, P1
6 ft.
Building Technologies Division
PTB
1
2
3
1
2
3
P3
H
N
GND
H
N
GND
TB3
TB4
P1
P2
TB2
TB1
1
2
3
1
2
3
H
N
H
N
GND
GND
Siemens Industry, Inc.
