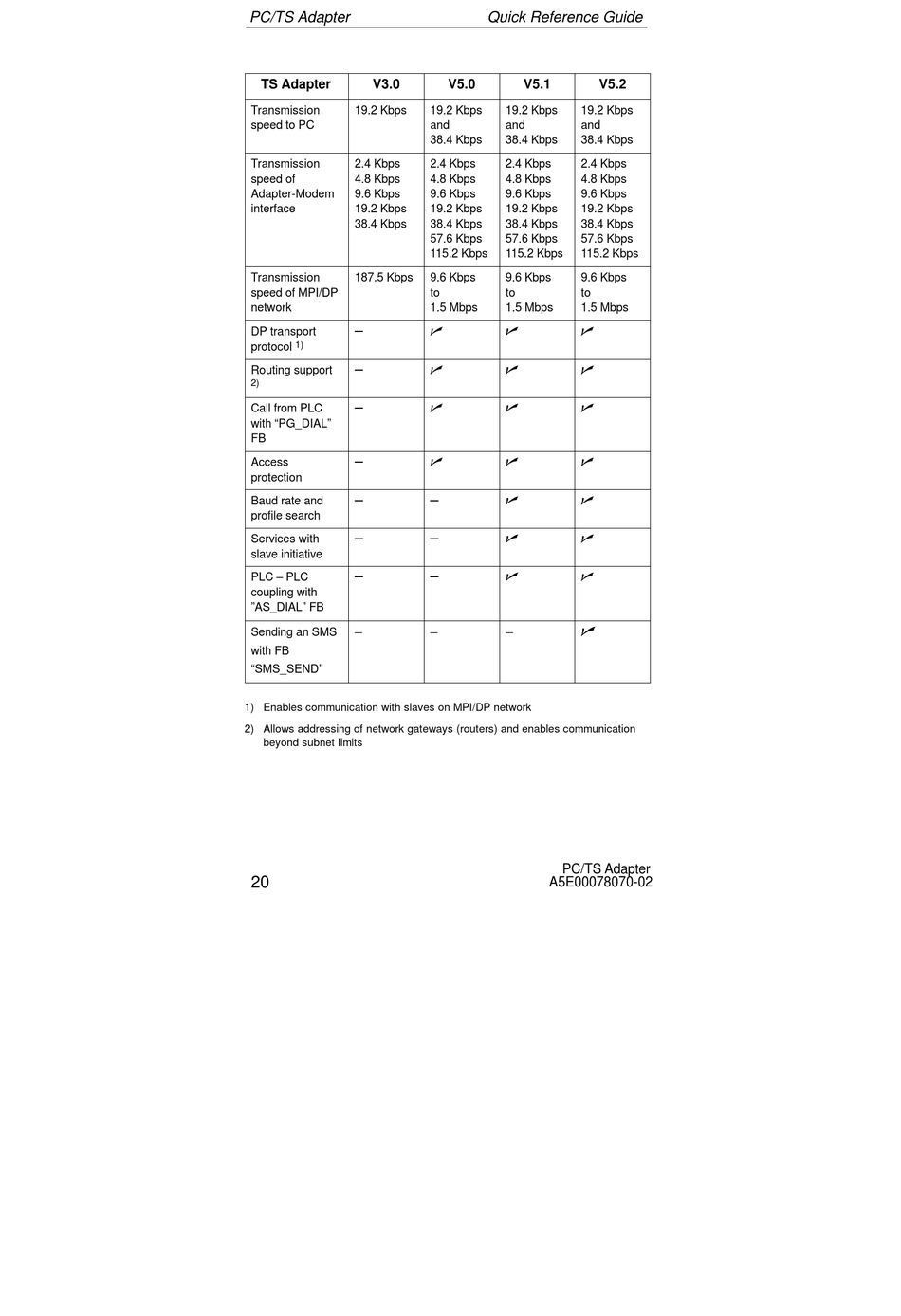

PC/TS Adapter
TS Adapter
V3.0
Transmission
19.2 Kbps
speed to PC
Transmission
2.4 Kbps
speed of
4.8 Kbps
Adapter-Modem
9.6 Kbps
interface
19.2 Kbps
38.4 Kbps
Transmission
187.5 Kbps
speed of MPI/DP
network
DP transport
1)
protocol
Routing support
2)
Call from PLC
with "PG_DIAL"
FB
Access
protection
Baud rate and
profile search
Services with
slave initiative
PLC – PLC
coupling with
"AS_DIAL" FB
Sending an SMS
with FB
"SMS_SEND"
1) Enables communication with slaves on MPI/DP network
2) Allows addressing of network gateways (routers) and enables communication
beyond subnet limits
20
Quick Reference Guide
V5.0
V5.1
19.2 Kbps
19.2 Kbps
19.2 Kbps
and
and
and
38.4 Kbps
38.4 Kbps
38.4 Kbps
2.4 Kbps
2.4 Kbps
2.4 Kbps
4.8 Kbps
4.8 Kbps
4.8 Kbps
9.6 Kbps
9.6 Kbps
9.6 Kbps
19.2 Kbps
19.2 Kbps
19.2 Kbps
38.4 Kbps
38.4 Kbps
38.4 Kbps
57.6 Kbps
57.6 Kbps
57.6 Kbps
115.2 Kbps
115.2 Kbps
115.2 Kbps
9.6 Kbps
9.6 Kbps
9.6 Kbps
to
to
to
1.5 Mbps
1.5 Mbps
1.5 Mbps
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
PC/TS Adapter
A5E00078070-02
V5.2
