Quick Reference Guide
6.4

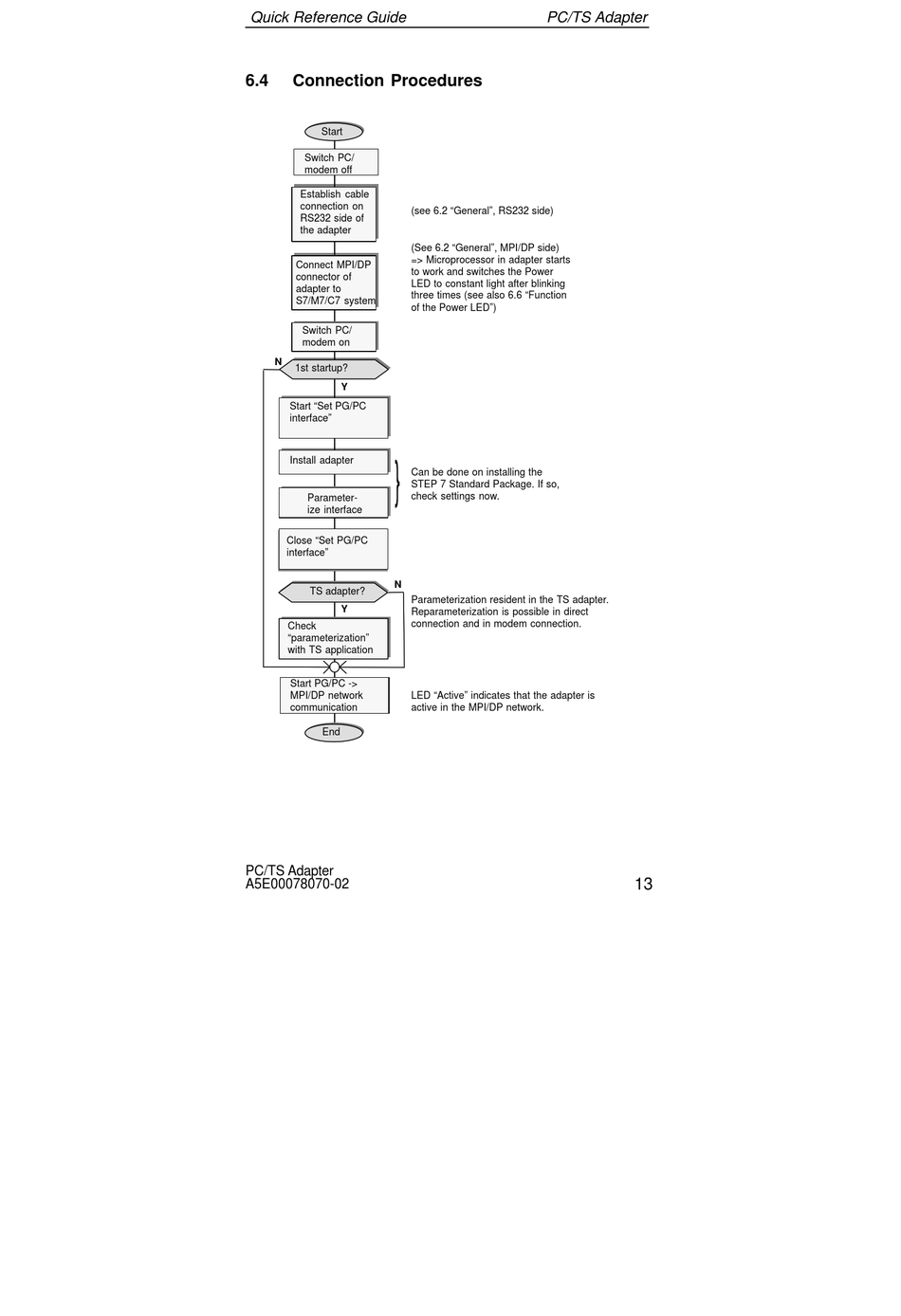

Connection Procedures

Start
Switch PC/
modem off
Establish cable
connection on
(see 6.2 "General", RS232 side)
RS232 side of
the adapter
(See 6.2 "General", MPI/DP side)
=> Microprocessor in adapter starts
Connect MPI/DP
to work and switches the Power
connector of
LED to constant light after blinking
adapter to
three times (see also 6.6 "Function
S7/M7/C7 system
of the Power LED")
Switch PC/
modem on
N
1st startup?
Y
Start "Set PG/PC
interface"
Install adapter
Can be done on installing the
STEP 7 Standard Package. If so,
Adapter installieren
check settings now.
Parameter-
ize interface
Close "Set PG/PC
interface"
N
TS adapter?
Parameterization resident in the TS adapter.
Y
Reparameterization is possible in direct
connection and in modem connection.
Check
"parameterization"
with TS application
Start PG/PC ->
MPI/DP network
LED "Active" indicates that the adapter is
communication
active in the MPI/DP network.
End
PC/TS Adapter
A5E00078070-02
PC/TS Adapter
13
