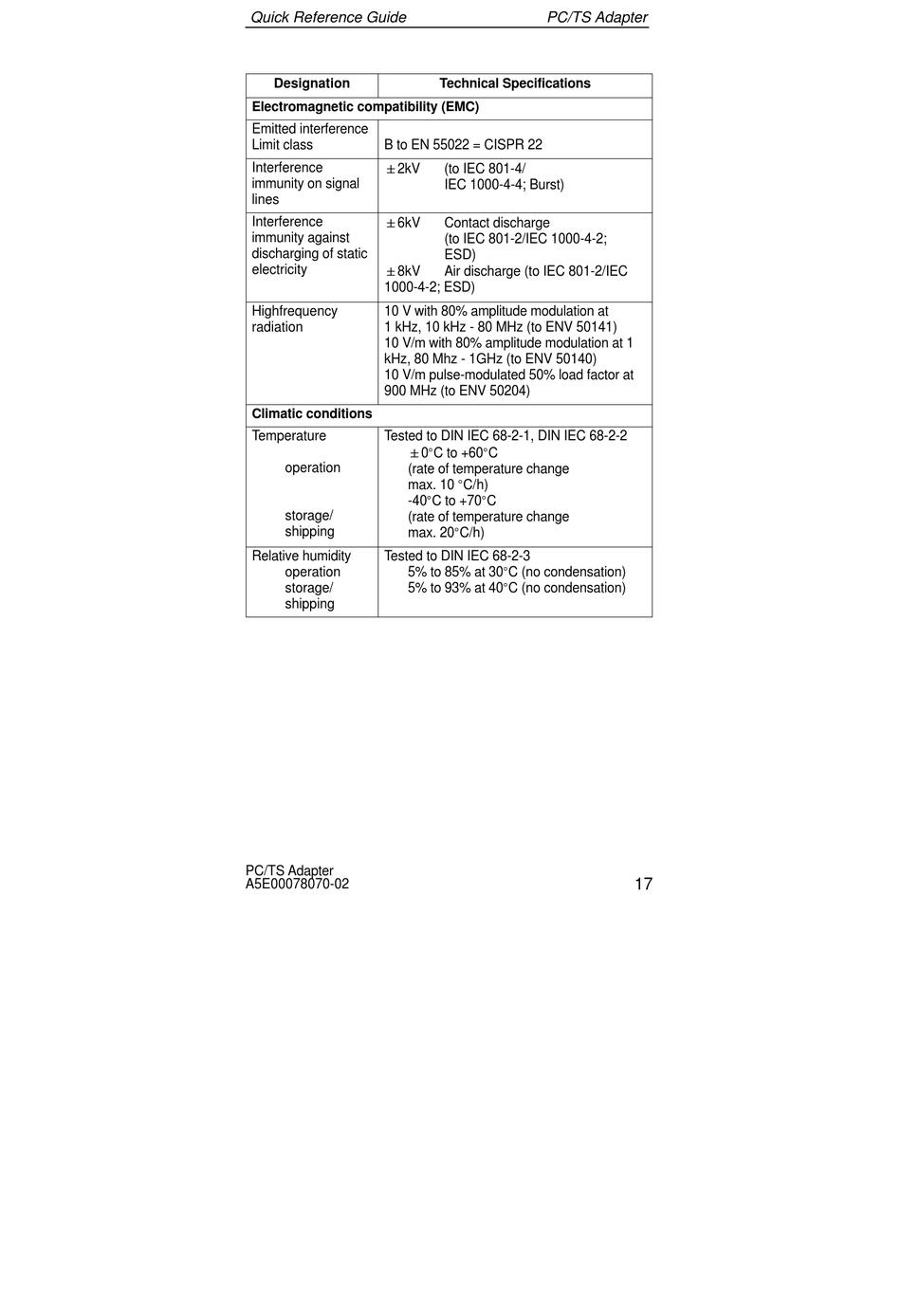

Quick Reference Guide
Designation
Electromagnetic compatibility (EMC)
Emitted interference
Limit class
B to EN 55022 = CISPR 22
"2kV
Interference
immunity on signal
lines
"6kV
Interference
immunity against
discharging of static
"8kV
electricity
1000-4-2; ESD)
Highfrequency
10 V with 80% amplitude modulation at
radiation
1 kHz, 10 kHz - 80 MHz (to ENV 50141)
10 V/m with 80% amplitude modulation at 1
kHz, 80 Mhz - 1GHz (to ENV 50140)
10 V/m pulse-modulated 50% load factor at
900 MHz (to ENV 50204)
Climatic conditions
Temperature
Tested to DIN IEC 68-2-1, DIN IEC 68-2-2
"0°C to +60°C
operation
(rate of temperature change
max. 10 °C/h)
-40°C to +70°C
storage/
(rate of temperature change
shipping
max. 20°C/h)
Relative humidity
Tested to DIN IEC 68-2-3
operation
5% to 85% at 30°C (no condensation)
storage/
5% to 93% at 40°C (no condensation)
shipping
PC/TS Adapter
A5E00078070-02
PC/TS Adapter
Technical Specifications
(to IEC 801-4/
IEC 1000-4-4; Burst)
Contact discharge
(to IEC 801-2/IEC 1000-4-2;
ESD)
Air discharge (to IEC 801-2/IEC
17
