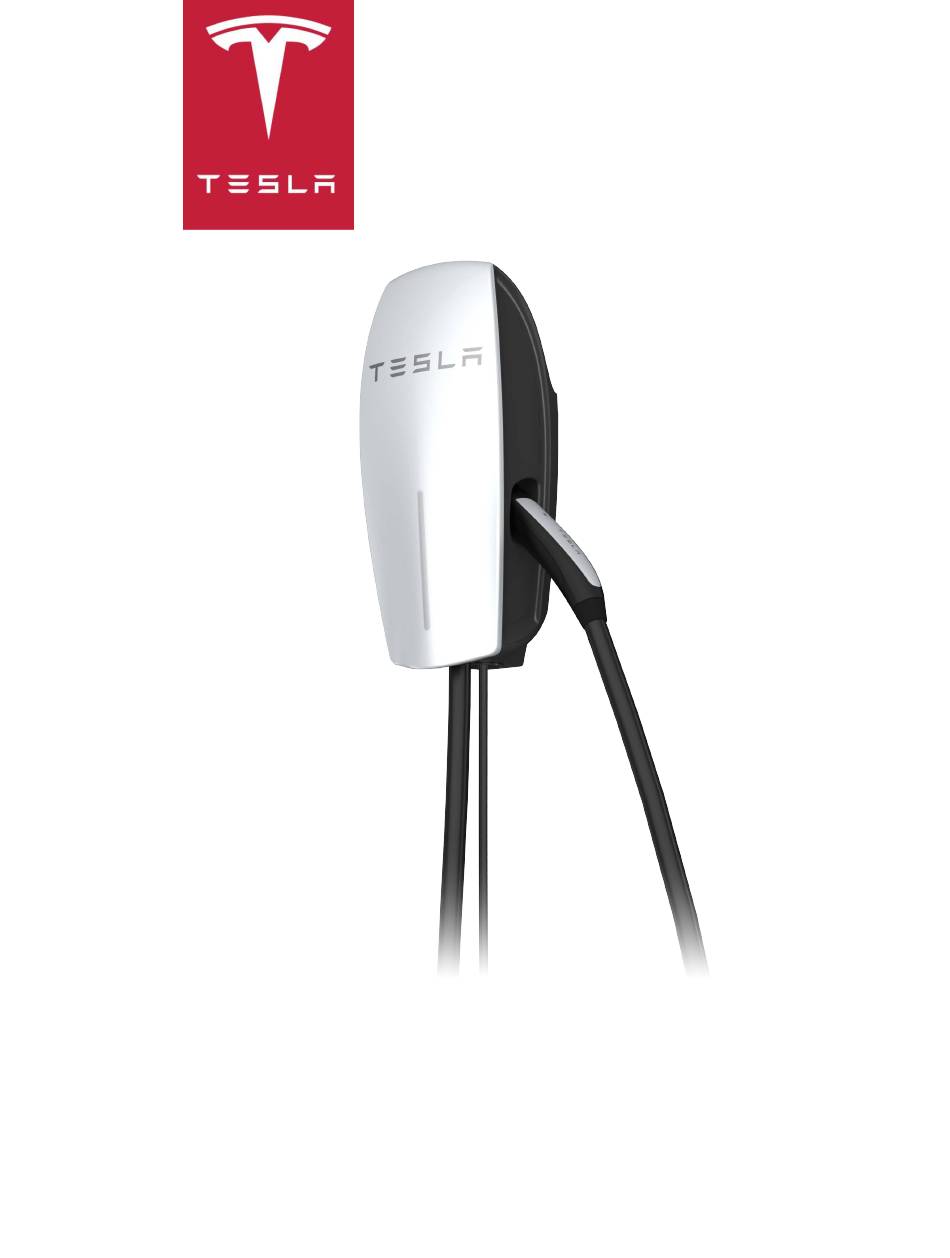

- Page 1 WALL CONNECTOR, NEMA 14-50 INSTALLATION MANUAL Approved Markets: North America...
-
Page 3: Table Of Contents
Contents Warranty Enforcement Laws and Dispute Resolution............ 17 About this Manual...... 2 Communications Regulations.........2 Errors or Inaccuracies..........2 Copyrights and Trademarks........2 Safety Information..... 3 Important Safety Instructions........ 3 Warnings.................3 Cautions................3 Notes................4 Specifications......5 Features........6 Circuit Ratings..............6 Self-Monitoring and Recovery........6 Power Outages.............6 Planning Your Installation..7 Minimum Requirements.......... -
Page 4: About This Manual
Copyrights and Trademarks All information in this document is subject to copyright and other intellectual property rights of Tesla, Inc. and its licensors. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of Tesla, Inc. -
Page 5: Safety Information
Warning: Do not insert foreign objects installing and maintaining the Wall Connector. into any part of the Wall Connector. Warning: Use of the Wall Connector may Warnings affect or impair the operation of any... -
Page 6: Notes
Note: Do not use cleaning solvents to clean any of the Wall Connector’s components. The outside of the Wall Connector, the charging cable, and the connector end of the charging... -
Page 7: Specifications
Specifications The maximum power rating for the Wall Connector is 10 kW or 40A at 250V AC single phase power. Description Specifications Voltage and Wiring 208V or 240V AC single-phase: L1, L2, and earth Current Maximum output: 40A Frequency 50 to 60 Hz Cable Length 8.5' (2.6 m) and 24' (7.4 m) -
Page 8: Features
Features Circuit Ratings Power Outages If a power outage occurs, the Wall Connector Use a single-phase circuit rated for 50A automatically resumes charging when power single-phase to obtain the fastest charging. is restored. If the charging cable is plugged into the vehicle when power is restored, the... -
Page 9: Planning Your Installation
Planning Your Installation Minimum Requirements Installation of the Wall Connector requires that you: • Install an outlet per local electrical and construction codes. • Provide the outlet with adequate electrical service. • Control the outlet with an adequately sized breaker or fuse. -
Page 10: Check The Box Contents
Check the Box Contents The shipping box contains parts for all installation methods, as well as this manual. If any parts are damaged or missing, contact Tesla (refer to Questions? on page 15). Note: Not shown is the supplied cardboard template. -
Page 11: Step-By-Step Installation Instructions
Step-by-Step Installation Instructions Tools and Materials Required Before installing the Wall Connector, gather the following tools and materials: • Pencil or marker • Hole punch (optional, to push through cardboard template) • Phillips screwdriver • T20 security pin Torx driver •... -
Page 12: Installation
Use a level to ensure that the marks are perfectly vertical. • Space the holes 4.5" (114 mm) apart. Plug in the Wall Connector to the wall power outlet. • For U.S.A. installations, position the bracket so that the Wall Connector is located at a maximum of 60"... -
Page 13: Troubleshooting
(under 100°F or 38°C), contact Tesla. Streaming 2 flashes Charging current is If the Wall Connector lights applicable reduced due to high is hard-wired, make temperature sure it is not covered detected in the wall... - Page 14 Wall Connector. 3 flashes Input miswired: The power outlet has possibly Line and been incorrectly Neutral are installed. Consult your swapped.
- Page 15 A communication If possible, plug the minute retry error occurred vehicle into another (no limit on between the Wall Wall Connector or a retries) Connector and the Mobile Connector to vehicle. determine if the vehicle is able to communicate with other charging equipment.
-
Page 16: Reset
GREEN. This clears the fault message but does not reboot the Wall Connector. • In a rare situation, you might need to force the Wall Connector to reboot without recycling the input power. Hold the RESET button for five seconds. When the top light changes from RED to GREEN, release the RESET button. -
Page 17: Questions
Troubleshooting Questions? • United States and Canada: • charginginstallation@tesla.com • +1-650-681-6133 • Mexico: • charging_mx@tesla.com • +1-877-798-3752 Troubleshooting... -
Page 18: Charging Equipment Limited Warranty
• General appearance or damage to paint, included in the initial purchase and delivery of including chips, scratches, dents and a Tesla vehicle by Tesla is covered under the cracks; Basic Vehicle Limited Warranty section of the • Failure to contact Tesla upon discovery of... -
Page 19: Limits Of Liability
To the maximum extent otherwise) or otherwise at law or in equity, permissible under your local law, liability is even if Tesla is advised of the possibility of limited to the reasonable price for repair or such damages or such damages are replacement of the applicable Tesla connector reasonably foreseeable. - Page 20 NATIONAL CENTER FOR DISPUTE decision. SETTLEMENT (“NCDS”) P.O. Box 526 NCDS’s decision is binding on Tesla but not on Mt. Clemens, MI 48046 you. If you accept NCDS’s decision, Tesla will 1-866-629-3204 comply with the decision in a reasonable time...
- Page 21 Charging Equipment Limited Warranty The description provided above is only a brief summary of the dispute settlement program administered by NCDS. The dispute settlement program may be changed at any time without prior notice. Contact NCDS at the above listed address or phone number for the most current information concerning the dispute settlement program.
- Page 22 5 recovery from power outages 6 temperature limits 5 self-monitoring and recovery 6 temperature limits 5 installation Tesla, contacting 15 for rear or bottom entry wiring 10 trademarks 2 information, about 2 troubleshooting 11, 14, 15 planning your 7...
- Page 24 P/N: 1107723-00-A MANUAL, WALLCONNECTOR,14-50 (P) PN:1107723-00-A (T) TLN:TT1450...
