- Page 1 X – POWER REGENERATOR USERMANUAL Powered by User Manual...
-
Page 2: Table Of Contents
X – POWER REGENERATOR USERMANUAL Powered by Table of Contents 1. WELCOME LETTER AND INTRODUCTION 2. 4 IN 1 X-POWER REGENERATOR MACHINE SPECIFICATIONS & FEATURES 3. PRE-INSTALLATION REQUIREMENTS FOR MACHINE INSTALLATION 4. WIRING & ELECTRICAL CONNECTION LAYOUT 5. MACHINE INSTALLATION & CALIBRATION 6. -
Page 3: Welcome Letter And Introduction

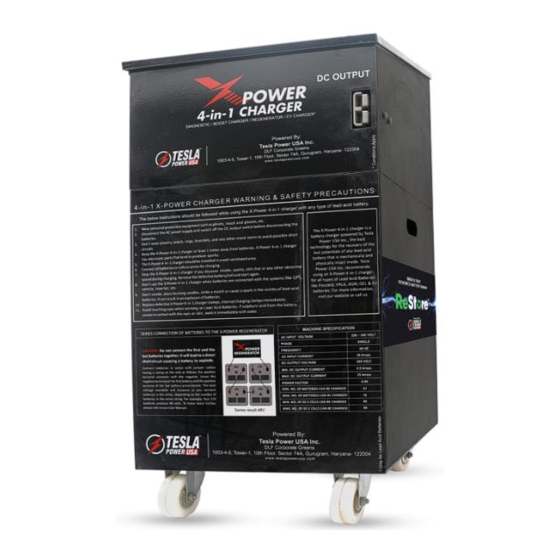

Congratulations and welcome to the world of ReStore - India’s first renewed battery brand, powered by Tesla Power India Private Limited. We are thrilled to have you as our valued customer and proud owner of our X Power Regenerator 4-in-1 Charger. -
Page 4: In 1 X-Power Regenerator Machine Specifications & Features
X – POWER REGENERATOR USERMANUAL Powered by 2. 4 IN 1 X-POWER REGENERATOR MACHINE SPECIFICATIONS & FEATURES Before using this X-Power Regenerator machine read this User Manual carefully and follow the machine installation instructions and operating procedure. Company doesn’t recommend to install & use the machine without training by Trainer of the Company. -
Page 5: Pre-Installation Requirements For Machine Installation
X – POWER REGENERATOR USERMANUAL Powered by 4. PRE-INSTALLATION REQUIREMENTS FOR MACHINE INSTALLATION PRE-INSTALLATION REQUIREMENTS FOR MACHINE INSTALLATION S.NO. ITEMS SPECIFICATION 10 Sq.mm copper wire from direct meter up to Wiring stabilizer/machine (Ground 4 Sq. mm. copper wire) Single Phase Phase Circuit Breaker (MCB) 63 Ampere... -
Page 6: Wiring & Electrical Connection Layout
X – POWER REGENERATOR USERMANUAL Powered by 5. WIRING & ELECTRICAL CONNECTION LAYOUT There should be direct connection from meter to Stabilizer with 10 sq.mm copper wire. For Connection, please refer below diagram:... -
Page 7: Machine Installation & Calibration
OFF and batteries are not connected. • The electrician should check the pre-installation requirement, for any query, he should connect with technical support team of Tesla WARNING! Air extractors must be installed in the machine room to take out the hydrogen and oxygen gases coming from the batteries. - Page 8 Set the Multi meter to AC Voltage function. Place the Multi meter probes on the AC two pole MCB. • Check the AC voltage on X power Regenerator display. • Set the value by using Potentiometer marked with “V “as per requirement. The display reading...
-
Page 9: Precautions For Operating The Machine
X – POWER REGENERATOR USERMANUAL Powered by 7. PRECAUTIONS FOR OPERATING THE MACHINE (Print & Paste on the Wall near Machine) Prior to operation ensure that the machine has been installed correctly as outlined in Electrical Connection of this manual. Failure to do so can result in damage to the machine which can void the warranty. -
Page 10: Machine Operating Instructions
X – POWER REGENERATOR USERMANUAL Powered by 9. MACHINE OPERATING INSTRUCTIONS After installation check the input AC that should be in the range of 220 to 240 Volt. ● MAIN MCB BREAKER: --Switch “ON”AC MCB mounted on back side of the machine cabinet. ●... -
Page 11: Control Panel
X – POWER REGENERATOR USERMANUAL Powered by Machine’s Control Panel The Operating Control Panel located on the top of the machine as display with membrane push buttons. It consists of the following: - ● POWER ON/OFF BUTTON: Power ON/OFF Switch. ●... -
Page 12: Machine Functions
X – POWER REGENERATOR USERMANUAL Powered by MACHINE FUNCTIONS The machine contains following mode of functions: - ● Diagnostic ● Resonance ● Cranking ● Deep Cycle ● Telecom Identification of the Display Areas The GLCD screen on the Control Panel provides an operator interface with the machine. You can use the GLCD screen and the push buttons to: Set the charge function View machine parameter... - Page 13 Powered by B. DIAGNOSTIC The diagnostic test is a 4 in 1 X power Regenerator machine function. It calculates the condition of the battery. The diagnostic also checks the integrity of the internal plates of the battery when are espoused to charging current. Every time when you use the DIAGNOSTIC function, the machine changes the battery condition.
- Page 14 X – POWER REGENERATOR USERMANUAL Powered by Diagnostic End Report Table DIAGNOSTIC END REPORT VARIABLES VARIABLES DESCRIPTION END REPORT EXAMPLE Machine Voltage - Battery open circuit voltage after diagnosis of the battery 12.15 V (please don’t match this voltage with multi meter reading BAT_OCV Measured as it will show different reading from multi meter)
- Page 15 X – POWER REGENERATOR USERMANUAL Powered by Machine Functions in Detail RESONANCE CHARGE MODE: The RESONANCE CHARGE is a constant current charge function. It is designed for any Type / Capacity battery and for any charge proposal. You can reach the RESONANCE CHARGE by pressing Charge Menu and select RESONANCE mode.
- Page 16 X – POWER REGENERATOR USERMANUAL Powered by On machine running mode you will get the below screen. After completion of charging, the status on screen will change from charging to Charging Completed and you will get the below screen...
- Page 17 X – POWER REGENERATOR USERMANUAL Powered by DESULFATOR MACHINE SUB FUNCTIONS: SUB- DESCRIPTION SCREEN RUNNING SCREEN FUNCTION It Is the default STAGE CHARGE function. It is designed for Cranking batteries, basically from 32 Ah up to 180 Ah to refresh charge and recharging of batteries Battery Type: - Operator needs to set the range of battery type (like...
-
Page 18: Troubleshooting Of Machine
X – POWER REGENERATOR USERMANUAL Powered by 10. TROUBLESHOOTING OF MACHINE S. No. Problems Causes Solutions Bad Battery Check the battery AC/DC Voltage, Current Variation Potentiometer Off-Set Need to be calibrations All connections with Junction Loose connection box should be proper and tight. Check voltage fluctuation MCB Trip ON/OFF Switch bad... - Page 19 7) Invoice Issued By Warranty: The Tesla Power 4 IN 1 X-Power Regenerator is warranted for a period of 36 (Thirty-Six) Months from the date of purchase Invoice. Any defective parts will be repaired by the company’s authorized service engineer only. PLEASE REGISTER FOR WARRANTY ON www.restorebattery.in/xchargerwarranty.
- Page 20 X – POWER REGENERATOR USERMANUAL Powered by Thank You...
