Tesla Wall Connector Gen 3 Manual

Gen 3 Wall Connector Manual

48A Single Phase

Table of Contents

Need help?

Do you have a question about the Wall Connector Gen 3 and is the answer not in the manual?

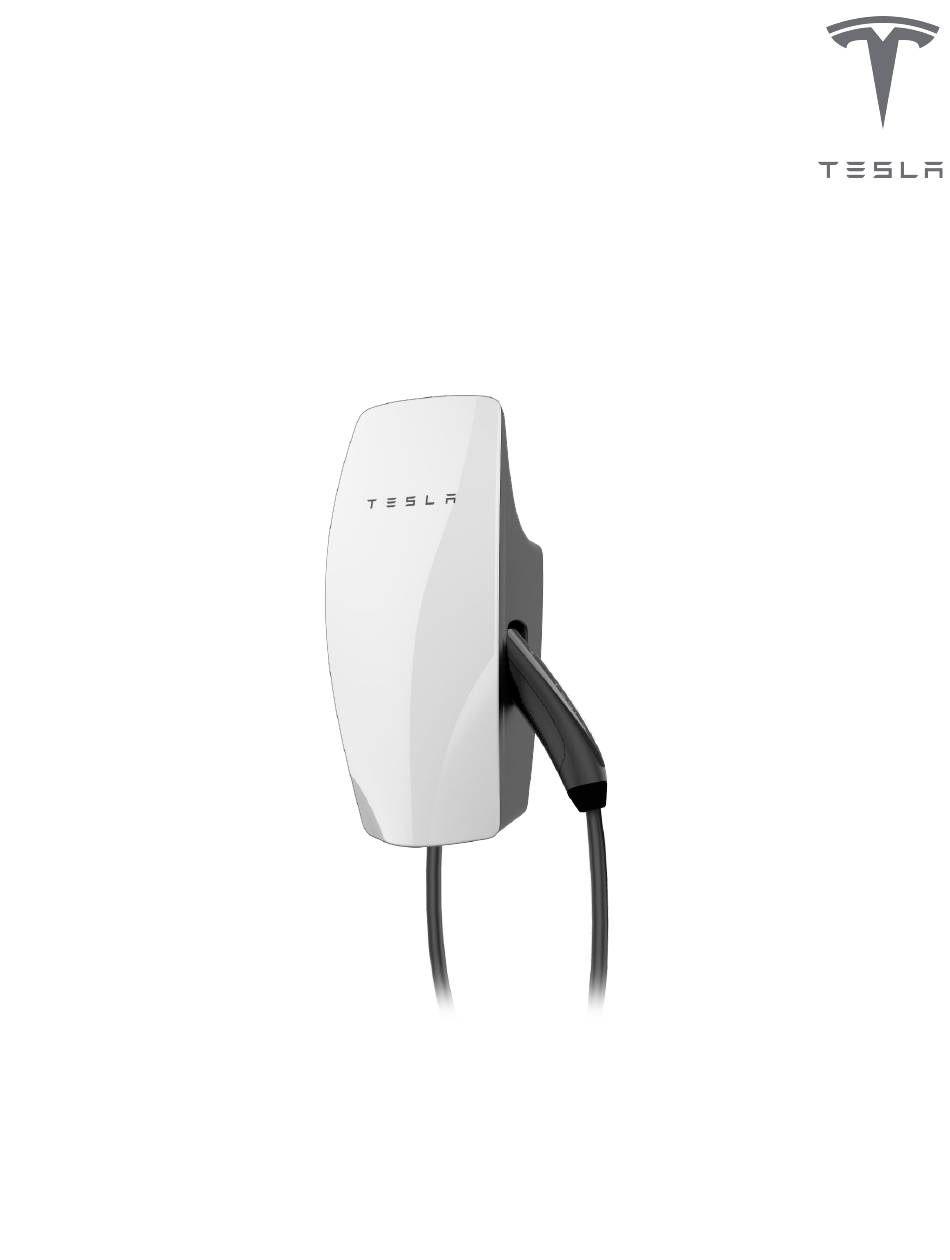

Page 1 Gen 3 Wall Connector Manual 48A Single Phase...
Page 2 PRODUCT OVERVIEW This manual applies to Wall Connectors identified by part number 1457768-**-*. Product Specifications Voltage and Wiring Nominal 200-240 V AC single-phase Current Output Range 12 – 48 amps Terminal Blocks 12-4 AWG (3.5 - 25 mm ), copper only ¾"...
Page 3 Commissioning Procedure on page 22 for details. NOTE: Some Tesla vehicles may draw less current than the max output. Actual charging rate depends on Wall Connector output and onboard charger in the vehicle. Branch Circuit Conductors and Ground Wire • If installing for less than maximum power, refer to local electrical code to select correct conductors and ground wire size that are suitable for the chosen circuit breaker.
Page 4 PRODUCT OVERVIEW Using Wall Connector 1. Open the vehicle charge port by pressing the button on the charging handle, pressing on the charge port door, using the mobile app, or using the vehicle touchscreen. 2. Insert the charging handle into the vehicle charge port. 3.
Page 5 INSTALLATION In the Box Hex Bit (4 mm) Wirebox Mounting Main Unit Wirebox Template Wall Connector-to- Wirebox-to-Wall Wirebox Fastener Fastener (x2) Zip tie (x1) (x4) Quickstart Guide (contains sticker with SSID network name and unique password) SAVE THIS DOCUMENT Gen 3 Wall Connector Manual...
