Page 1: Table Of Contents
Installation Instructions 1732E ArmorBlock 2 Port Ethernet Module Catalog Numbers 1732E-IB16M12R, 1732E-OB16M12R, 1732E-IB16M12DR, 1732E-OB16M12DR, 1732E-16CFGM12R, 1732E-IB16M12SOEDR, 1732E-8X8M12DR Topic Page Important User Information Environment and Enclosure Prevent Electrostatic Discharge About the ArmorBlock 2 Port Ethernet Module Catalog Number Explanation Install the Module Set the Network Address Mount the Module Product Dimensions... -
Page 2: Important User Information
2 1732E ArmorBlock 2 Port Ethernet Module Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://literature.rockwellautomation.com) describes some important differences between solid state equipment and hard-wired electromechanical devices. -
Page 3: Environment And Enclosure
1732E ArmorBlock 2 Port Ethernet Module 3 Environment and Enclosure Follow these guidelines for environment and enclosure information for this equipment. This equipment is intended for use in overvoltage Category II applications (as ATTENTION defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. -
Page 4: About The Armorblock 2 Port Ethernet Module

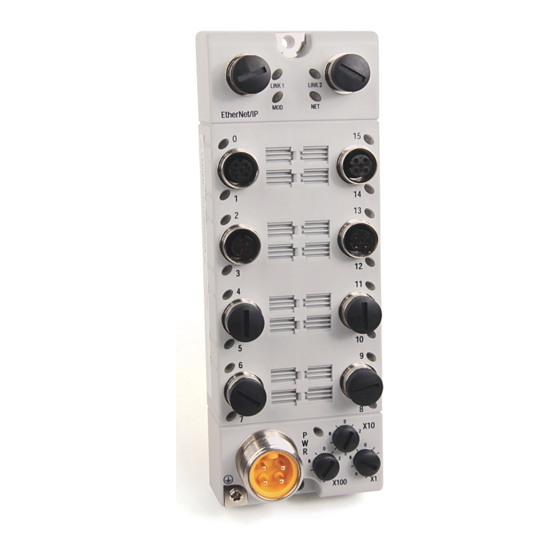

4 1732E ArmorBlock 2 Port Ethernet Module About the ArmorBlock 2 Port Ethernet Module The EtherNet/IP ArmorBlock is a 24V DC I/O module that communicates via EtherNet/IP. The sealed IP65, IP67 and IP69K housing of these modules requires no enclosure. Note that environmental requirements other than IP65, IP67 and IP69K may require an additional appropriate enclosure. -
Page 5: Catalog Number Explanation
1732E ArmorBlock 2 Port Ethernet Module 5 Catalog Number Explanation Refer to the table for a description of the modules’ catalog numbers. Cat. No. Description Network Auxiliary Connector Power 1732E-IB16M12R 16 Channel 24V DC Digital Input Dual-Port Dual D-Code Single 4-pin Ethernet Module mini 1732E-OB16M12R... -
Page 6: Set The Network Address
6 1732E ArmorBlock 2 Port Ethernet Module Set the Network Address The I/O block ships with the rotary switches set to 999 and DHCP enabled. To change the network address, you can do one of the following: • adjust the switches on the front of the module. •... -
Page 7: Mount The Module
1732E ArmorBlock 2 Port Ethernet Module 7 Mount the Module Two sets of mounting holes are used to mount the module directly to a panel or machine. Mounting holes accommodate #8 (M4) pan head screws. The torque specification is 1.13 Nm (10 in-lb). Product Dimensions Refer to the mounting dimensions illustration to help you mount the modules. -
Page 8: Connect The I/O, Network And Auxiliary Cables To The Armorblock Module
8 1732E ArmorBlock 2 Port Ethernet Module Mount the Module in High Vibration Areas If you mount the module in an area that is subject to shock or vibration, we recommend you use a flat and a lock washer to mount the module. Mount the flat and the lock washer as shown in the mounting illustration. - Page 9 1732E ArmorBlock 2 Port Ethernet Module 9 Micro-style 5-Pin Output Female Connector (View into connector) Pin 1 Not used Pin 2 Output B Pin 3 Return Pin 4 Output A Pin 5 PE 44807 Self-configuring Connector (View into connector) Pin 1 Sensor source voltage Pin 2 Input or output B Pin 3 Return Pin 4 Input or output A...
- Page 10 10 1732E ArmorBlock 2 Port Ethernet Module Use two twisted pair CAT5E UTP or STP cables. IMPORTANT D-Code Wire Color Signal 8-way Modular M12 Pin RJ45 Pin White-Orange White-Green Orange Green The 1732E-16CFGM12R self-configuring module contains both input and output functionality. •...
- Page 11 1732E ArmorBlock 2 Port Ethernet Module 11 Refer to the illustration for configuration operations. Configure Operations EtherNet/IP D-Code EtherNet/IP D-Code LINK 1 LINK 2 M12 connector M12 connector Module/network status LED indicators Eight M12 I/O connectors I/O status LED indicators Auxiliary power Network address switches 44945...
- Page 12 E-stop through the use of special E-stop drop or power T-ports and shorting plugs. Allen-Bradley E-stop T-ports and shorting plugs are red in color for easy identification.
-
Page 13: Interpret Led Indicators
1732E ArmorBlock 2 Port Ethernet Module 13 Interpret LED Indicators This module has the following indicators: • Network, Module, and Link status indicators for EtherNet/IP • Auxiliary Power indicator • Individual I/O status indicators for inputs and outputs Link Link status status indicator... - Page 14 14 1732E ArmorBlock 2 Port Ethernet Module Indicator Status for Modules Status Description Network status The device is not initialized or the module does not have an IP address. Flashing green The device has no CIP connections. The device has an IP address, but no CIP connections are established.
-
Page 15: Specifications
1732E ArmorBlock 2 Port Ethernet Module 15 Specifications ArmorBlock 2 Port Ethernet Module Input – 1732E-8X8M12DR, 1732E-IB16M12R, 1732E-IB16M12DR, 1732E-IB16M12SOEDR, 1732E-16CFGM12R Attributes Value Number of inputs 8 – 1732E-8X8M12DR 16 – all other modules Input type Sink, 24V DC Voltage, off-state input, max 5V DC Voltage, on-state input, max 30V DC... - Page 16 16 1732E ArmorBlock 2 Port Ethernet Module ArmorBlock 2 Port Ethernet Module Output – 1732E-8X8M12DR, 1732E-OB16M12R, 1732E-OB16M12DR, 1732E-16CFGM12R Attributes Value Voltage, on-state output, min 11V DC Voltage, on-state output, nom 24V DC Current on-state output, max 2 A – 1732E-OB16M12R 0.5 A –...
- Page 17 1732E ArmorBlock 2 Port Ethernet Module 17 General Specifications Attributes Value LED indicators Module Status - red/green Network Status - red/green Link Status - green/yellow Auxiliary Power - green I/O LED - yellow I/O LED - yellow/red – 1732E-*DR modules only Dimensions (HxWxD), approx.
- Page 18 18 1732E ArmorBlock 2 Port Ethernet Module Environmental Specifications Attribute Value ESD immunity IEC 61000-4-2: 6 kV contact discharges 8 kV air discharges Radiated RF immunity IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 900 Mhz 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 Mhz 3V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz EFT/B immunity...
- Page 19 1732E ArmorBlock 2 Port Ethernet Module 19 Notes: Publication 1732E-IN004A-EN-E - November 2009...
- Page 20 Please contact your local Rockwell Automation representative for the return procedure. Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 1732E-IN004A-EN-E - November 2009...
