Installation Instructions
1732E ArmorBlock Dual-Port
EtherNet/IP 4-Point Analog Input and
Output Modules
Catalog Numbers 1732E-IF4M12R, 1732E-OF4M12R

Table of Contents

Topic
Page
2
3
3
4
6
6
6
8
8
10
14
16
19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1732E ArmorBlock Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allen-Bradley 1732E ArmorBlock Series

Summary of Contents for Allen-Bradley 1732E ArmorBlock Series

  • Page 1: Table Of Contents

    Installation Instructions 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input and Output Modules Catalog Numbers 1732E-IF4M12R, 1732E-OF4M12R Table of Contents Topic Page Important User Information Environment and Enclosure Preventing Electrostatic Discharge Overview Catalog Number Explanation Install the Module Set the Network Address Mount the Module Product Dimensions Connect the I/O, Network and Auxiliary Cables to the Module...

  • Page 2: Important User Information

    2 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input and Output Modules Important User Information Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/) describes some important differences between solid-state equipment and hard-wired electromechanical devices.

  • Page 3: Environment And Enclosure

    1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input and Output Modules Environment and Enclosure ATTENTION: This equipment is intended for use in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11.

  • Page 4: Overview

    • download a free electronic version from the internet: http://rockwellautomation.com/literature. • purchase a printed manual by contacting your local Allen-Bradley distributor or Rockwell Automation representative Overview The EtherNet/IP ArmorBlock is a 24V DC I/O module that communicates via EtherNet/IP. The sealed IP65, IP67 and IP69K housing of these modules requires no enclosure.

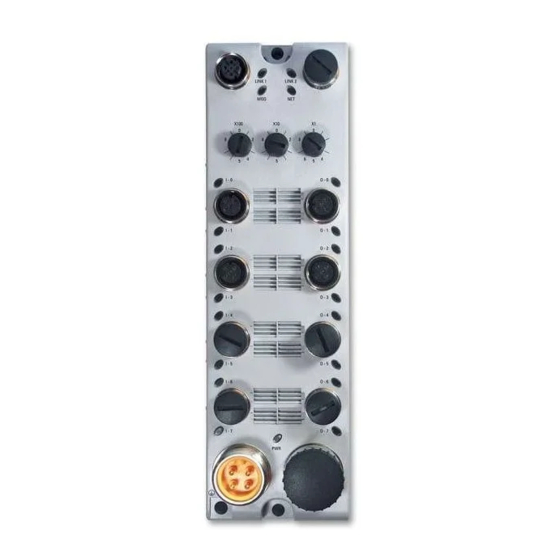

  • Page 5 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input and Output Modules Module Identification Function earth EtherNet/IP D-code EtherNet/IP D-code M12 connector M12 connector Link 1 status indicator Link 2 status indicator Module status indicator Network status indicator Node address switches I/O status indicators M12 style I/O connectors...
