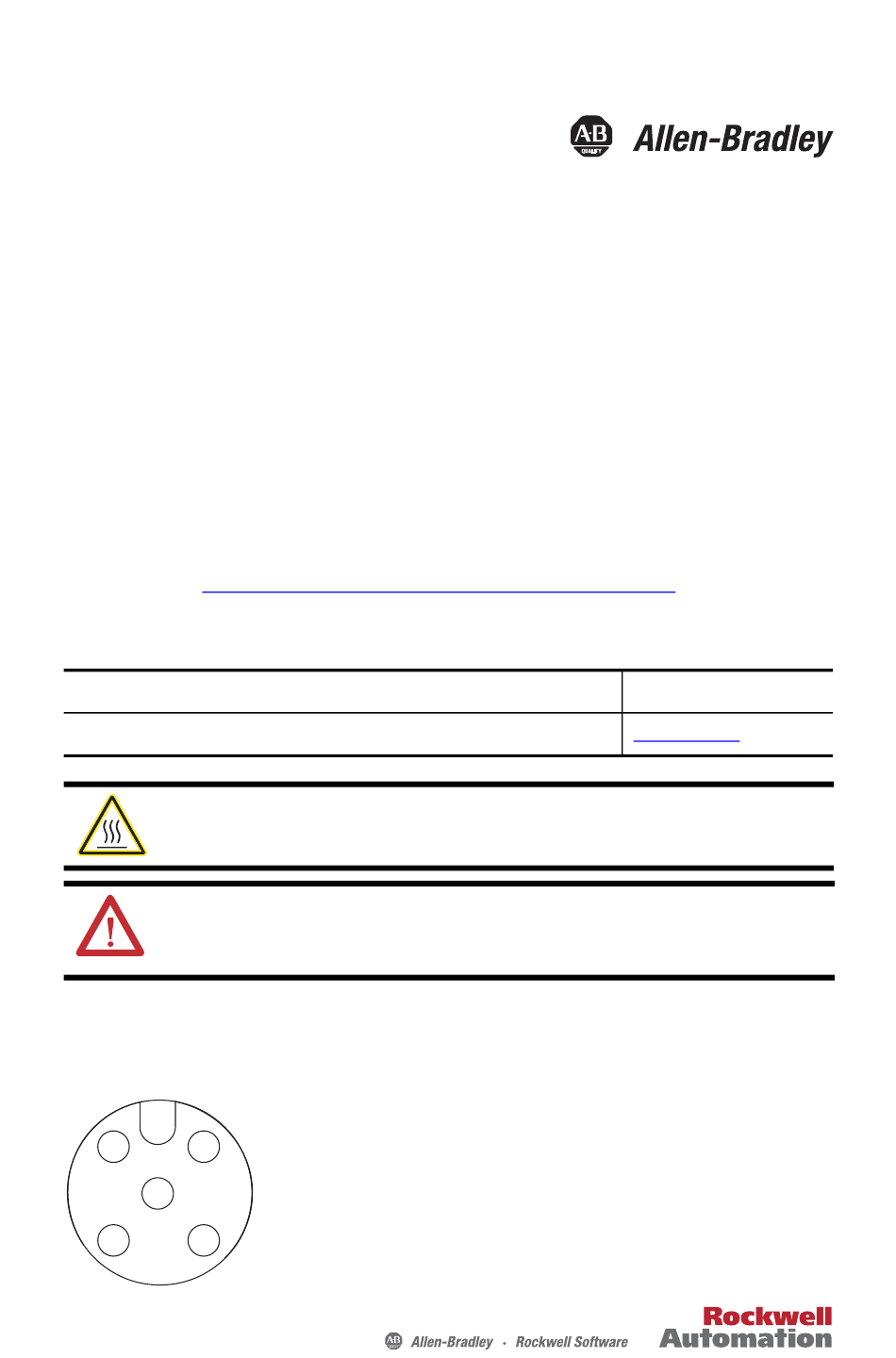

Wiring Diagrams

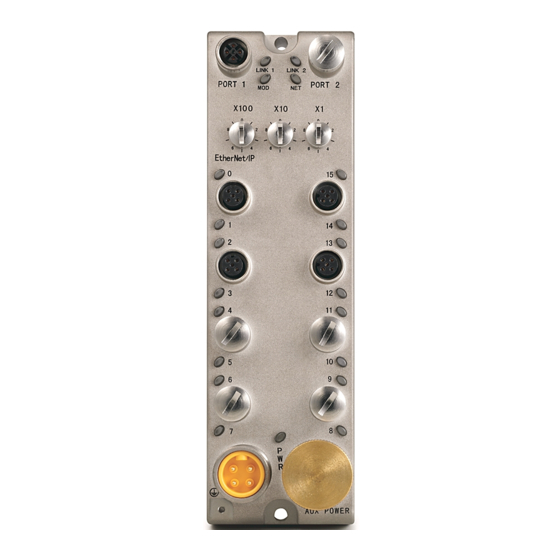

ArmorBlock WeldBlock 2-Port Ethernet
Self-configurable with QuickConnect
Catalog Numbers 1732E-16CFGM12QCWR, 1732E-16CFGM12P5QCWR
Parts List
Your package contains one 1732E ArmorBlock™ WeldBlock module and these
pinout guide wiring instructions.
For complete installation instructions, refer to the Module Publication Number
table and visit http://www.rockwellautomation.com/literature/.
Module Publication Number
Module
1732E ArmorBlock 2-Port Ethernet Modules with QuickConnect
WARNING: HOT SURFACE. RISK OF BURN.
ATTENTION: Two sets of mounting holes are used to mount the module
directly to a panel or machine. Mounting holes accommodate #8 (M4) pan
head screws. The torque specification is 1.13 Nm (10 lb-in.).
I/O Connectors
Micro-style 5-Pin Selectable Point Connector
1
2
5
4
3
44807
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input B or Output B
Pin 3 Return
Pin 4 Input A or Output A
Pin 5 PE
Publication Number
1732E-IN010
Advertisement
Table of Contents
Related Manuals for Allen-Bradley ArmorBlock Series
Summary of Contents for Allen-Bradley ArmorBlock Series
- Page 1 Wiring Diagrams ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect Catalog Numbers 1732E-16CFGM12QCWR, 1732E-16CFGM12P5QCWR Parts List Your package contains one 1732E ArmorBlock™ WeldBlock module and these pinout guide wiring instructions. For complete installation instructions, refer to the Module Publication Number table and visit http://www.rockwellautomation.com/literature/. Module Publication Number Module Publication Number...
- Page 2 2 ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect EtherNet/IP Connector D-Code Micro Network Female Connector (View into connector 1) (View into connector 2) Pin 1 M12_Tx+ Pin 1 M12_Rx+ Pin 2 M12_Rx+ Pin 2 M12_Tx+ Pin 3 M12_Tx- Pin 3 M12_Rx- Pin 4 M12_Rx- Pin 4 M12_Tx- Pin 5 Connector shell...
- Page 3 ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect 3 Specifications Environmental Specifications Attribute Value Temperature, operating IEC60068-2-1 (Test Ad, Operating Cold), IEC60068-2-2, (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20...60 °C (-4…140 °F) Temperature, ambient, max 60 °C (140 °F) Voltage, operating 12…30V DC...
- Page 4 Outside United States Please contact your local Rockwell Automation representative for the return procedure. Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 1732E-WD005C-EN-P - May 2013 PN-205442 Supersedes Publication 1732E-WD005B-EN-P - December 2011 Copyright ©...
