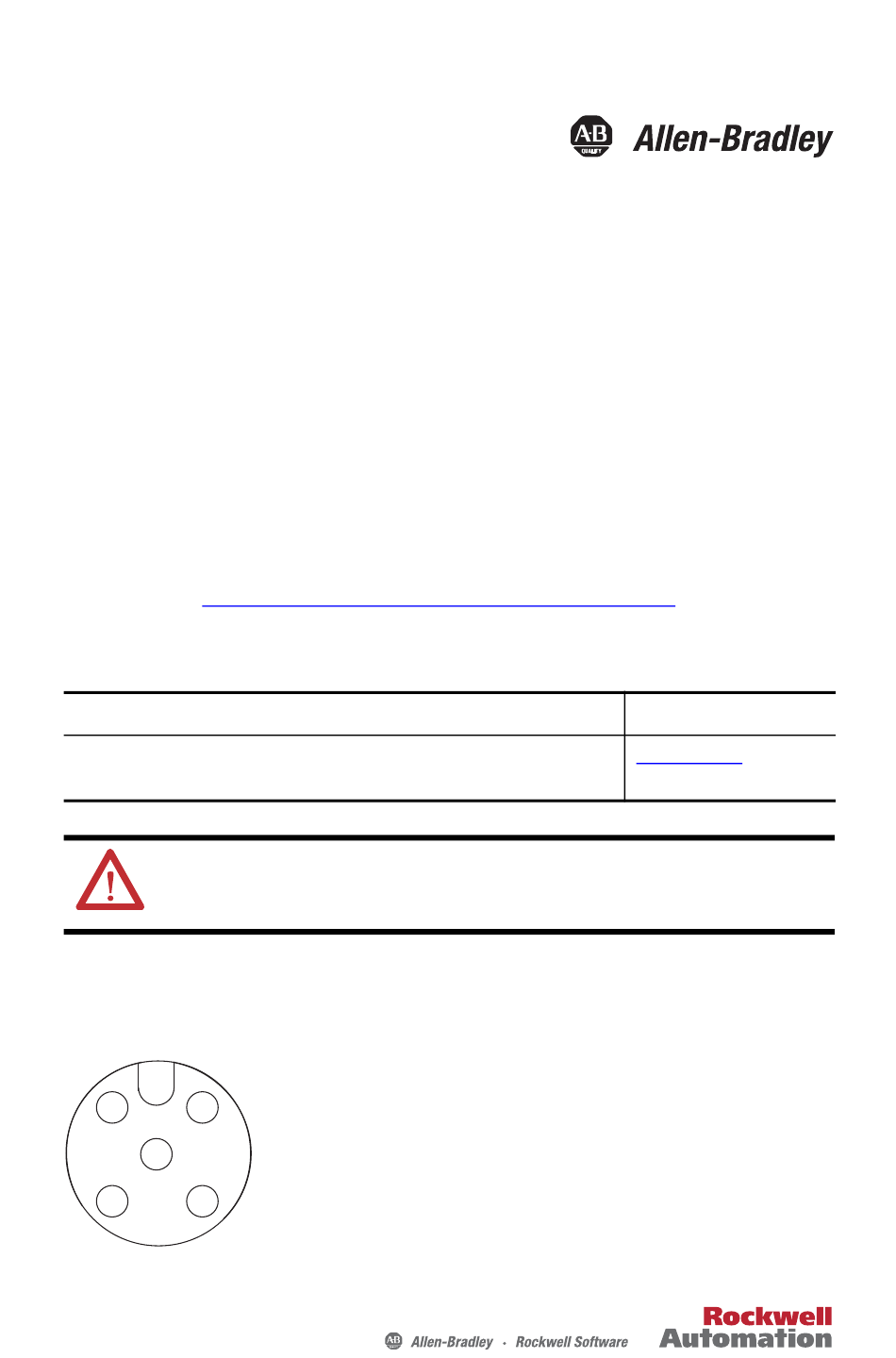

Wiring Diagrams
ArmorBlock 2-Port EtherNet with Diagnostics
and QuickConnect
Catalog Numbers 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR
Parts List
Your package contains one 1732E ArmorBlock™ module and these pinout guide
wiring instructions.
For complete installation instructions, refer to the Module Publication Number
table and visit http://www.rockwellautomation.com/literature/.
Module Publication Number
Module
1732E ArmorBlock 2-Port EtherNet/IP Modules
with QuickConnect
ATTENTION: Two sets of mounting holes are used to mount the module
directly to a panel or machine. Mounting holes accommodate #8 (M4) pan
head screws. The torque specification is 1.13 Nm (10 lb-in.).
I/O Connectors
Micro-style 5-Pin Input Female Connector
1
2
5
4
3
44807
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input B
Pin 3 Return
Pin 4 Input A
Pin 5 PE
Publication Number
1732E-IN010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Allen-Bradley ArmorBlock 1732E-12X4M12QCDR
Summary of Contents for Allen-Bradley ArmorBlock 1732E-12X4M12QCDR
-
Page 1: Wiring Diagrams
Wiring Diagrams ArmorBlock 2-Port EtherNet with Diagnostics and QuickConnect Catalog Numbers 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR Parts List Your package contains one 1732E ArmorBlock™ module and these pinout guide wiring instructions. For complete installation instructions, refer to the Module Publication Number table and visit http://www.rockwellautomation.com/literature/. Module Publication Number Module Publication Number... - Page 2 2 ArmorBlock 2-Port EtherNet with Diagnostics and QuickConnect Micro-style 5-Pin Output Female Connector (View into connector) Pin 1 Not used Pin 2 Output B Pin 3 Return Pin 4 Output A Pin 5 PE 44807 EtherNet/IP Connector D-Code Micro Network Female Connector (View into connector 1) (View into connector 2) Pin 1 M12_Tx+...
-
Page 3: Specifications
ArmorBlock 2-Port EtherNet with Diagnostics and QuickConnect 3 Specifications Environmental Specifications Attribute Value Temperature, operating IEC60068-2-1 (Test Ad, Operating Cold), IEC60068-2-2, (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20...60 °C (-4…140 °F) Temperature, ambient, max 60 °C (140 °F) Voltage, operating 12…30V DC... - Page 4 Outside United States Please contact your local Rockwell Automation representative for the return procedure. Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 1732E-WD004D-EN-P - October 2015...
