Wiring Diagrams

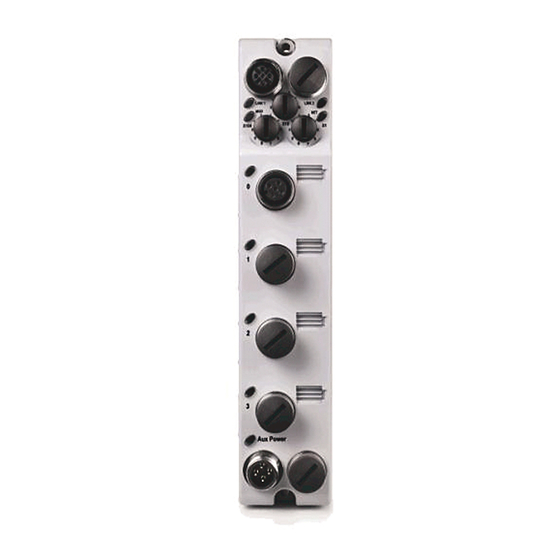

1732E ArmorBlock Dual-Port EtherNet/IP
4-Point Analog Modules
Catalog Numbers 1732E-IF4M12R, 1732E-OF4M12R, 1732E-IT4IM12R,
1732E-IR4IM12R
Parts List
Your package contains one 1732E ArmorBlock™ module and these pinout guide
wiring instructions.
For complete installation instructions, refer to the Module Publication Number
table and visit http://rockwellautomation.com/literature.
Module Publication Number
Module
1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input
and Output Modules (1732E-IF4M12R, 1732E-OF4M12R)
1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Thermocouple
and RTD Input Modules (1732E-IT4IM12R, 1732E-IR4IM12R)
ATTENTION: Two sets of mounting holes are used to mount the module
directly to a panel or machine. Mounting holes accommodate #6 (M3) pan
head screws. The torque specification is 0.68 Nm (6 lb-in.).
ATTENTION: To comply with the CE Low Voltage Directive (LVD), this
equipment and all connected I/O must be powered from a source compliant
with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low
Voltage (PELV).
ATTENTION: To comply with UL restrictions, this equipment must be
powered from a source compliant with the following: Limited
Voltage/Limited Current.
Publication Number
1732E-IN006
1732E-IN005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen-Bradley ArmorBlock 1732E Series
Summary of Contents for Allen-Bradley ArmorBlock 1732E Series
-
Page 1: Wiring Diagrams
Wiring Diagrams 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Modules Catalog Numbers 1732E-IF4M12R, 1732E-OF4M12R, 1732E-IT4IM12R, 1732E-IR4IM12R Parts List Your package contains one 1732E ArmorBlock™ module and these pinout guide wiring instructions. For complete installation instructions, refer to the Module Publication Number table and visit http://rockwellautomation.com/literature. - Page 2 2 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Modules I/O Connectors Pinout Guide Micro-style M12 5-Pin Input Female Connector – 1732E-IF4M12R (View into connector) Pin 1 Current Input + Pin 2 Current Common Pin 3 Voltage Input + Pin 4 Voltage Common Pin 5 No Connect 45868 Micro-style M12 5-Pin Output Female Connector –...
-
Page 3: Specifications
1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Modules 3 Ethernet Connector Pinout Guide D-Code M12 Micro Network Female Connector (View into connector) Pin 1 Tx+ Pin 2 Rx+ Pin 3 Tx- Pin 4 Rx- Pin 5 Shell 44808 Power Connectors Pinout Guide Micro-style 4-Pin Input Male Receptacle Male Input Female Output... - Page 4 ATTENTION: The device does not provide bonding or grounding terminal. Customer shall provide own bonding or grounding. Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
