1-6 Before Using Your Phone

1.4 Telephone Power Supply

Before the telephone can be used, the AC adapter must be connected to the
telephone and the battery properly installed. The AC adapter must remain
connected at all times to the telephone. In case of a power failure, the
battery will supply power to the telephone. The length of time the battery
can supply power is determined by the telephone usage. (Stand-by vs. talk
time)

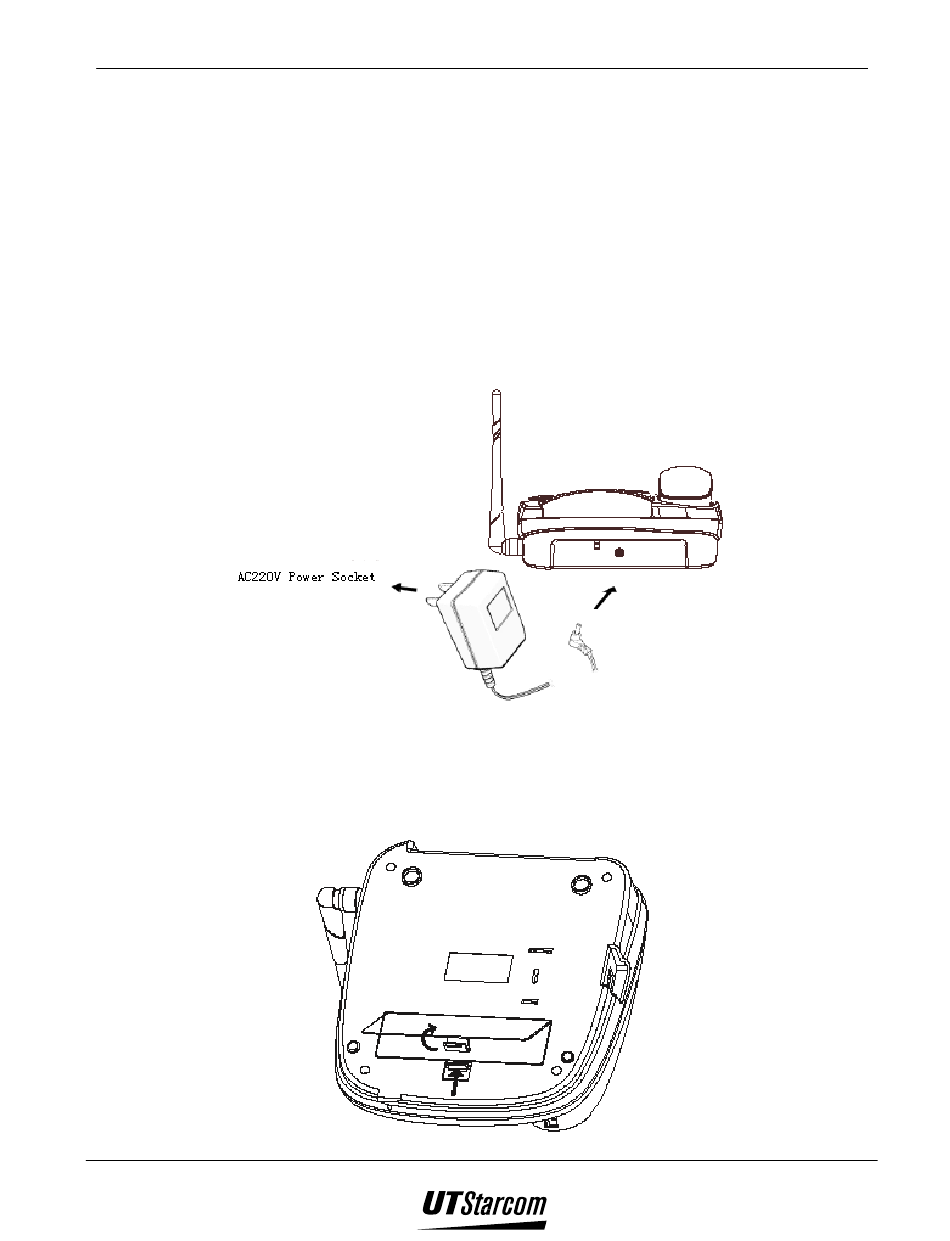

1.4.1 AC Adapter Connection Connecting the AC Adapter:

1. Insert the AC adapter plug into the adapter jack into the base of the
2. Plug the AC adapter into an AC wall outlet.

1.4.2 Battery Installation

1. Remove battery cover by pressing tab and then lifting.
telephone.
801 (FSU) User Manual
