RS-232 Control Port
3-Pin Terminal Block
›
Pin out:
›
Pin 1 = RS-232 Tx Data
»
Pin 2 = RS-232 Ground
»
Ping 3 = RS-232Rx Data
»
Default baud rate is 57,600
›

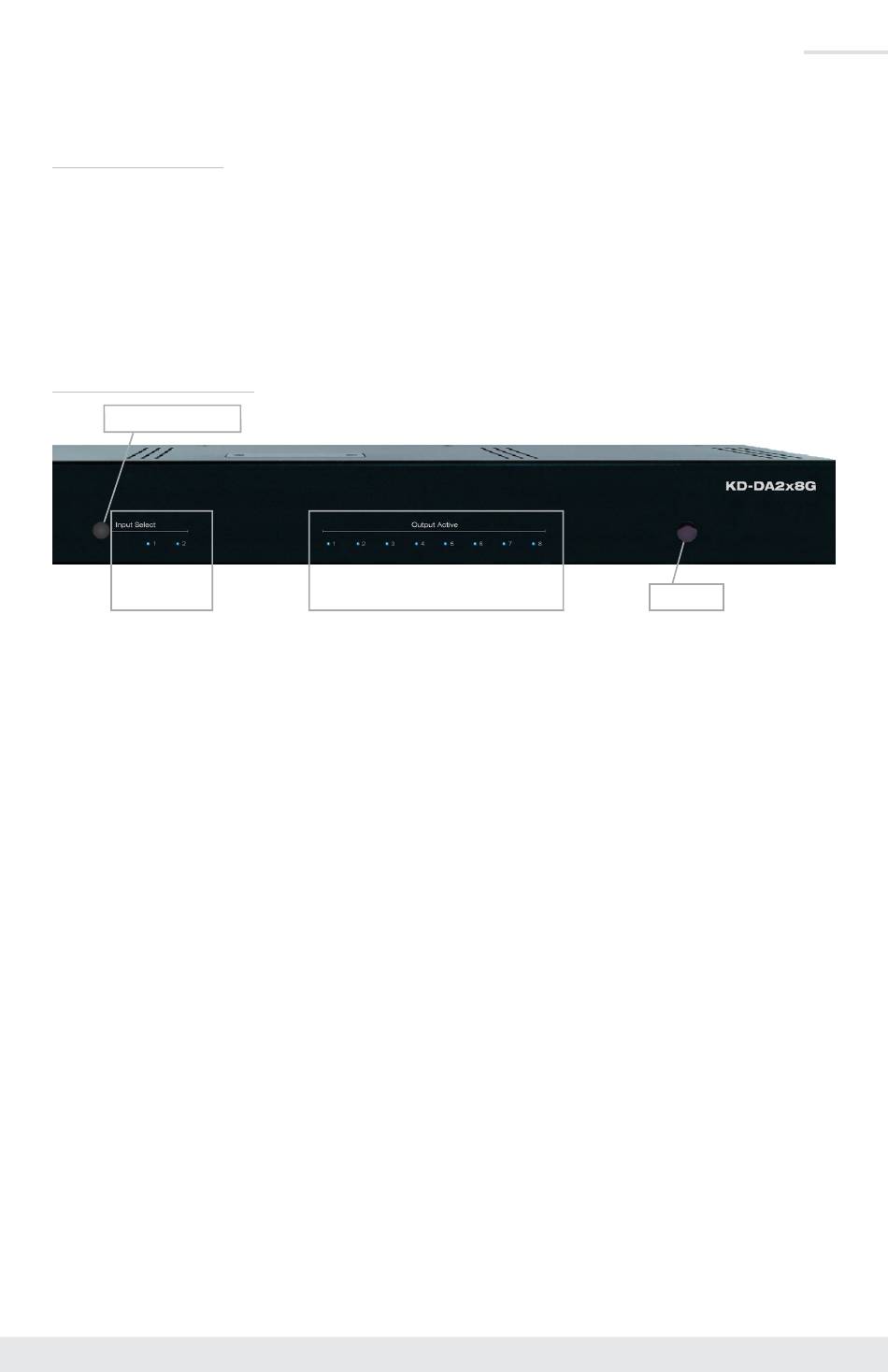

Front Buttons and LEDs
Input Select Button
Input LEDs
IR Control Sensor
›
For collecting IR commands from included remote, or a mounted IR emitter from a control system
»
Input Select button
›
Used to choose which of the two connected sources will be distributed to all connected outputs
»
Will also turn on any outputs that have been turned off
»
Input Select LEDs
›
Illuminated solid when respective input is selected and source signal is present
»
Blinks once per second if input is selected but source signal is not detected
»
Front button control can be disabled/enabled via serial control if desired .
»
Press and hold for 10 seconds to reset the unit to factory default (including default network settings) .
»
Output Active LEDs
›
Illuminated solid with active HDBaseT link and hot plug detection received from connected display
»
Blinks once per second when the output has been turned off in the KD-DA2x4G/KD-DA2x8G unit
»
All LEDs ramp from left to right during unit boot up process.
›
Output LEDs
IR Sensor
7
