6
IR
Main Unit IR In corresponds with Rx unit IR Out . Main Unit IR Out corresponds with Rx unit IR In .
›
Rx Unit IR In corresponds with Main unit IR Out . Rx Unit IR Out corresponds with Main unit IR In .
›
Ground pin is shared if using both channels of IR
›
RS-232
Connect a stripped wire to DB9 adapter cable for bi-directional RS-232 control .
Supports baud rate up to 115,200bps
»
Refer to the "Extending IR or RS-232

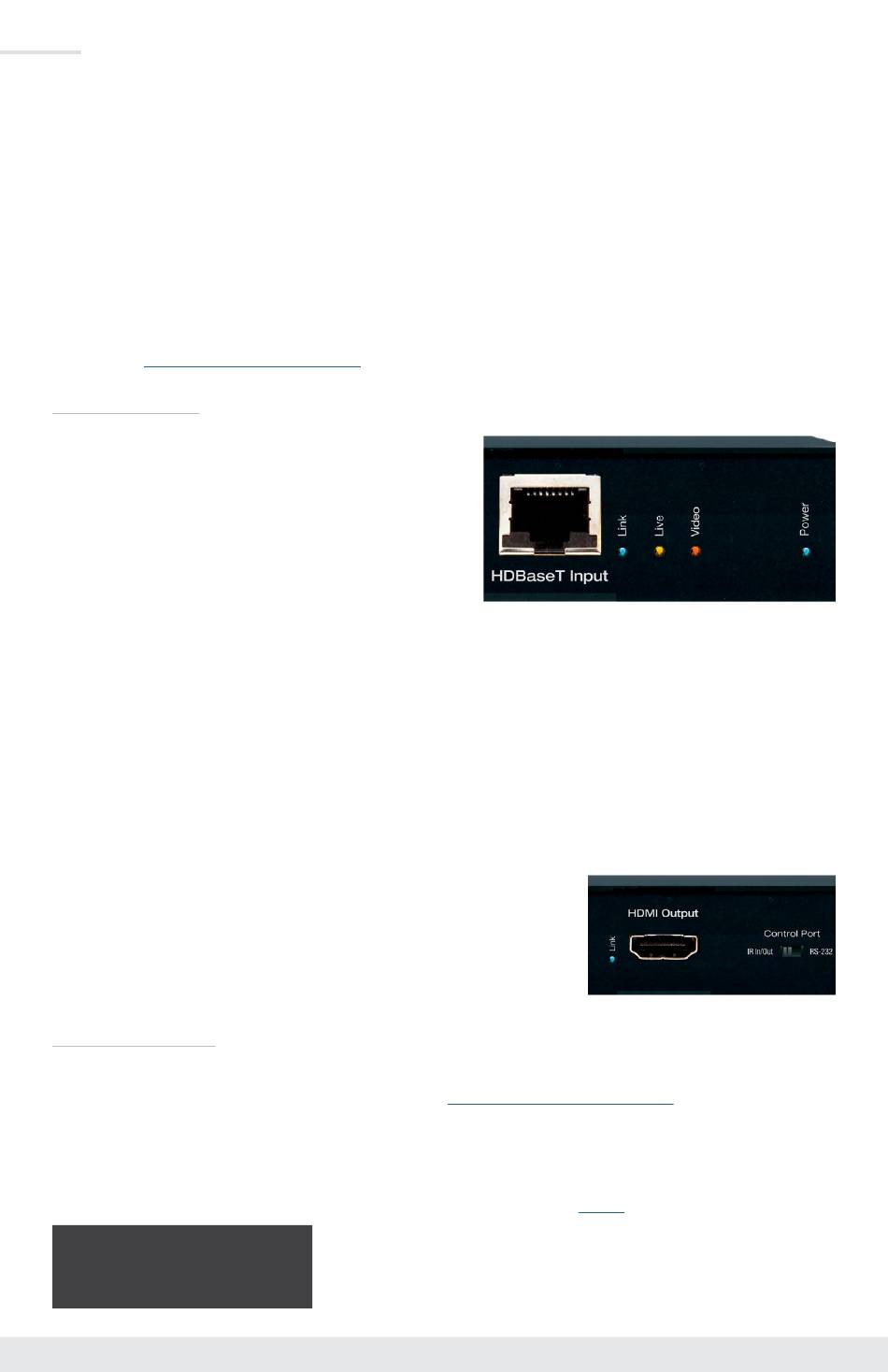

KD-XDALRx LEDs
Power:
›
Color: Blue
»
Solid illumination during power on state, as provided
»
by healthy connection with power supply and healthy
Power over HDBaseT extension .
Steady blink if unit has a power short
»
Live:
›
Color: Yellow
»
Steady blink from healthy unit CPU state
»
HDBaseT Link:
›
Color: Blue
»
Solid illumination from healthy HDBaseT link between Tx and Rx units
»
Video:
›
Color: Orange
»
Illumination with active TMDS (video + audio) signal
»
Off with no TMDS (video + audio) signal
»
HDMI Link:
›
Color: Blue
»
Tx Unit: Solid illumination from active signal from connected source
»
Rx Unit: Solid illumination from active Hot Plug Detection voltage with
»
connected display/output device
TCP/IP Control Port
Default static IP address is 192 .168 .1 .239, port 23
›
TCP/IP and RS-232 commands may be found in the
›
Connect an Ethernet cable from the KD-DA2x4G/KD-DA2x8G to a network router or connect a straight
›
through cable directly from a PC
Unit configuration, control, and firmware updates are most commonly achieved with
›
Key Digital Management Software
Default static IP address:
192.168.1.239, port 23
Control" section for more information .
TCP/IP and RS-232 Commands
Pro (KDMS Pro) downloaded
™ ™
section
HERE.
