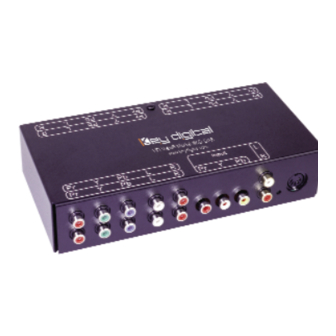

6 & 12 channel component distribution amp
Hide thumbs
Also See for KD-CDA12:
- Specifications (1 page) ,
- Product catalog (30 pages) ,
- Product catalog (37 pages)
Advertisement
Quick Links

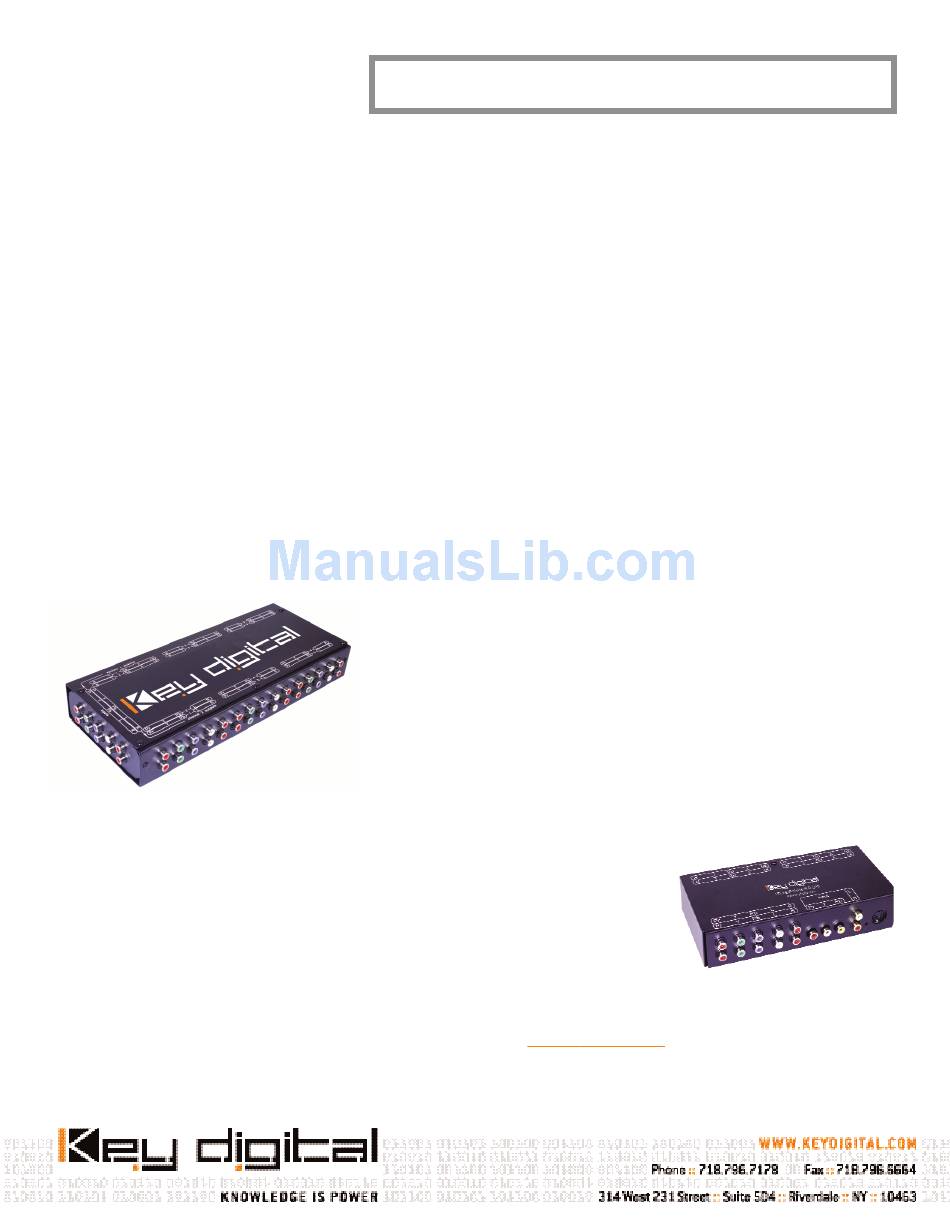

6 & 12 Channel Component Distribution Amp
HD Vi e w12
HD Vi e w 6
OPERATING INSTRUCTIONS
Model KD-DA6 & KD-CDA12
KDS, the HD HD View 6 provides economical signal distribution
from any HDTV or SDTV Component Video source (YPrPb) to compo-
nent HDTV-ready monitors. It uniquely resolves current connectiv-
ity problems experienced by HDTV manufacturers and retailers, by
&
effectively "gluing" together HDTV equipment manufactured to
diverging technologies. HD HD View 6 thereby enables a best-in-
class assembly of HDTV/SDTV sources and displays, yielding color-
rich, artifactfree, and pristine HDTV and SDTV signals
It is suggested that all users always check our web site for the latest version
of this Users Manual at www.key digital.com under Literature, User Manuals.
Like HD View12 also by
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Key Digital KD-CDA12
Summary of Contents for Key Digital KD-CDA12
-
Page 1: Operating Instructions
HDTV/SDTV sources and displays, yielding color- rich, artifactfree, and pristine HDTV and SDTV signals It is suggested that all users always check our web site for the latest version of this Users Manual at www.key digital.com under Literature, User Manuals. Like HD View12 also by... - Page 2 HD Vi e w 6 Model KD-DA6 Safety Instructions – Please be sure to follow these instructions for safe operation of your unit ****************************************************** Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth.
- Page 3 HD Vi e w12 OPERATING INSTRUCTIONS Model KD-CDA12 Introduction: Welcome to the world of Key Digital’s Personal Home Theater high resolution content distribution ampli- fiers. In today’s world where personal Home Theatres are elevated to new levels each and everyday in...
- Page 4 Note before attempting to Hookup: The KDS-CDA12 and KD-DA6 have similar perform- ance and installation instructions. In essence the KD-CDA12 is double KD-DA6 housed in one robust unit. The following instructions will apply to both units except when specifically noted.
- Page 5 “output” the KD-DA6 has one bank of 6 (Marked 1 through 6) sets of output connectors. The KD-CDA12 has two banks (Marked Channel 1 and 2, each corresponding to their respective inputs) of 6 each output connectors. Each of the RCA TM -style connectors are conveniently color coded to match most “Source”...
- Page 6 OPERATING INSTRUCTIONS Model KD-DA6 sure to use heavy shielded good quality cable like Key Digital TechFlex heavy gauge AV cable (refer to main catalog for cable selections, or KeyDigktal interactive website: ww.key digital.com. Now that all the input(s) are done it is time to con- nect the outputs to the respective “Display”...
- Page 7 ‡ NX12 mode. Mode 3: 1 Input driving 12 outputs ‡ 1X12 mode. Mode 1: The KD-CDA12 has two sets of inputs! This essentioally allows for independent connection of two “Source” devices and usage of the KD-CDA12 as two separate KD-DA6’s.
- Page 8 Either input can be used as the “Source” input or as the “Loop-Through” input (to send the sig- nal to the next KD-CDA12 or KD-DA6.) The Mode 2 setting is used for all KD_CDA12 in the chain except for the last unit which must be set to Mode 3 (See below for appropriate dip switch setting).
- Page 9 This unit can be installed in any Home theater, showroom or other configuration. Often the KD-DA6 or KD-CDA12 is moved to the back or behind the other AV “Source” devices. Cleaning or the maintenance is not necessary, if needed use a soft non-abrasive dry cloth to wipe the dust from the unit.
- Page 10 HD Vi e w 6 OPERATING INSTRUCTIONS Model KD-DA6 * Since the KD-DA6 and the KD-CDA12 are powered devices they will produce a minimal amount of heat, therefore it is recommended to leave enough room around the unit to dissipate this heat. *...
- Page 11 HD Vi e w12 OPERATING INSTRUCTIONS Model KD-CDA12 There is no signal displayed on the “Display” device. Verify the Sync or Green connector on all of your video connections; make sure it is connected to the correct input/output jack of the “Source” as well as the “Display”...
- Page 12 This could happen when crossing power lines when routing the cable from the “Source” device to the KD- DA6 or KD-CDA12, or when routing the cables from the KD-DA6 or KD-CDA12 to the “Display” device. If crossing power lines is inevitable, make sure to use...
- Page 13 KD-DA6 can drive 6 monitors. KD-CDA12 can drive 12monitors or two independent sets of 6 monitors. KD-CDA12 can be configured for 3 modes (2x6, 1x12 terminated, Nx12 loop-through) Component Video and Left, Right; Digital PCM audio can be used instead of Left, Right.
- Page 14 Model KD-DA6 Metal Enclosure. Cost effective. 2 years parts and labor warranty. Warranty: All Key Digital products are backed by a limit two year parts and labor warranty. For warranty infor- mation or RMA (Return Authorization instructions) please contact Michael@keydigital.com (718)796-7178, ext.
- Page 15 HD Vi e w12 Model KD-CDA12 75 Ohm terminated Componenet Video. Audio: Standard “line” type high impendance two-channel, L, R. Each L or R could be used for PCM digital audio. Cable Recommendation: Each run of YprPb cable MUST be the same length (300’...
- Page 16 Warranty: 2 years parts and labor. Warranty: All Key Digital products are backed by a limit two year parts and labor warranty. For warranty infor- mation or RMA (Return Authorization instructions) please contact Michael@keydigital.com or call (718)796-7178, ext.
