6 Cabling and wiring
6.10 Bias Q5 speakON™ wiring
Bias Q5
Output
Max quantity per channel
Cyclone Series User Guide V1.0
1+
1-
-

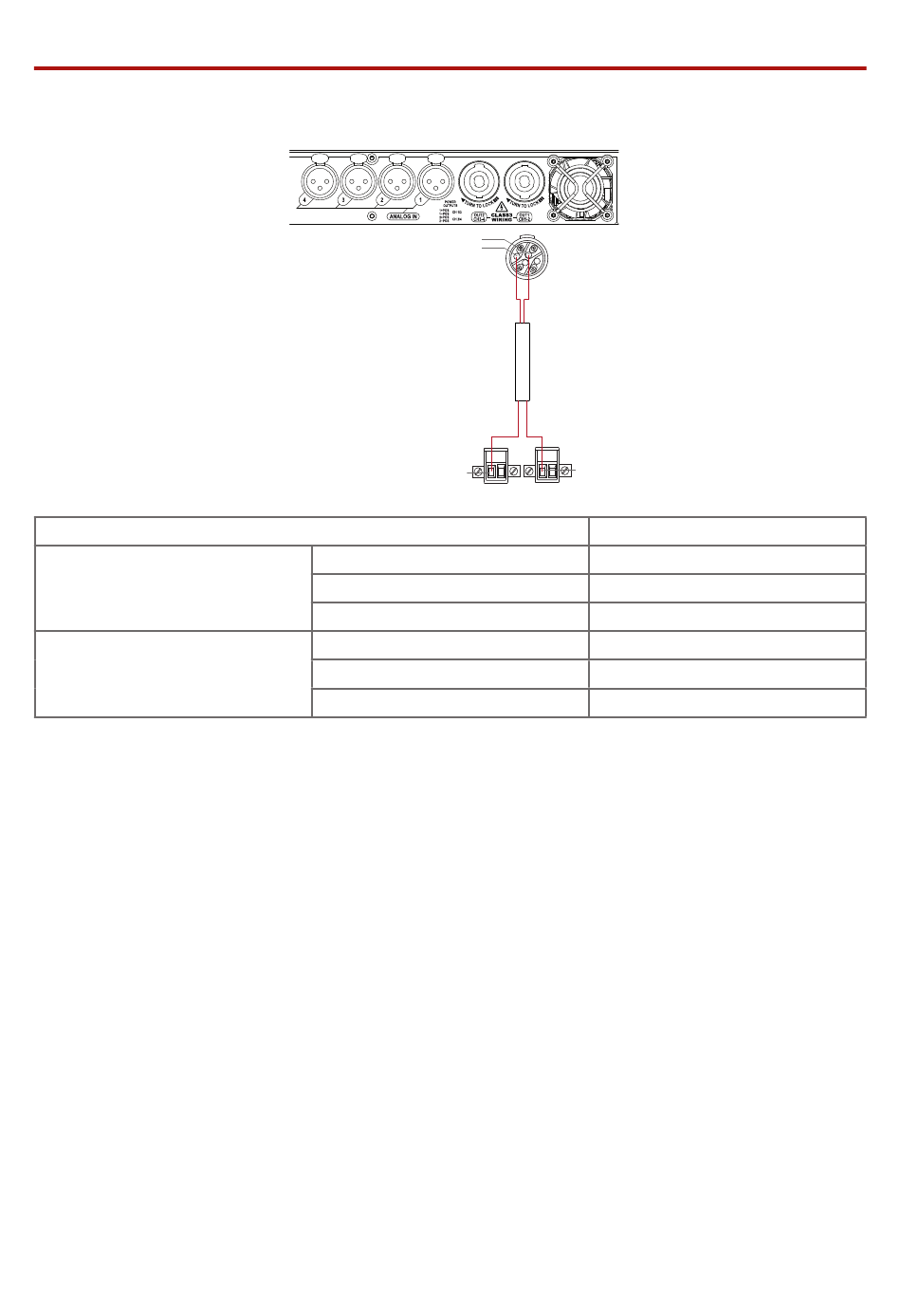

Figure 6.10: Bias Q5
Cyclone 10
Cyclone 55
Cyclone Bass
Cyclone 10
Cyclone 55
Cyclone Bass
+
Out 1
LF (10") and HF (1")
LF (2 x 5") and HF (2 x 1")
LF (12")
4 (2 Ω load to amplifier)
8 (2 Ω load to amplifier)
4 (2 Ω load to amplifier)
