Nexus Xl Wiring Diagram; Bias Q5 Speakon™ Wiring - Void Nexus Series User Manual

4 Cable and Wiring

4.4 Nexus XL wiring diagram

In
Out/Link
In
Out
4.5 Bias Q5 speakON
Bias Q5
Output
Max parallel units
UG10578-2.0 - Nexus XL User Guide V2.0
1+
1+
1-
1-
2-
2+
2+
2-
1+
1+
1-
1-
2-
2+
2+
2-

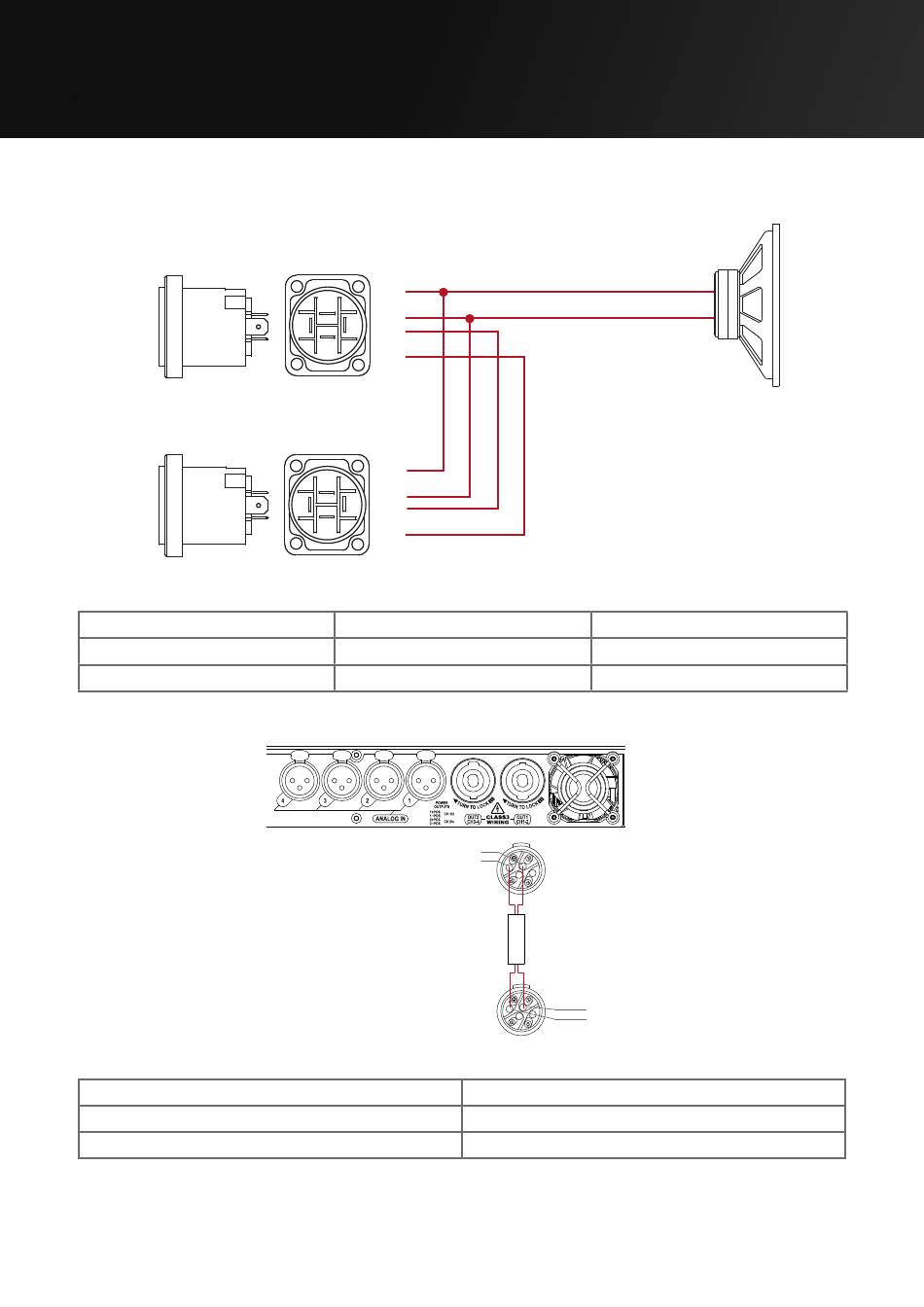

Figure 4.2: Wiring diagram
speakON TM pins 1+/1-
LF (21")
LF link
wiring
TM
Figure 4.3: Bias Q5
speakON
Out/link
Out/link
LF 1+
LF 1-
LF 1+
LF 1-
Channel 1
LF (12")
4 (2 Ω load to amplifier)
+
21" LF
-
TM pins 2+/2-
Page 9
