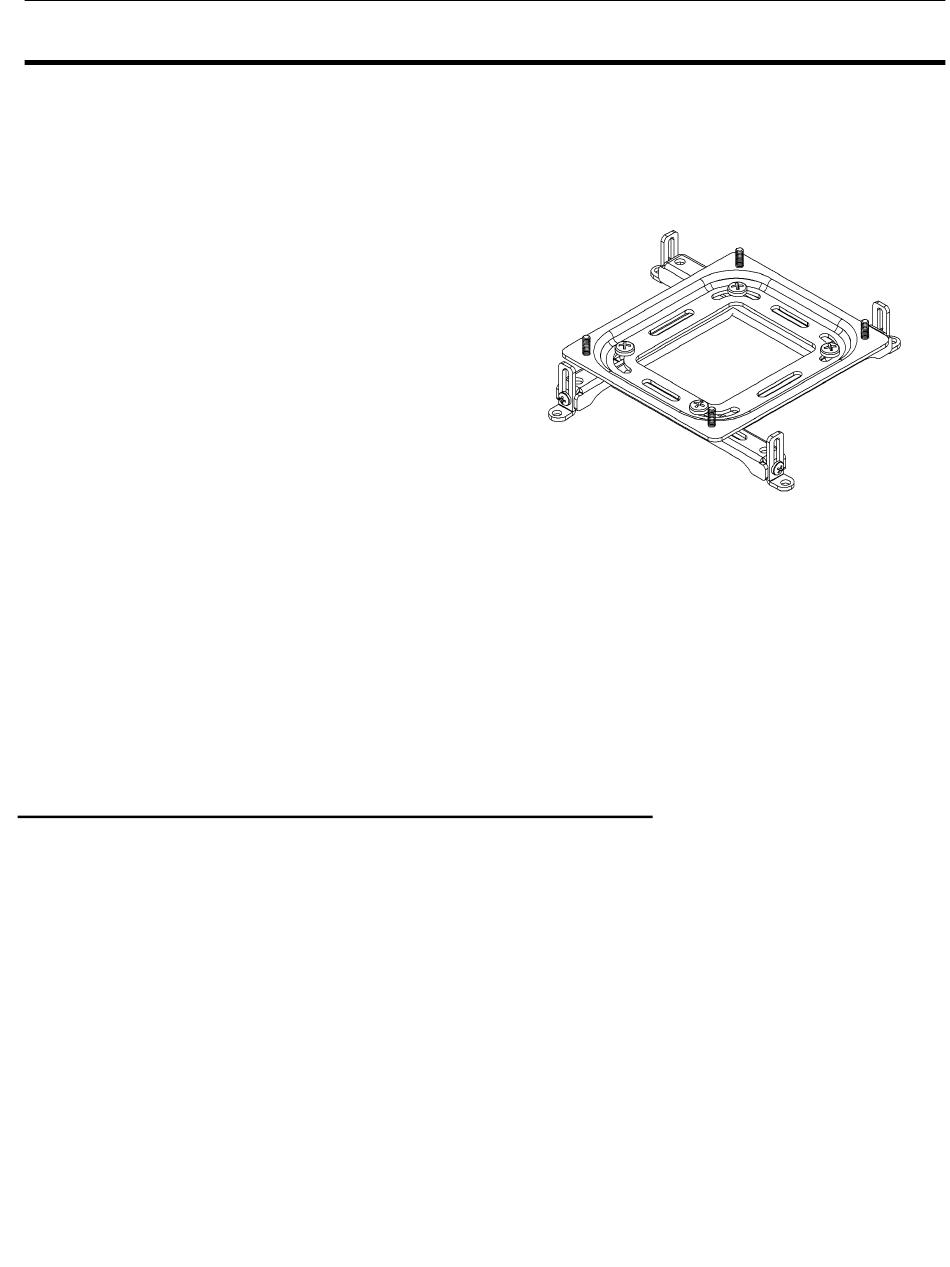

I N S T A L L A T I O N

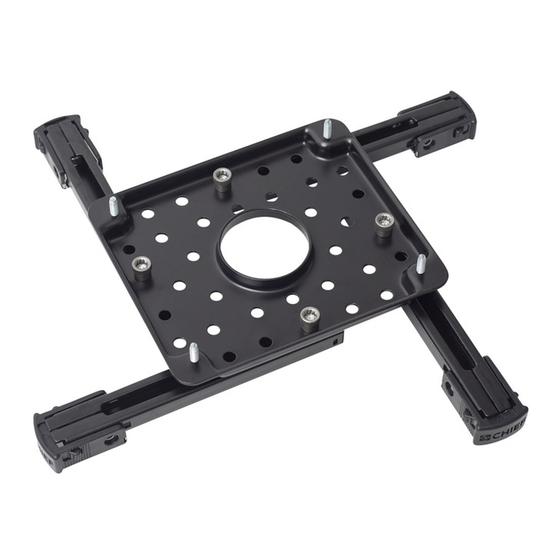

The Universal Smart Lift Bracket™ (SLB-U) provides a
solution for simplifying inventory of RPA series mounts
and SLB-U projector brackets.
The SLB-U allows for exact alignment with the
projector. The projector can be shifted around on the
mounting plate until its weight is centered and balanced.
The SLB-U is equipped with adjustable legs and feet,
which can be moved to any angle, depending on the
mounting-hole pattern on the projector. Leg and foot
length, width, and height can readily be adjusted.
The SLB-U is shipped with All-Points™ Security
System hardware, which is designed to protect projectors
from theft. Chief Manufacturing provides the security kit
exclusively.
BEFORE YOU BEGIN
•
CAUTION: To prevent damage to your monitor, which could affect or void the Factory warranty,
thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay
particular attention to the Warnings and Cautions in this document.
•
If you have any questions about this installation, us at 1-800-888-6024
SLB-U
UNIVERSAL SLB
I N S T R U C T I O N S
SLB-U
Advertisement
Table of Contents
Related Manuals for CHIEF Universal Smart Lift Bracket
Summary of Contents for CHIEF Universal Smart Lift Bracket
- Page 1 I N S T R U C T I O N S SLB-U UNIVERSAL SLB The Universal Smart Lift Bracket™ (SLB-U) provides a solution for simplifying inventory of RPA series mounts and SLB-U projector brackets. The SLB-U allows for exact alignment with the projector.
-
Page 2: Tools Required For Installation
Installation Instructions SLB-U IMPORTANT WARNINGS and CAUTIONS! WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions. -
Page 3: Table Of Contents
Installation Instructions SLB-U CONTENTS MOUNTING HARDWARE TOOLS REQUIRED FOR INSTALLATION ....2 DIMENSIONS ..............2 Table 1. Mounting Hardware SHIPPING CONTENTS...........2 ITEM DESCRIPTION NOTES MOUNTING HARDWARE ..........3 PARTS ................4 SLB-U Assembly INSTALLATION INSTRUCTIONS........5 M6 x 12mm Phillips Used with M6 Measuring the Mounting Hole Dimensions On the Pan Head Screw Flat Washers (60) -
Page 4: Parts
Installation Instructions SLB-U PARTS Figure 1. SLB-U Assembly Figure 2. SLB to RPA Figure 3. Mounting Hardware Kit Figure 4. Direct Mounting (without foot brackets) -
Page 5: Installation Instructions
Installation Instructions SLB-U INSTALLATION INSTRUCTIONS STEP 1 (Optional) Measuring the Mounting Hole Dimensions On the Projector To minimize error, perform the following steps to measure the approximate width and length between the mounting holes on your projector. 1. Determine the width and length between the mounting holes on your projector. -
Page 6: Adjusting The Legs On Slb-U
Installation Instructions SLB-U STEP 2 4. Attach the SLB-U to the projector, as follows: Adjusting the Legs on SLB-U a. Select the screw size that fits the threaded inserts on your projector (see Table 3). The mounting holes on projectors are supplied in a variety of different patterns. -
Page 7: Aligning The Slb-U (Minus 1 Adjustable Leg) On A Projector With 3 Mounting Holes
Installation Instructions SLB-U STEP 2 (OPTION B) Loosen screws. Adjust legs Aligning the SLB-U (minus 1 adjustable leg) on a on SLB-U, as needed. Align Projector with 3 Mounting Holes legs on SLB-U with mounting holes on projector. Align the SLB-U on the projector, as follows: 1. -
Page 8: Aligning The Slb-U (Using Horizontal Slot) On A Projector With 3 Mounting Holes
Installation Instructions SLB-U STEP 2 (OPTION C) 7. Attach the SLB-U to RPA (see Figure 2). Aligning the SLB-U (using horizontal slot) on a Loosen screws. Adjust legs Projector with 3 Mounting Holes on SLB-U, as needed. Align Align the SLB-U on the projector, as follows: legs on SLB-U with mounting holes on projector. -
Page 9: Aligning The Slb-U On A Projector Using Direct Mounting Option
Installation Instructions SLB-U STEP 2 (OPTION D) 5. Attach the SLB-U to RPA (see Figure 2). Aligning the SLB-U on a Projector using direct mounting option Align the SLB-U on the projector, as follows: 1. Locate the mounting holes on your projector. 2. -
Page 10: Adjusting Foot Height On Slb-U
Installation Instructions SLB-U STEP 3 Level the Adjusting Foot Height on SLB-U Mounting Plate Adjust the feet on the SLB-U for height, as follows: NOTE: Foot height is adjusted for a variety of reasons, which includes, but is not limited to, ventilation, uneven projector surface, and to level the RPA mounting plate. -
Page 11: All-Points Security Kit
Installation Instructions SLB-U STEP 5 (Optional) ALL-POINTS SECURITY KIT For All-Points™ Security, use the security hardware package inside the All-Points™ Security Kit. Follow the instructions for attaching the bracket to the projector using either standard hardware or security hardware. NOTE: You must retain the Security Allen Wrench if security screws are installed. Do not discard this wrench or leave it where unauthorized persons have access to your Security Allen Wrench.
