CHIEF RPA Installation Instructions Manual
Rpa elite series projector mount
Hide thumbs
Also See for RPA:
- Instruction manual (9 pages) ,
- Installation instructions manual (8 pages) ,
- Brochure (16 pages)
Table of Contents
Advertisement
I N S T A L L A T I O N I N S T R U C T I O N S
Instructions d´installation
Instrucciones de instalación
Istruzioni di installazione
Installatie-instructies
Installationsanleitung
Instruções de Instalação

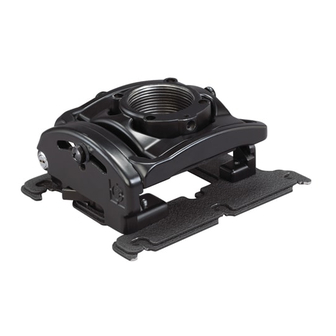

RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPM and RPM A-C
Advertisement
Table of Contents
Related Manuals for CHIEF RPA
Summary of Contents for CHIEF RPA

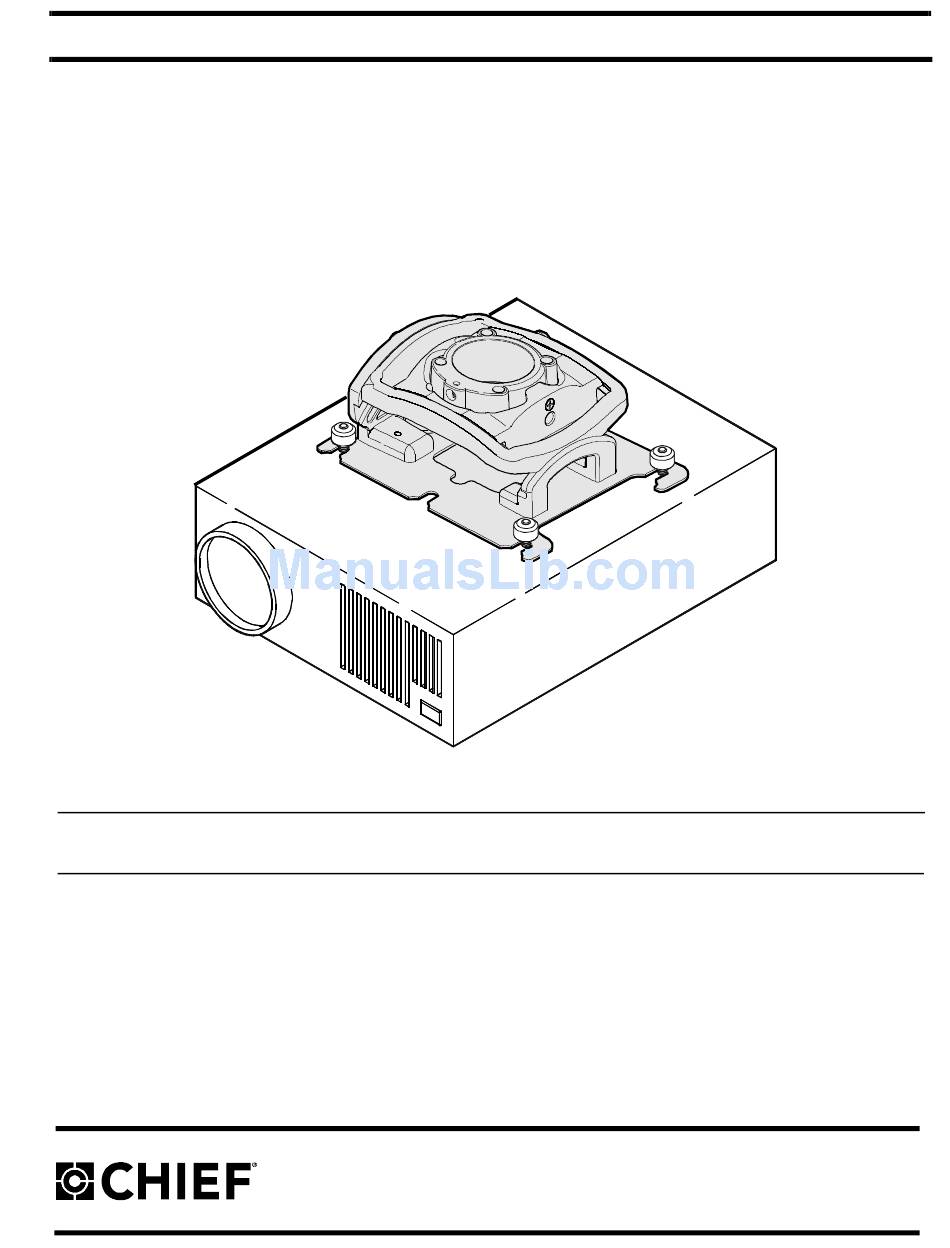

- Page 1 Instrucciones de instalación Istruzioni di installazione Installatie-instructies Installationsanleitung Instruções de Instalação RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount...
- Page 2 RPA Elite Series Projector Mount Installation Instructions DISCLAIMER Milestone AV Technologies, Inc., and its affiliated corporations PRECAUCIÓN: Una not de PRECAUCIÓN llama su atención and subsidiaries (collectively, "Milestone"), intend to make this sobre la posibilidad de dañar o destruir el equipo si no sigue manual accurate and complete.
- Page 3 Installation Instructions RPA Elite Series Projector Mount WARNUNG: Wenn das zulässige Gewicht überschritten AVVERTENZA: La mancata comprensione e ottemperanza wird, kann dies zu schweren Körperverletzungen oder alle istruzioni fornite può provocare gravi lesioni personali, Schäden an den Geräten führen! Der Monteur ist dafür...
- Page 4 RPA Elite Series Projector Mount Installation Instructions WAARSCHUWING: Overschrijding van het draagvermogen ADVERTISSEMENT: Le manque de la lecture, de la kan de oorzaak zijn van ernstig persoonlijk letsel en compréhension et du respect total de toutes les instructions, beschadiging van de apparatuur! Degene die het product peut entraîner des blessures corporelles graves,...
- Page 5 Installation Instructions RPA Elite Series Projector Mount Legend Pencil Mark Tighten Fastener Marquage au crayon Serrez les fixations Segno a matita Serrare il fissaggio Stiftmarkierung Befestigungsteil festziehen Marcar con lápiz Apretar elemento de fijación Potloodmerkteken Bevestiging vastdraaien Marcar com lápis...
- Page 6 RPA Elite Series Projector Mount Installation Instructions Hammer Target of Projector Martillo Punto de enfoque del proyector Hammer Ziel des Projektors Martelo Mira do projector Martello Punto di proiezione Hamer Doel van de projector Marteau Cible du projecteur 7/32" (6mm) dia.
- Page 7 Installation Instructions RPA Elite Series Projector Mount RPM INSTALLATION Threaded Pipe Installation Install ceiling plate and extension accessories following installation instruction provided by manufacturer. WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.
- Page 8 RPA Elite Series Projector Mount Installation Instructions INSTALLATION Wood Stud Installation Determine mounting location. WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.
- Page 9 Installation Instructions RPA Elite Series Projector Mount Concrete Installation Determine mounting location. WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.
-
Page 10: Projector Installation
Install four 1/4-20 jam nuts on each threaded rod. Install the RPA on the threaded rod. NOTE: Holes in the RPA allow socket wrench access without unit disassembly. Secure the RPM to the threaded rod using four 1/4-20 nuts. - Page 11 Installation Instructions RPA Elite Series Projector Mount Example Only (Interface bracket varies dependent WARNING: IMPROPER INSTALLATION CAN on projector model) LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer.
- Page 12 RPA Elite Series Projector Mount Installation Instructions Example Only Securing Projector with Interface Bracket (Interface bracket to Model RPM Mount. varies dependent on projector model) WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT.
- Page 13 Installation Instructions RPA Elite Series Projector Mount Example Only ADJUSTMENTS (Interface bracket varies dependent YAW Adjustment on projector model) Loosen YAW adjustment locking screw using a #2 Phillips screwdriver. Turn YAW micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
- Page 14 RPA Elite Series Projector Mount Installation Instructions Roll Adjustment Loosen ROLL adjustment locking screw using a #2 Phillips screwdriver. Turn ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target. Example Only...
- Page 15 Installation Instructions RPA Elite Series Projector Mount...
- Page 16 RPA Elite Series Projector Mount Installation Instructions USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615...
