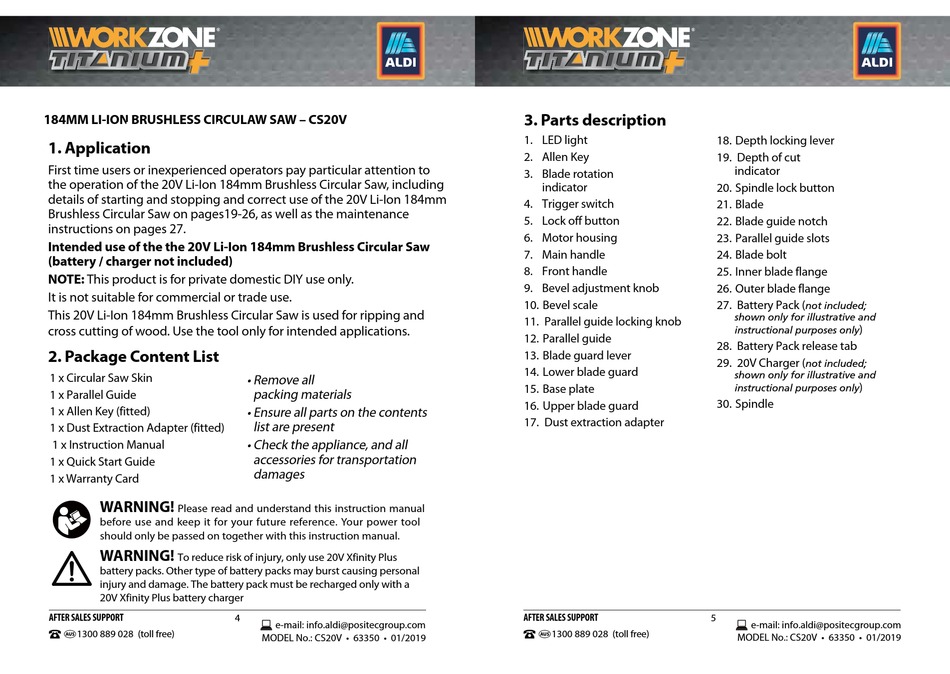

Application; Package Content List; Parts Description - Workzone Titanium CS20V Instruction Manual

184MM LI-ION BR USHLESS CIR
Pack c ontents / par ts

1. Application

First time users or inexperienced operators pay particular attention to
the operation of the 20V Li-Ion 184mm Brushless Circular Saw, including
details of starting and stopping and correct use of the 20V Li-Ion 184mm
Brushless Circular Saw on pages
instructions on pages .
Intended use of the the 20V Li-Ion 184mm Brushless Circular Saw
(battery / charger not included)
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial or trade use.
This 20V Li-Ion 184mm Brushless Circular Saw is used for ripping and
cross cutting of wood. Use the tool only for intended applications.

2. Package Content List

1 x Circular Saw Skin
1 x Parallel Guide
1 x Allen Key (fitted)
1 x Dust Extraction Adapter
1 x Instruction Manual
1 x Quick Start Guide
1 x Warranty Card
WARNING!
Please read and understand this instruction manual
before use and keep it for your future reference. Your power tool
should only be passed on together with this instruction manual.
WARNING!
To reduce risk of injury, only use 20V Xfinity Plus
battery packs. Other type of battery packs may burst causing personal
injury and damage. The battery pack must be recharged only with a
20V Xfinity Plus battery charger
AFTER SALES SUPPORT
1300 889 028 (toll free)
CULAW SAW – CS20V
, as well as the maintenance
• Remove all
packing materials
• Ensure all parts on the contents
list are present
• Check the appliance, and all
accessories for transportation
damages
4
e-mail: info.aldi@positecgroup.com
MODEL No.: CS20V • 63350 • 01/2019

3. Parts description

LED light
Allen Key
Blade rotation
indicator
Trigger switch
Lock off button
Motor housing
Main handle
Front handle
Bevel adjustment knob
Bevel scale
Parallel guide locking knob
Parallel guide
Blade guard lever
Lower blade guard
Base plate
Upper blade guard
Dust extraction
AFTER SALES SUPPORT
1300 889 028 (toll free)
Depth locking lever
Depth of cut
indicator
Spindle lock button
Blade
Blade guide notch
Parallel guide slots
Blade bolt
Inner blade flange
Outer blade flange
Battery Pack (
)
Battery Pack release tab
20V Charger (
)
Spindle
5
e-mail: info.aldi@positecgroup.com
MODEL No.: CS20 • 63350 • 01/2019
