10. Operation

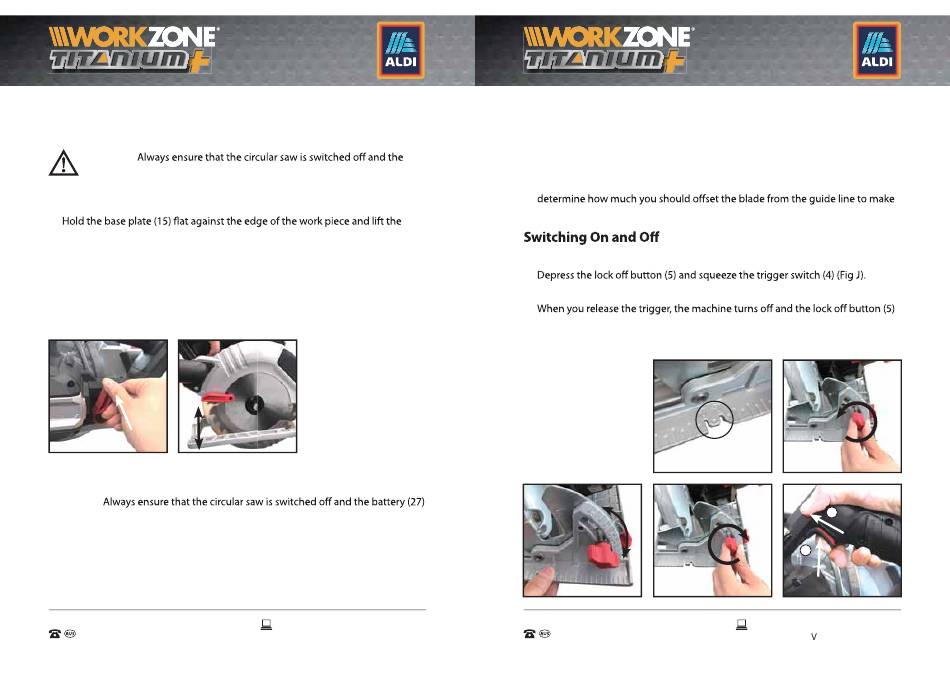

Adjusting the Cutting Depth
WARNING:
battery (27) is removed before making any adjustments.
1. Ensure that the saw is facing away from you.
2. Loosen the depth locking lever (18) (Fig D).
3.
body of the saw until the blade is at the right depth (Fig E). Use the depth of
cut indicator (19) to determine the cutting depth.
4. Tighten the depth locking lever (18).
NOTE: Always use the correct blade depth setting. The correct blade depth
setting for all cuts should not be more than (6.35mm) 1/4" below the material
being cut. Allowing more depth will increase the chance of kickback and result
in a rough cut.
D. E.
Adjusting the Bevel Angle
WARNING:
is removed before making any adjustments.
1. The circular saw can be adjusted to cut at any angle between 0° and 50°. When
making 45° bevel cuts, there is a blade guide notch (22) on the circular saw
base to help you line up the blade with the line of cut (Fig F). Align your line
of cut with the inner blade guide notch on the base of the circular saw when
making 45° bevel cuts.
AFTER SALES SUPPORT
1300 889 028 (toll free)
20
e-mail: info.aldi@positecgroup.com
MODEL No.: CS20V • 63350 • 01/2019
2. Loosen the bevel adjustment knob (9) located at the front of the base plate (15)
(Fig G).
3. Tilt the body of the saw until the required angle is reached using the bevel scale
(10) as a guide (Fig H).
4. Tighten the bevel adjustment knob (9) to secure the base plate (15) (Fig I).
NOTE: Always make a trial cut in a scrap piece of material along a guideline to
an accurate cut.
1. Attach the battery pack (27) to the circular saw.
2.
3. The blade will take approximately 2 seconds to reach full speed.
4.
re-engages to prevent accidental operation.
CAUTION: Allow the blade (21) to come to a complete standstill before setting
the saw down.
