Installation
Position
Quantity
1
1
2
1
3
1
4
3
5
1

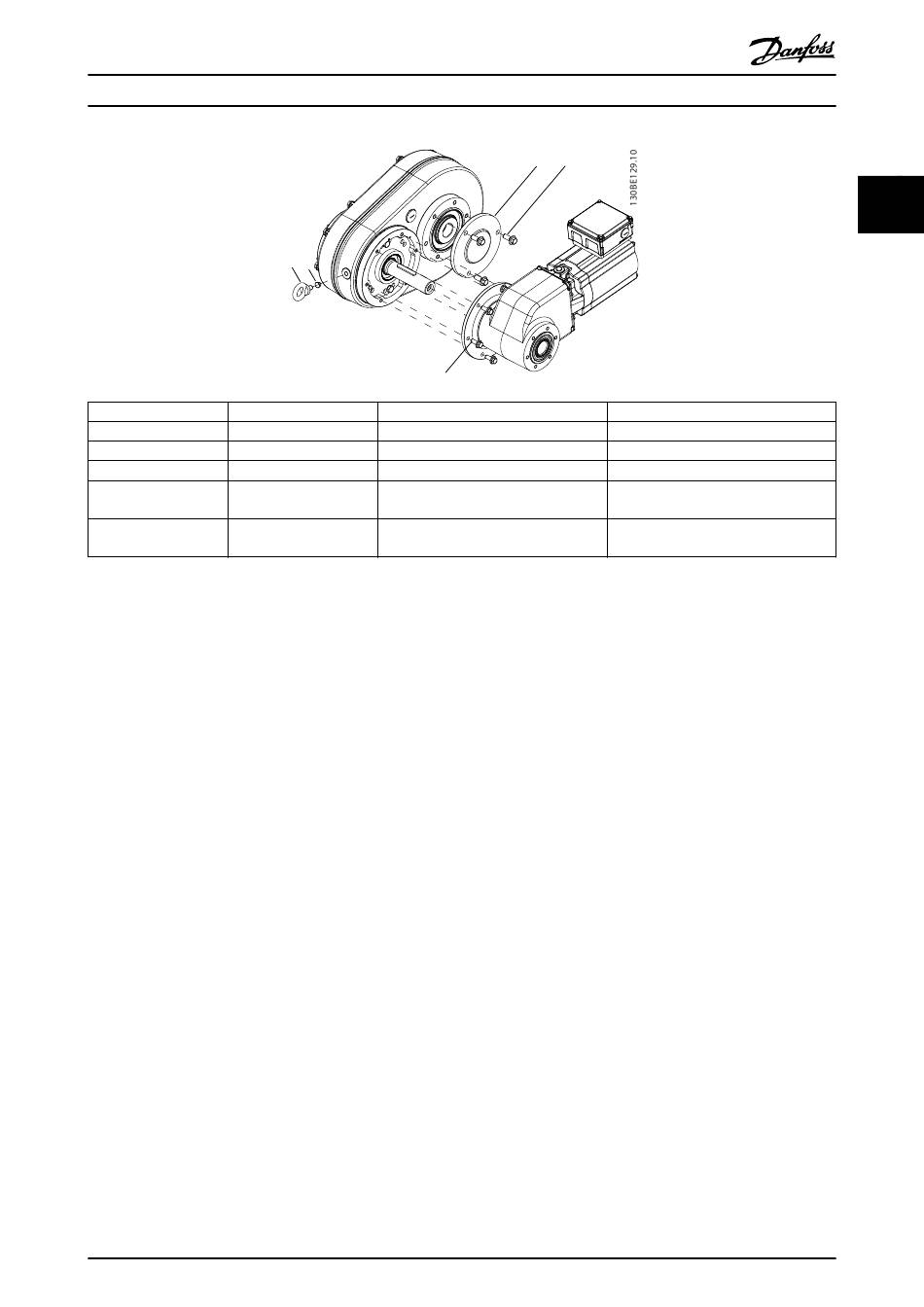

Illustration 2.4 Assembly of the Adapter Flange to the ExtensionBox
5.
Fasten the adapter flange [5] with the adapter screws (supplied).
6.
Remove the eye bolt [1] from the ExtensionBox and the OneGearDrive.
7.
Fit the plastic cap [2] (supplied) to close the hole on the ExtensionBox.
8.
Fit the hollow shaft cover [3] to the ExtensionBox.
®
Refer to the VLT
OneGearDrive Operating Instructions for further information.
MI75A102
Installation Guide
1
2
5
Item
Eyebolt
Plastic cap
Hollow shaft cover with seal
Cover screw
Adapter flange
(mounted to OneGearDrive)
Danfoss A/S © 02/2015 All rights reserved.
3
4
Comments
DIN 580, C15, M12
–
–
DIN 6921, M12 x 30, tightening torque:
6 Nm
–
2
2
7
