Installation
2.2.3 VLT
®
OneGearDrive
1.
Assemble the adapter flange to the OneGearDrive as shown in Illustration 2.3.
NOTICE

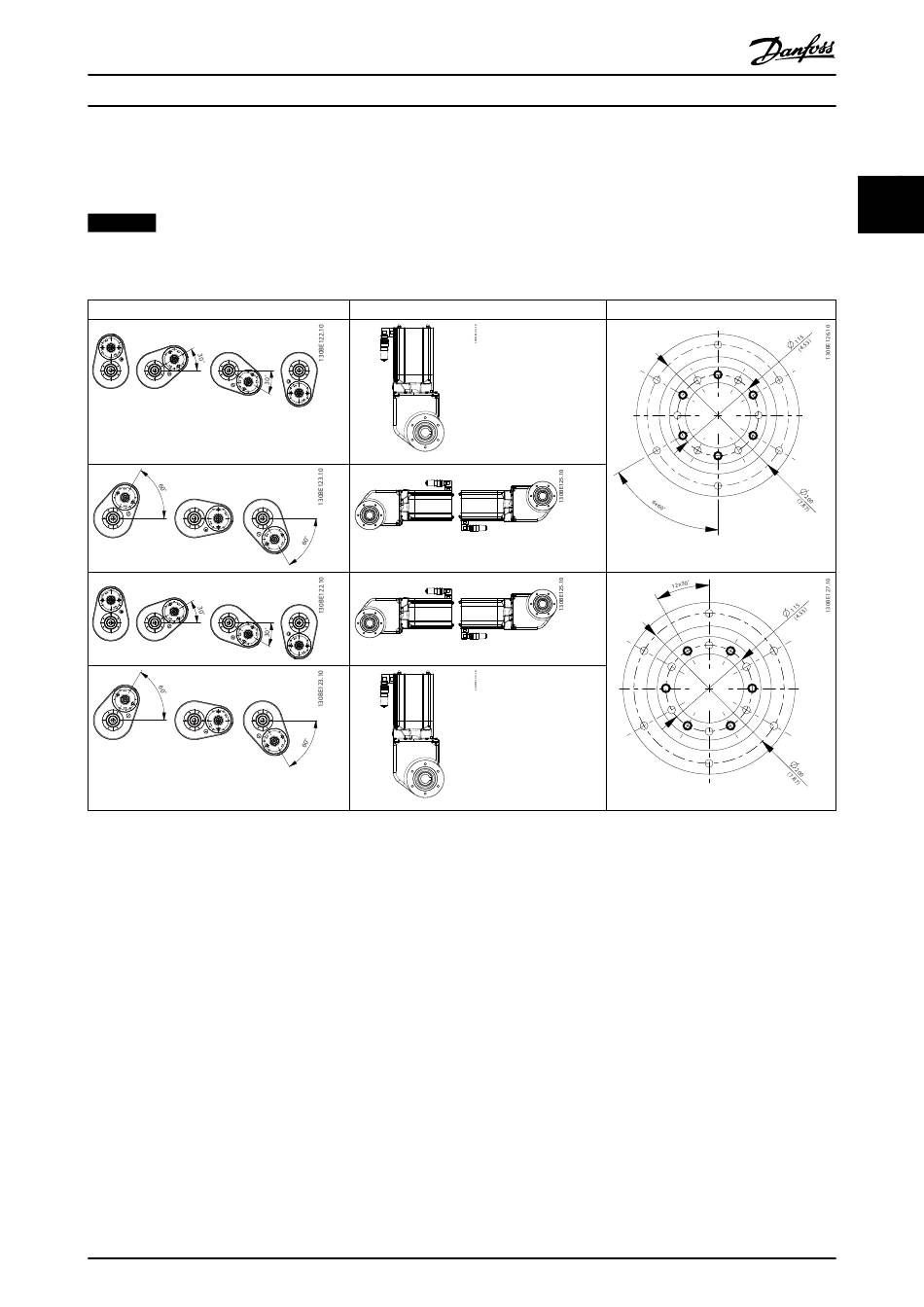

Table 2.1 shows the possible adapter flange positions for the various ExtensionBox mounting positions. Also use this
table for mirror inverted mounting positions.
ExtensionBox mounting position
Table 2.1 Possible Adapter Flange Positions
2.
Tighten all 6 screws as shown in Illustration 2.3.
3.
Grease the ExtensionBox shaft.
4.
Mount the OneGearDrive to the ExtensionBox shaft as shown in Illustration 2.4.
MI75A102
Installation Guide
OneGearDrive mounting position
P3
P1
P2
P1
P2
P3
Danfoss A/S © 02/2015 All rights reserved.
Adapter flange screw positions
2
2
5
