Steelcase Think 465 Replacement Procedure

Vbc cable replacement

Hide thumbs Also See for Think 465:

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2014 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

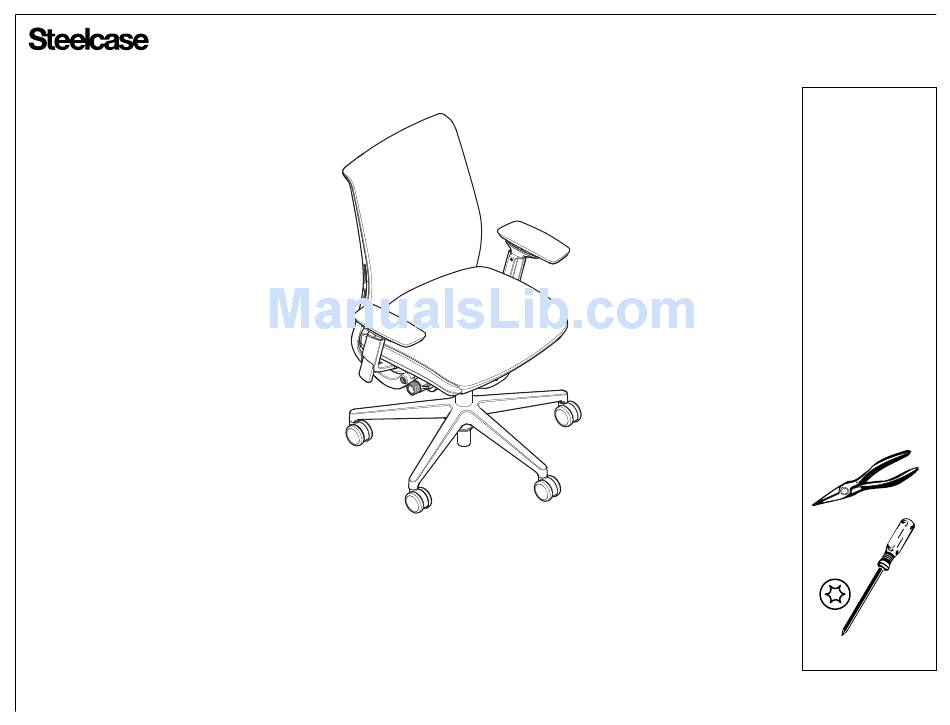

465 Think Chair (New) VBC Cable Replacement

Torx T20

Page 1 of 4

939546542 Rev A

Table of Contents

Need help?

Do you have a question about the Think 465 and is the answer not in the manual?

Page 1 ® 465 Think Chair (New) VBC Cable Replacement ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. Torx T20 (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
Page 2 ® Removal of VBC Cable Press seat slide handle (at front of seat) and pull seat as far forward as it will go. Tip the chair onto its right side. Locate the seat out stop feature. Insert a screwdriver below the out stop feature and push it (up) toward the seat.
Page 3 ® Removal of VBC Cable Adjust chair to highest position by activating the seat height lever. Rotate back-tilt knob up to relax cable tension. Lift cable wire slightly and detach cable plug and cable wire from back-tilt cam. Use Torx T20 driver to remove screw and cable guide. SEAT HEIGHT LEVER CABLE...
Page 4 ® Removal of VBC Cable Turn chair over. Use Torx T20 bit to remove four (4) screws. Remove guard plate. NOTE: Grease is applied to pneumatic cylinder column. Take care with hands and clothing. Lift cable guide block with VBC cable. Note alignment pin locations for reinstallation reference. Carefully remove VBC cable from cable block.
