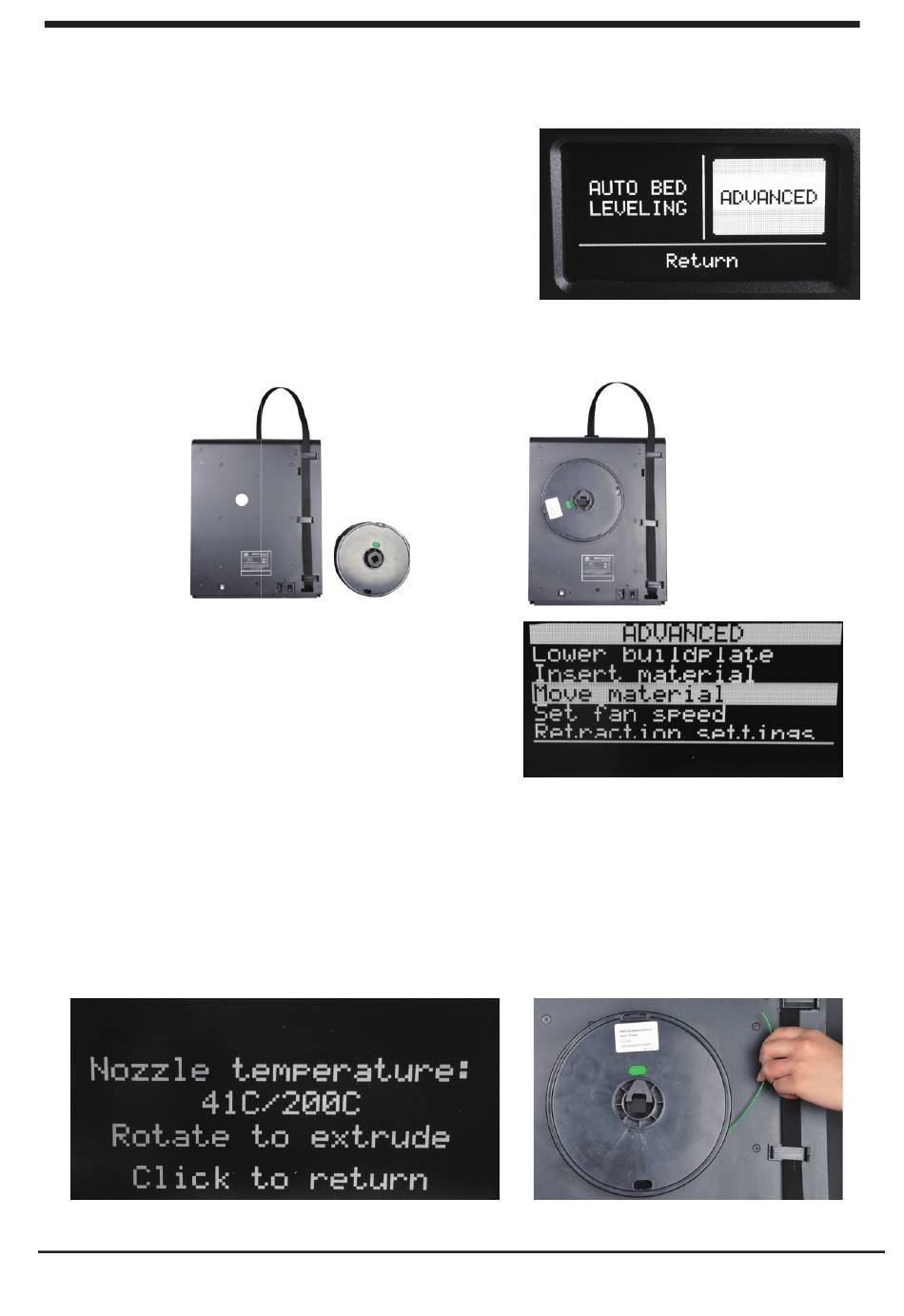

D3. Loading fi lament material
Now that you have completed the initial leveling
tasks. Please navigate----ADVANCE---Move
STEP where we are going to insert fi lament
material in the material feeder.
Please make sure you have a fi lament spool positioned over the spool holder,
guided along the filament guide, with the filament in counter clockwise
direction.
In this step, you need to wait a minute while the
printhead heats up. Wait for the temperature reach
target.
NOTE: The printhead will now move itself
to the front automatically.
This step needs some extra focus. The wheel in the material feeder will start rotating
slowly. Push the level and insert the fi lament into fi lament hole at top of extruder. There is
one hole where it should go into right above the feeding gear. Follow the display instruction
with the supporting images below but WAIT! Before pushing(CONTINUE) and check the
next page for more instructions.
Push the level bar and insert the filament into the hole until very end of the
extruder(roughly about 10cm filament length). You can see the filament pop out
from the nozzle. This takes some force. Then release the level bar.
