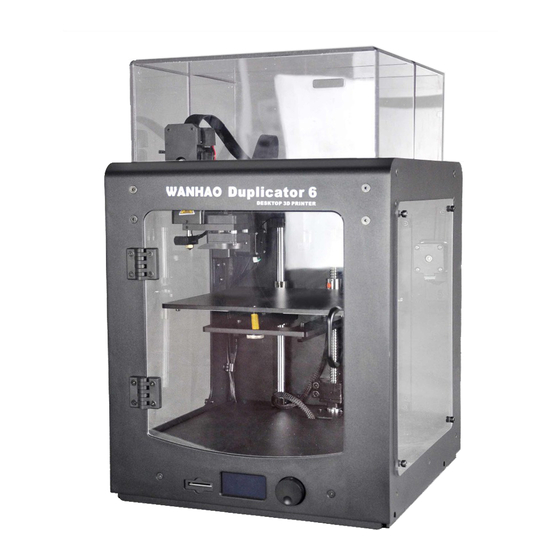

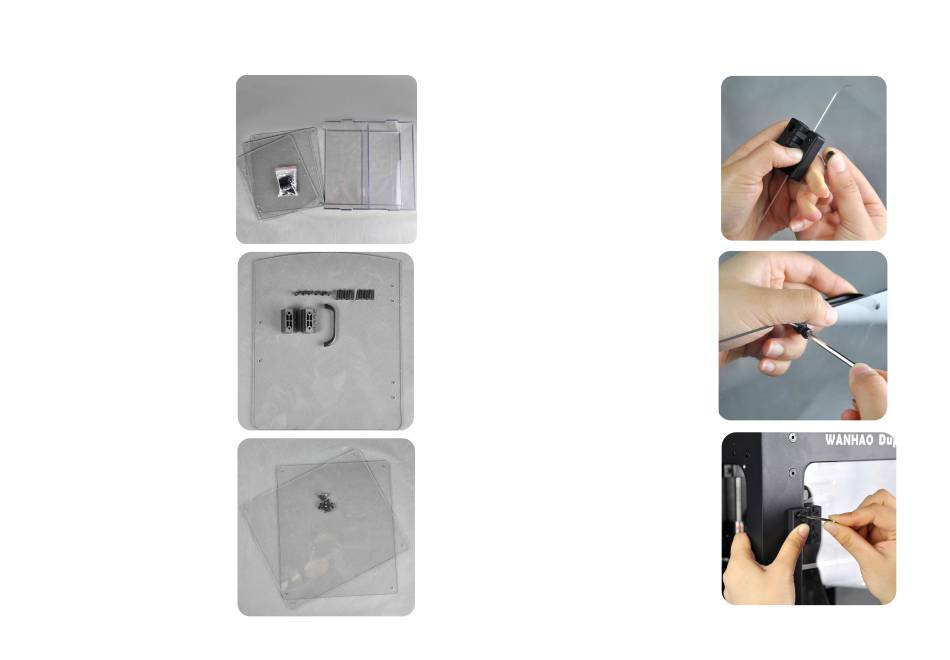

Fixing the cover of your Duplicator 6.
1. To install the cover of D6 printe,
you need the 1 front cover,2 side
covers,2 top covers and a tool bag
where you can find one handle,two
hinges,ten M4*16 screws, five
M4 nuts,ten M5*10 screws,M4*5
screws, one 2.5mm hex wrench, one
3mm hex wrench and one 4mm hex
wrench.
2. To install the front cover, you
need one front cover,two M4*5
screws,eight M4*16 screws,four M4
nuts,one 2.5mm hex wrench,3.0mm
hex wrench,two hinges, and one
handle.
3. To install the side cover, you
need two side covers,eight M5*10
screw and a 4mm hex wrench.
4. Use M4*16 screw and M4 nut To
fix the hinge on the front cover. In
this step, you need 4 M4*16 screws
and 4 M4 nuts for the two handles.
5. Use M4*5 screw and 3mm hex
wrench to fix the handle on the
front cover. In this step, you need
two M4*5 screws.
6. Fix the front cover on the printer
with the 2.5mm hex wrench and
another four M4*16 screws.
