WANHAO i3 UNBOXING AND
HARDWARE SET UP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duplicator i3 and is the answer not in the manual?

Questions and answers

Related Manuals for WANHAO Duplicator i3

Summary of Contents for WANHAO Duplicator i3

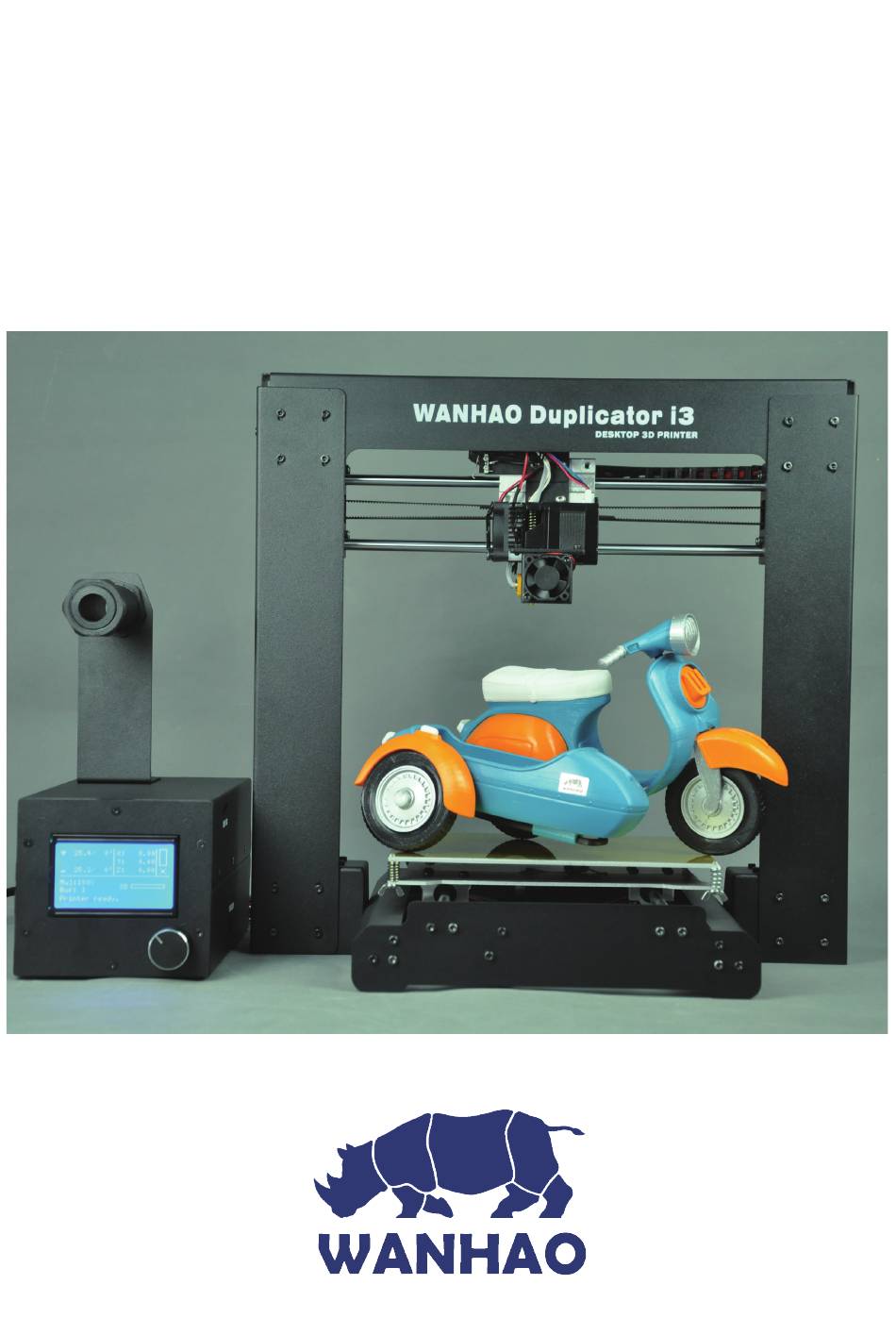

  • Page 1 WANHAO i3 UNBOXING AND HARDWARE SET UP...

  • Page 2: Unboxing And Hardware Setup

    Unboxing and Hardware Setup We packaged your Duplicator i3 very carefully at the Wanhao Bot cave -- we hope you’ll read this guide and be just as careful unpacking it. In fact, you should always be really careful with The Duplicator i3.
  • Page 3 First, place The Duplicator i3's box on the work table next to a clean, flat work space. Open from the up side. Cut the plastic bag. So you can clear all the protection foam and cut all the white secure ribbons.
  • Page 4 6. Put the control box onto table or floor. 7. Stand the tower on the table, take 8. Cut the white secure ribbon. Of secure sticker on switch and wing nuts. Wanhao I3 unboxing and hardware set up. Rev.D 3 / 10...
  • Page 5 9. Raise the right X axis manually. 10.Raise the left axis manually. 11.Insert the Base into the tower and match the bolt hole. 12. Lock the 2 bolts on left, right side. Wanhao I3 unboxing and hardware set up. Rev.D 4 / 10...
  • Page 6 17. Connect end stop switch to socket switch directly onto it’s position. For some printer you may need to install the switch onto the side wall. 18. 18. Insert the drag Chain into socket Wanhao I3 unboxing and hardware set up. Rev.D 5 / 10...
  • Page 7 Note: the black cable is not a handle! Never lift The Duplicator i3 by the black cable 2.3 In the packaging underneath your Duplicator i3 you’ll find the Power cable, as well as your USB A to B cable and Filament. Take these out and put them aside.
  • Page 8 You have now finished unpacking your Duplicator i3! We’re really proud of it! Also, we recommend that you keep the box that it was shipped in for future transport and long-term storage. The Duplicator i3 Diagram Before we continue, let’s familiarize ourselves with some of the main features of The Wanhao Duplicator i3.
  • Page 9 China. Next, plug the cable into the Power Supply socket, next to the power switch. 4.7Before connecting anything, make sure that the Duplicator i3 power switch is in the OFF position and the switch is at right voltage of your local area.
  • Page 10 We do recommend to print from SD card only. If you need to update the firmware in future, locate the USB A to B cable and plug it into the USB B port on The Duplicator i3. Don’t plug the other end into anything yet.
  • Page 11 2. Folding packing. REV.C 1. Delete: Gently pull The Duplicator i3 out of its packaging and place it on your work surface.2.4. 2. Add: take off secure sticker on the switch and wing nuts. 3. Add: Connect end stop switch to socket ,For prior printer you may need to install,switch directly onto it’s position.
