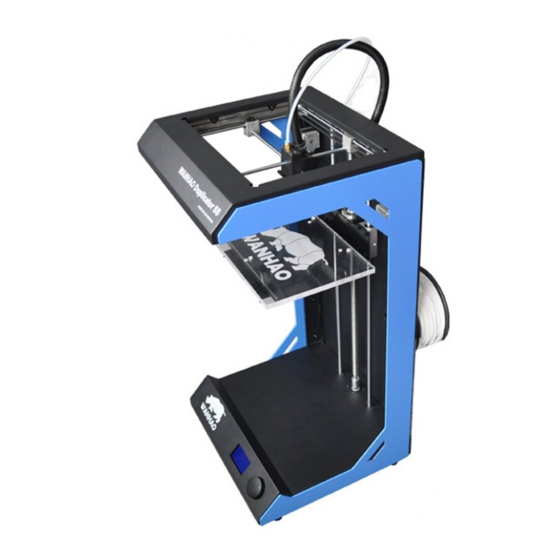

WANHAO Duplicator 5S User Manual

Desktop 3d printers
Hide thumbs Also See for Duplicator 5S:
Table of Contents

Advertisement

Quick Links

Download this manual
1

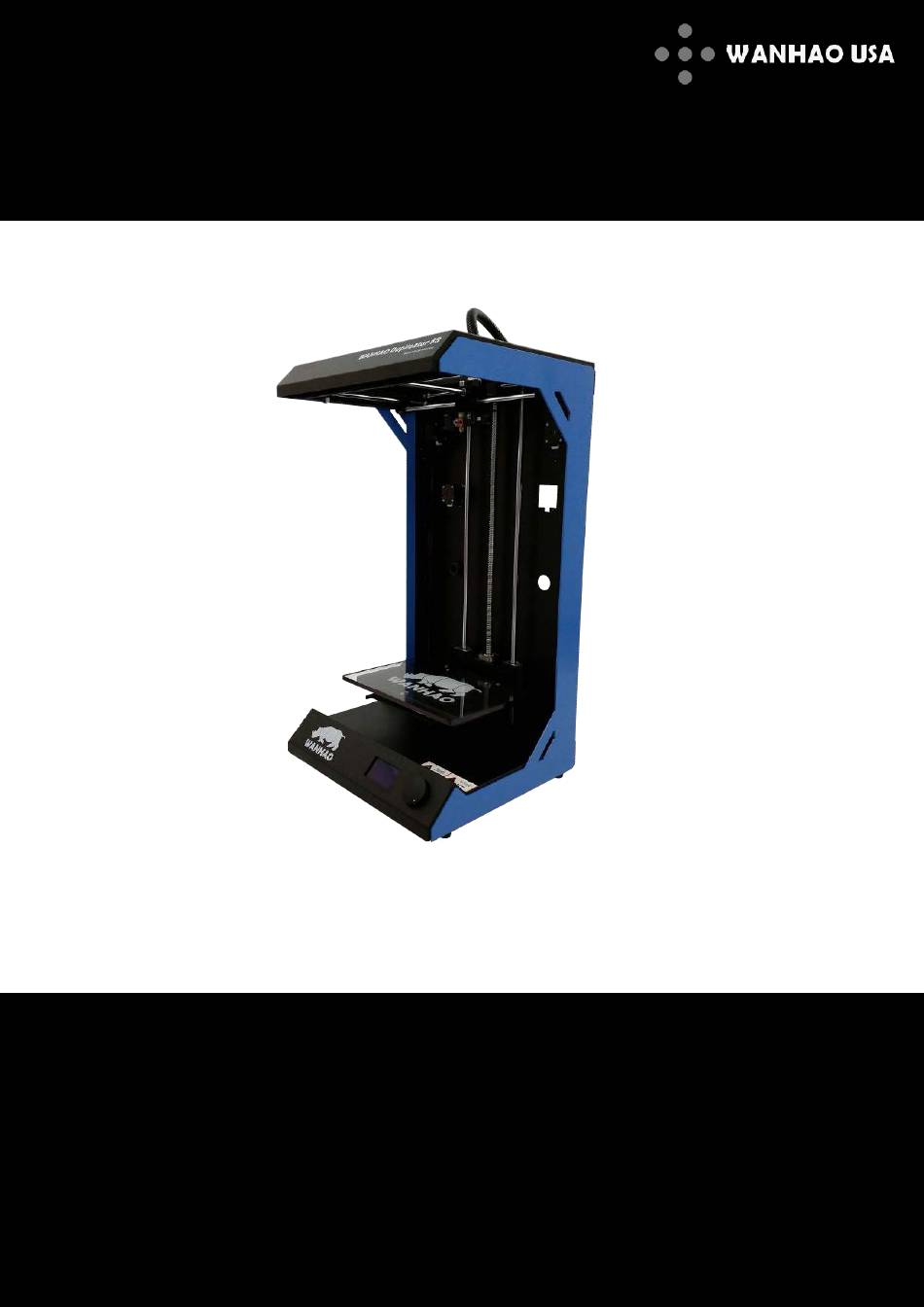

Duplicator 5S & 5S MINI Desktop 3D Printers
USER MANUAL
Resolution
0.02mm
Speed 300mm/second
Software: Wanhao Maker
© 2014/2015 Wanhao USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duplicator 5S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WANHAO Duplicator 5S

Summary of Contents for WANHAO Duplicator 5S

  • Page 1 Duplicator 5S & 5S MINI Desktop 3D Printers USER MANUAL Resolution 0.02mm Speed 300mm/second Software: Wanhao Maker © 2014/2015 Wanhao USA...

  • Page 3: Table Of Contents

    Table of Contents Welcome Printer Specifications Unboxing What's In the Box Component Layout Powering On the Printer Calibrating the Build Plate Loading Filament Installing Wanhao Maker Software 10-11 Wanhao Maker Interface Using Wanhao Maker Software 13-14 Safety...

  • Page 4: Welcome

    Welcome We at Wanhao USA are proud to introduce the Duplicator 5S series of 3D printers. Boasting market-leading build capabilities, blazing printing speed, and a robust proprietary software...the Duplicator 5S series of printers are re-defining desktop 3D printing. This user manual will guide you through the setup of your Duplicator 5S and 5S MINI and the installation/usage of the Wanhao Maker software.

  • Page 5: Printer Specifications

    Fabrication (FFF) Length 400mm Duplicator 5S Build Capability Width 460mm Height 860mm Duplicator 5S 305*205*575 mm Length 400mm Duplicator 5S MINI (~ 12*8*23 in) Width 460mm Height 350mm 305*205*175 mm Duplicator 5S MINI Shipping Box Dimensions (~ 12*8*7 in) Duplicator 5S...

  • Page 6: Unboxing

    Unboxing 2. Lay the box on a long side and 1. Place the Duplicator 5S box on carefully cut open the bottom side of a stable surface. Placing it centrally the box with a box cutter. on the floor will provide the best accessible position for unpacking.

  • Page 7: What's In The Box

    What's in the Box Please check the contents of your printer box to make sure that all of the following components have been included: Printer Spool Holder Build Plate Tweezers USB Cable Hex Key Print Scraper SD Card Adapter Power SD Card Supply Unit Filament Roll...

  • Page 8: Component Layout

    Component Layout 1. LCD Menu Display 2. Click and Rotary Dial 3. SD Card Reader 4. Build Plate 5. Build Plate Wingnuts 6. Extruder Assembly 7. Filament Guide Tube 8. Extruder Cables Bundle 9. Filament Feeder 10. Filament Spool Holder Slot 11.

  • Page 9: Powering On The Printer

    Powering On the Printer 1. There are two parts to your AC adapter. Connect these two cables together, and connect the three-pronged end to a wall socket. 2. Take the other end of your AC adapter and plug it into the circular socket on the back of your printer.

  • Page 10: Calibrating The Build Plate

    Calibrating the Build Plate 1. Before printing, you must calibrate 2. Click the rotary dial again and your build plate. From the main info scroll down to CALIBRATE PLATE. screen click the rotary dial and scroll the down to UTILITIES. 4.
  • Page 11 Calibrating the Build Plate (continued) 6. To raise and lower your build plate, 5. Slide a business card (or a sheet of look underneath the platform for copy paper) in between the nozzle three separate wingnuts. Adjust only and the build plate. You will want the the wingnut underneath your current sheet of paper to slide back and forth nozzle position.

  • Page 12: Loading Filament

    Click the UNDERNEATH the filament feeder. The rotary dial once more to finish procedure. Duplicator 5S MINI filament spool holder will attach at the slot directly ACROSS from the Your machine is now ready to print.

  • Page 13: Installing Wanhao Maker Software

    Developed by the Wanhao International Team, this software was created to make 3D printing as easy as possible. Wanhao Maker can be used to manipulate 3D printing files into a file format that the Duplicator 5S understands. This file type is called an I file (example_object.i).
  • Page 14 NEXT. 7. Click FINISH on the last prompt when 6. The installation wizard will automatically you are ready to begin using the Wanhao install all of the necessary files. When the Maker software. installation is complete, click NEXT.

  • Page 15: Wanhao Maker Interface

    Wanhao Maker Interface 11. Mirror X 6. View 1. Add File (Quick Button) Click on an object, and then on this icon To view your object from different agles, Click this icon to load an object to your to flip along the X-axis.

  • Page 16: Using Wanhao Maker Software

    2. After you have added and manipulated your format. In addition to finding 3D printing STL file in Wanhao Maker, click the slice icon to files on the internet you can also create begin slicing. You will be given the option to your own STL file using a CAD program.
  • Page 17 Using Wanhao Maker Software (continued) 5. The Duplicator 5S is designed for long prints; 6. Once you have saved your I file the best way to transfer data during a long print to your SD card, safely eject your SD is via an SD card.

  • Page 18: Safety

    Stay clear of the printer frame perimeter while the machine is in operation. Always control the Duplicator 5S from the rotary dial on the front of the printer or with the power-switch located on the back. Never push or pull any of the components by hand.
