C1. Installing power supply

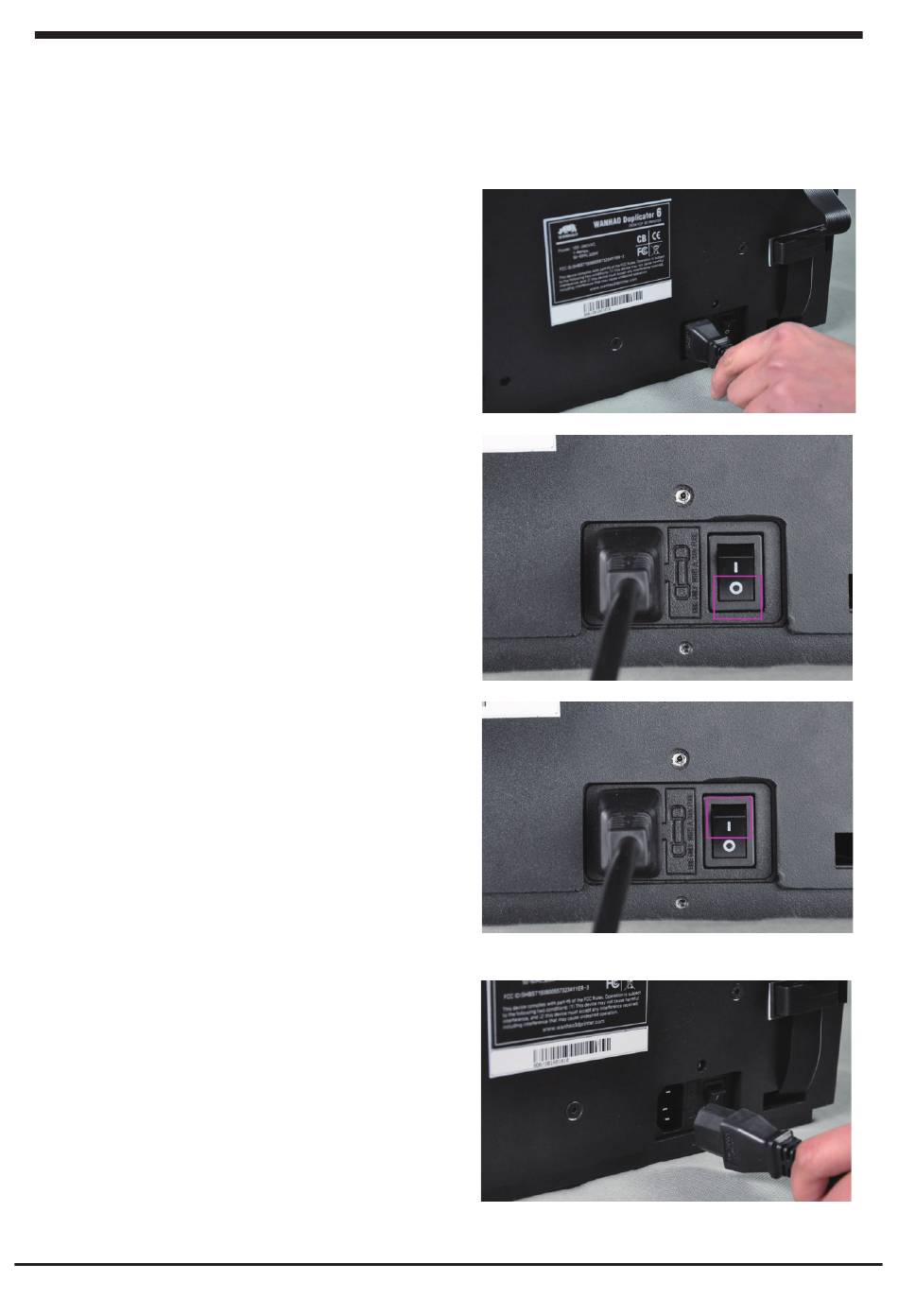

Attaching power supply
Now the next step is to give the D6 plus power. This is done by attaching the
internal power supply.
1. First make sure the power switch is in the
OFF position, this is when the button at the
back is pressed to [0].
2. The corresponding power cable(for your
country) have to be inserted into the Power
supply socket at back of printer. The flat side of
power plug has to face towards the right of the
D6.
3. The connector has to be inserted at the back
of the D6 plus, in the round hole next to the
on/off switch and USB slot. The flat side of the
power plug has to face towards the top of the
D6 plus.
4. Now plug the internal power supply into the
wall socket.
Detaching the power supply
1. If the power supply has to be detached, the
first step is to make sure the D6 plus turned
off. This is done by pressing the power
switch to 0.
2. Next take the power plug out of the wall
socket.
3. The plug has a sliding collar. When removing
the plug from the machine, gently slide the collar
outwards which will release the plug and allow it
to come out with ease.
CAUTION: Please make sure not to pull the
cable. Excessive force may result in breaking this
component.
4. The main plug can be detached by pulling it
out gently.
