Setting up the Screen

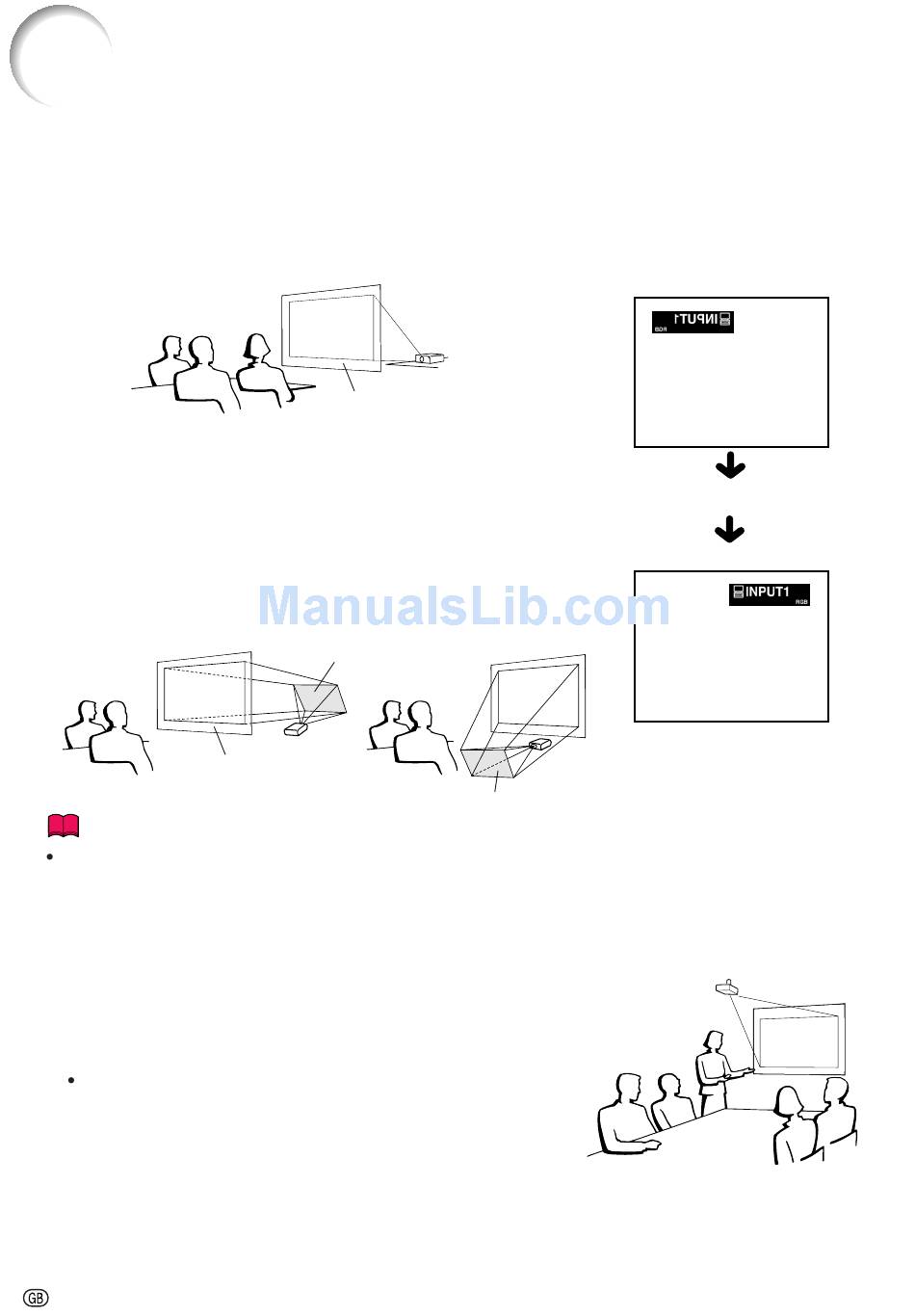

Projecting a Reversed Image

Projection from behind the Screen

I Place a translucent screen between the projector and the
audience.
I Reverse the image by setting "Rear" in the "PRJ Mode" menu.
(See page 49.)
Audience

Projection Using a Mirror

I Place a mirror (normal flat type) in front of the lens.
I When the translucent screen is placed on between the mir-
ror and audience, set to "Front" in the "PRJ Mode" menu.
(See page 49.)
I When the mirror is placed on the audience side, set to "Rear"
in the "PRJ Mode" menu. (See page 49.)
Set to "Front"
Translucent screen
Audience
Info
When using a mirror, be sure to carefully position both the
projector and the mirror so the light does not shine into the
eyes of the audience.
Ceiling-mount Setup
I It is recommended that you use the optional Sharp ceiling-
mount bracket for this installation.
Before mounting the projector, contact your nearest Sharp
Authorized Projector Dealer or Service Center to obtain the
recommended ceiling-mount bracket (sold separately).
AN-B10T ceiling-mount bracket, its AN-TK201 and
AN-TK202 extension tubes (for countries other than the
U.S.A.).
I Be sure to adjust the position of the projector to match the
distance (H) from the lens center position (see page 57) to
the lower edge of the image, when mounting the projector on
the ceiling.
I Do not mount the projector upside down.
-58
Translucent screen
Set to "Rear"
Mirror
Audience
Mirror
When the image is projected from
behind the screen using the default
setting.
MOn-screen Display
Set to "Rear".
MOn-screen Display
The image is reversed.
