Installation And Connection - SKF LUBRILEAN Basic Operating Manual

®
L L Basic - Installation and Connection
UBRI EAN

Installation and Connection

The system may be connected
only by accordingly qualified and
instructed personnel. Comply
with the notes in this operating
manual.
The minimum-quantity lubrica-
tion system may be operated
only under the specified maxi-
mum operating temperature.
Higher pressures are dangerous
for both people and the machine.
The minimum-quantity lubrication system
®
L L Vario is equipped with a bracket
UBRI EAN
with which the minimum-quantity lubrication
system can be fastened to the machine tool.
Also observe the notes in the general informa-
tion part of the operating manual for installation
and connection of the minimum-quantity lubri-
cation system.
The dimensions for the installation of the mini-
mum-quantity lubrication system L
Basic can be seen in figure B - 2.
®
L
UBRI EAN

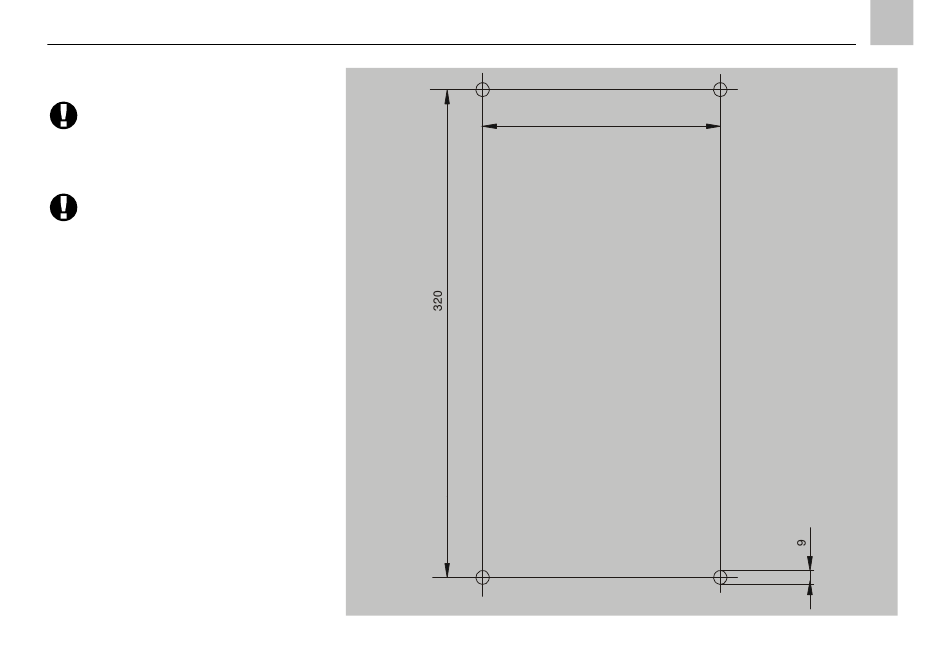

Figure B - 2. Drilling scheme for installing the L
160
®
L Basic
UBRI EAN
EN
Page B - 4
