Done Button

Will return you to the View Screen.
E.6 Manual Screen
Figure E.15 is the Manual Screen. It is shown when the Manual Button is pressed on the View Screen. It allows
trouble shooting of the system.
Caution should be used as all system safety features are disabled during Manual operation.

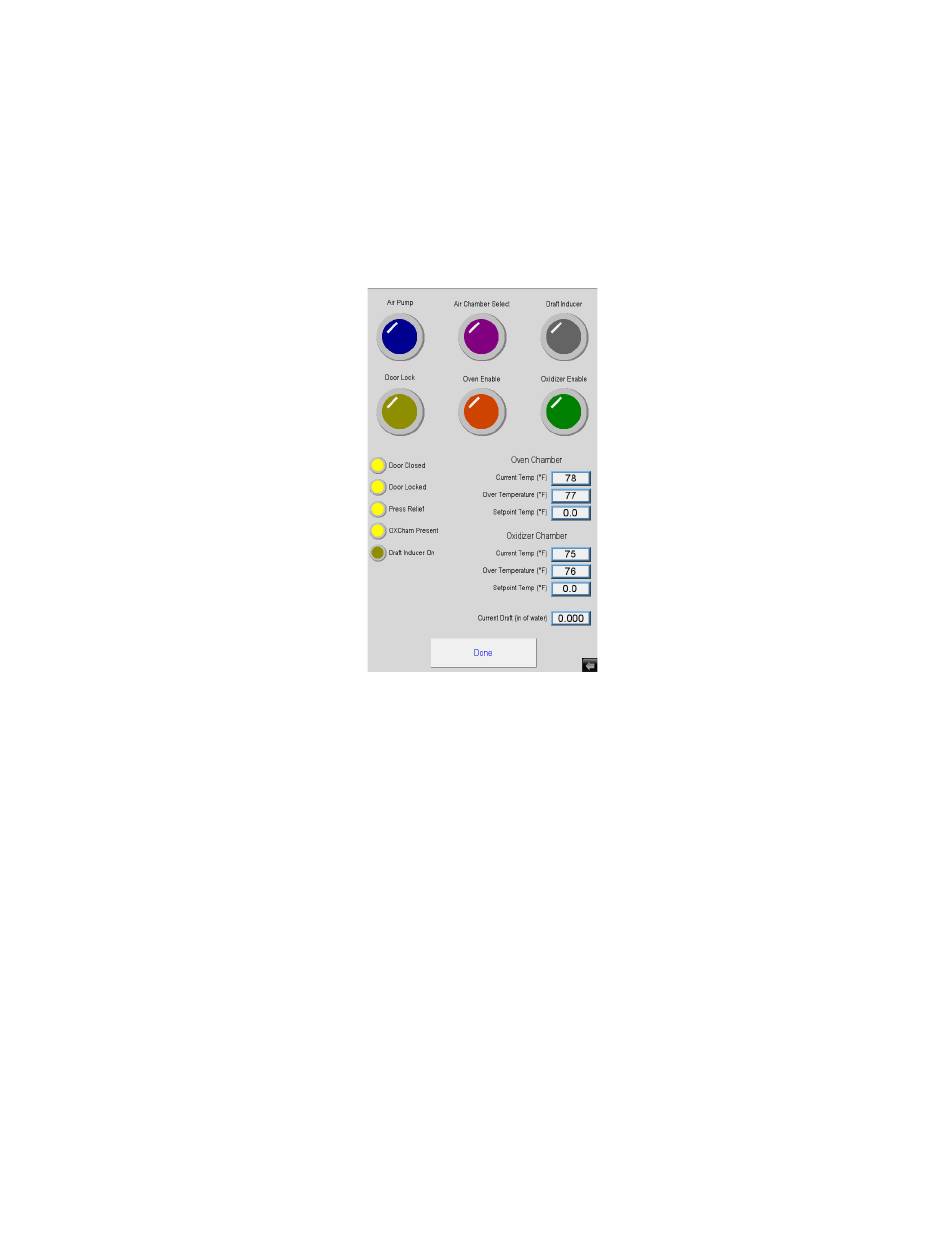

Figure E.15 - Manual Screen

Six Buttons Across Top of Screen

Allow you to turn individual sub-systems on and off to test them.

Four Indicators on the Left Side

Show which inputs the system sees.

Values on the Right Side

Show the current temperature and over temperature being reported for the oven and oxidizer chambers.

Set Point for Both Oven and Oxidizer Chamber

These values are locked at a maximum value of 500° to eliminate the risk of explosion.
24 MAN - Pyrolytic Oven - REV: Original | E. Software Overview
