Oven Soak

Indicates the oxidizer chamber is stable at temperature, after which the oven starts to soak temperature. It is at this
stage that "smoke" is generated to burn off in the oxidization chamber. The Oxidization chamber and the oven will
interact so that the oxidization chamber is not overloaded. The system will stay here until the interaction dies down
and the oven is at soak temperature and stable.

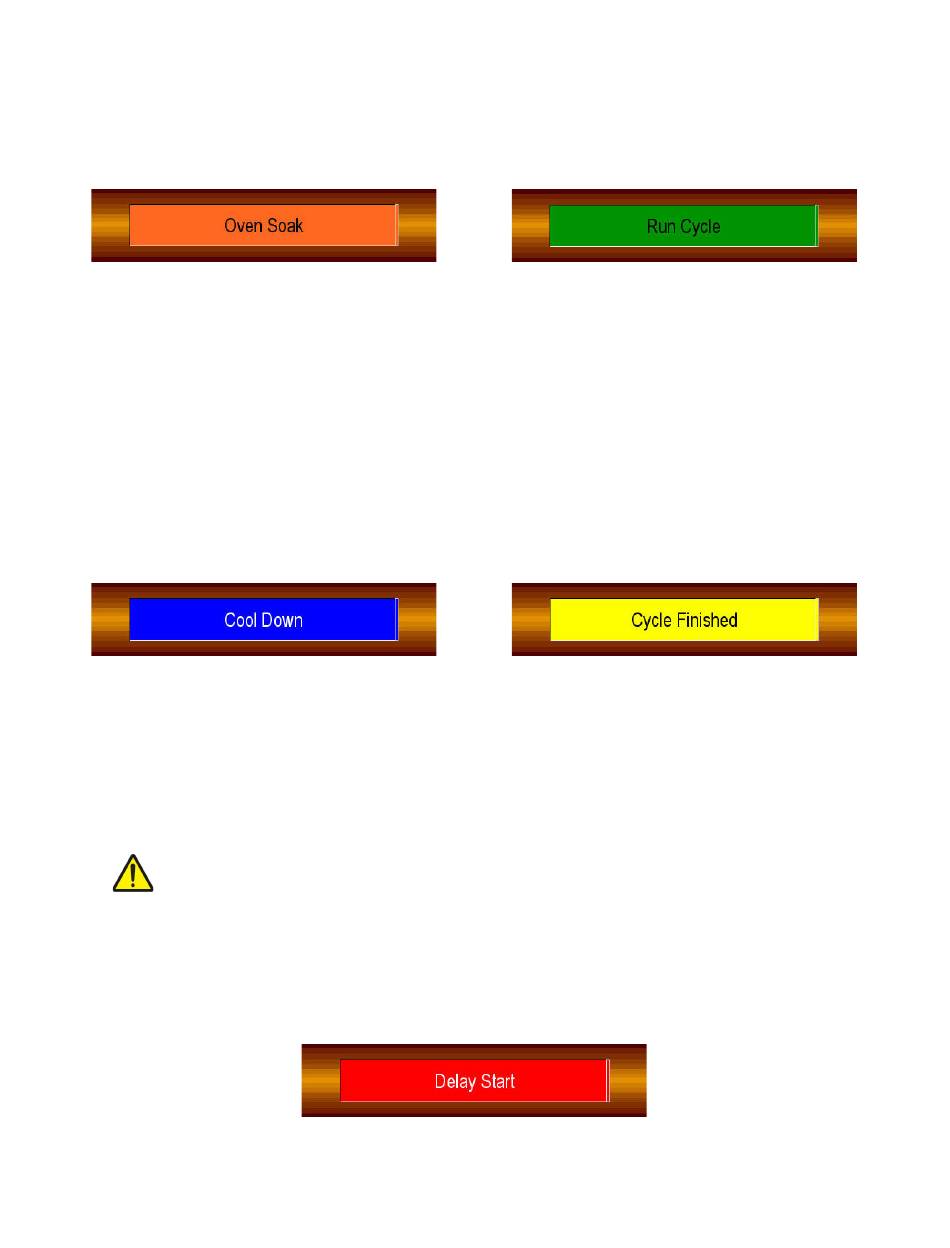

Figure E.7 - Oven Soak State Status Bar

Run Soak

Starts when the oven is at the soak temperature and stable. The oven will change to the cycle temperature and sit in
this state until the cycle time has expired.

Cool Down

Starts when the run cycle has timed out. The oxidizer chamber and oven shut off and start to cool down. The system
will stay here until the oven drops below the cool down temperature.
Figure E.9 - Cool Down State Status Bar

Cycle Finished

Starts when the oven temperature has dropped below the cool down temperature and the system is waiting for the
operator to press the End Button and remove the parts.
CAUTION: When the oven unlocks to allow the removal of parts, remember that they are still
500°F and you will need protective equipment to handle them.

Delay Start

Indicates the system has been set up to start the oven cycle automatically after a time delay. You can think of this
like a "coffee timer".
20
Figure E.10 - Cycle Finished State Status Bar
Figure E.11 - Delay State Status Bar
MAN - Pyrolytic Oven - REV: Original | E. Software Overview
Figure E.8 - Run Cycle State Status Bar
