E.3 View Screen

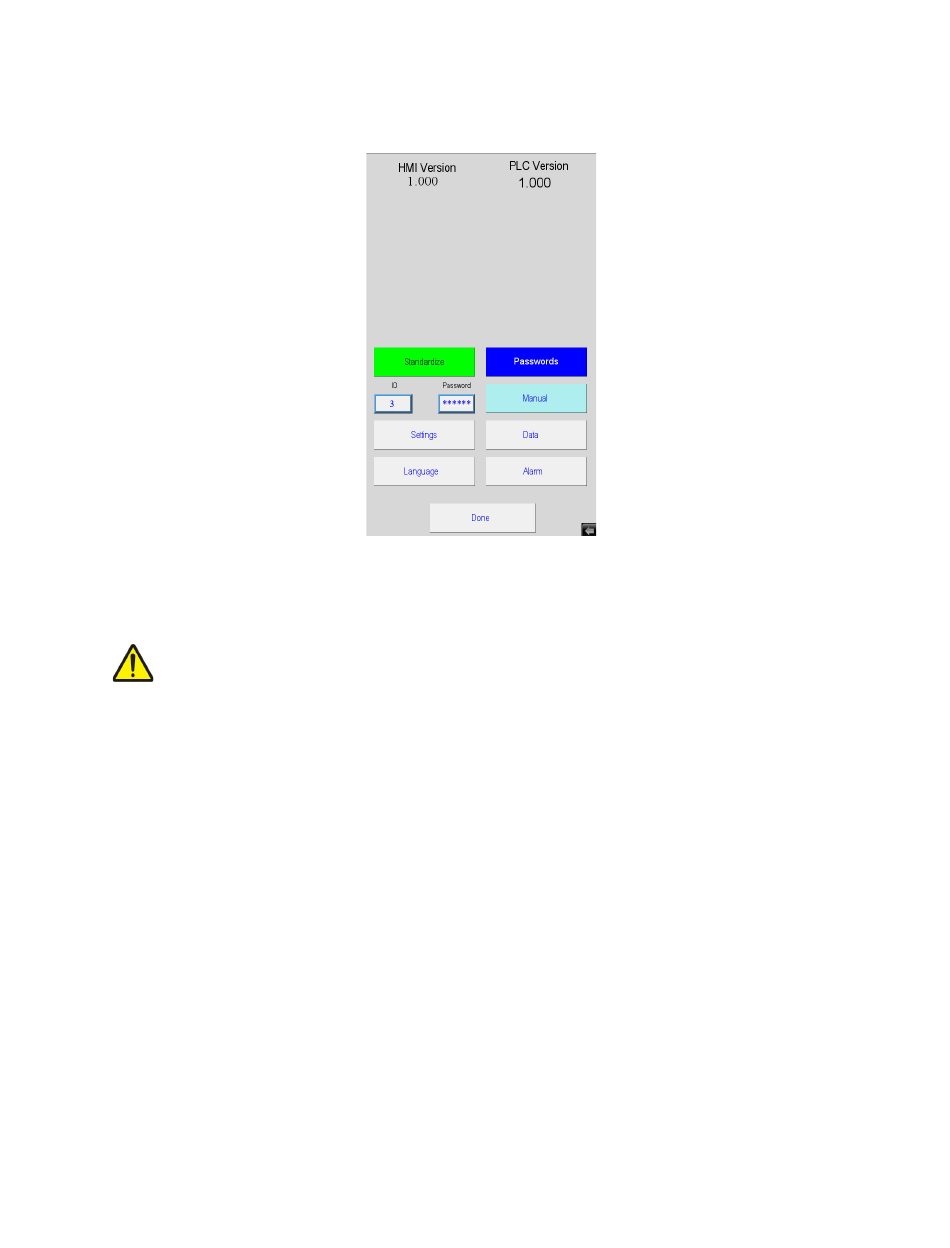

Figure E.12 shows the View Screen. It is shown anytime the View Button is pressed on the Main Screen. It allows
access to the rest of the screens in the system.
NOTE: If the system is not idle this button is not visible and you will not be able to get to this
screen to make changes.
The screen will show the current version of the software in the PLC and HMI. This is very important information, and
is most often ask for when calling into ATS service.
ID
A user ID should be set to the user access you wish to use.

Password

Associated with the User ID and used to access other screens. When the correct ID and Password are entered
other buttons (colored on the above screen) will be displayed.

Manual Button

Will not be displayed until the correct ID and Password has been entered. Once it is displayed, pressing it will go to
the manual screen. (Default ID: 1, Password: 111111).
MAN - Pyrolytic Oven - REV: Original | E. Software Overview
Figure E.12 - View Screen
