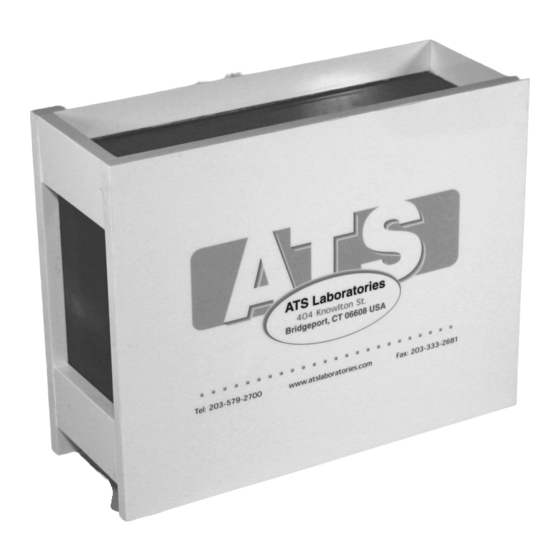

- Page 1 Model 570 Multipurpose - Endoscopic Phantom August 2013 ATS Laboratories, Incorporated 900 Asbury Ave Norfolk, VA 23513 USA Tel: 1-800-617-1177 Fax: 1-757-857-0523 cirsinc.com admin@cirsinc.com Website: Email:...
-
Page 2: Table Of Contents
The rubber-based tissue-mimicking material used in the Model 570 has a sound velocity of 1450 m/s when measured at room temperature (22-24°C). The line targets and anechoic target structures have been physically positioned to compensate for the differences in the speed of sound, assuring accuracy of measurements. -
Page 3: Tissue Mimicking Materials
Scan the Model 570 Multipurpose Endoscopic phantom, while adjusting the controls to produce the best possible image. If the bottom of the phantom is visualized, adjust the depth of penetration until only the lower targets are visualized without artifacts produced from the work surface. -
Page 4: General Guidelines For Setting Up The Phantom For Scanning
+6 to -3 dB are provided to evaluate the system's displayed dynamic range and gray scale processing performance. The Model 570 offers a new and improved scan surface design to easily accommodate linear, sector, endoscopic probes and mechanical sector probes such as used for rectal scanning. -
Page 5: Tests Performed
Tests Performed Dead Zone or Ring-Down (A1 & A2) Functional Resolution (F1, F2) • • Horizontal Measurement Calibration Linear Focal Zone (B1, B2 or F) • • (C1&C2) Horizontal Measurement Calibration Sector (C1 & Axial & Lateral Resolution (E1, E2, E3) •... -
Page 6: Model 570 Specifications
Specifications General General Tissue Mimicking Material Tissue Mimicking Material Overall Dimensions 270 x 215 x 96 cmType Urethane rubber Housing Material PVCFreezing Point < -40°C Scan Surfaces 2Melting Point > 100°C Scan Wells 1Attenuation Coefficient 0.5 dB/cm/MHz ± 5.0% Weight 4.55 Kg (10 lb)Speed of Sound 1450 m/s ±1.0% at 23°... -
Page 7: Vertical Measurement Calibration
The system's dead zone should remain consistent from week to week when using the same instrument settings and Model 570 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system's ability to resolve these targets, corrective action should be considered. -
Page 8: Axial - Lateral Resolution
The system's ability to resolve the array targets at given depths should remain consistent from week to week when using the same instrument settings and Model 570 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system's ability to resolve these targets, corrective action should be considered. -
Page 9: Sensitivity (Maximum Depth Of Penetration)
The system's focal zone should remain consistent from week to week when using the same instrument settings and Model 570 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system's ability to resolve these targets, corrective action should be considered. -
Page 10: Gray Scale & Displayed Dynamic Range
The system's gray scale processing should remain consistent from week to week when using the same instrument settings and Model 570 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system's ability to resolve these targets, corrective action should be considered. -
Page 11: Care Of Rubber-Based Phantoms
The lifetime of this phantom is estimated to be between 7 to 10 years from the date of manufacturing. If ATS Laboratories, Incorporated, deems the phantom to be defective, at its sole option, the Phantom will be repaired or replaced free of charge, in a reasonable amount of time. - Page 12 Display Devices used for interpretation Phantom Baseline Distance Spatial Resolution Error/Change Distance Measured Measured Axial Resolution Electronic Calipers Display Devices used for interpretation Lateral Resolution Electronic Calipers Display Devices used for interpretation ATS Laboratories Incorporated Tel: (800) 617-1177 Webpage: cirsinc.com Email: admin@cirsinc.com...
- Page 13 Target Shape - Circular Target Edges - Clear/Sharp Target Edges - Clear/Sharp Yes/No Targets Baseline Display** Baseline Display** Baseline Display** (dB) Yes/No Yes/No Yes/No Yes/No Yes/No Yes/No Summary of Results: Signature: ATS Laboratories Incorporated Tel: (800) 617-1177 Webpage: cirsinc.com Email: admin@cirsinc.com...
