E.2 Main Screen

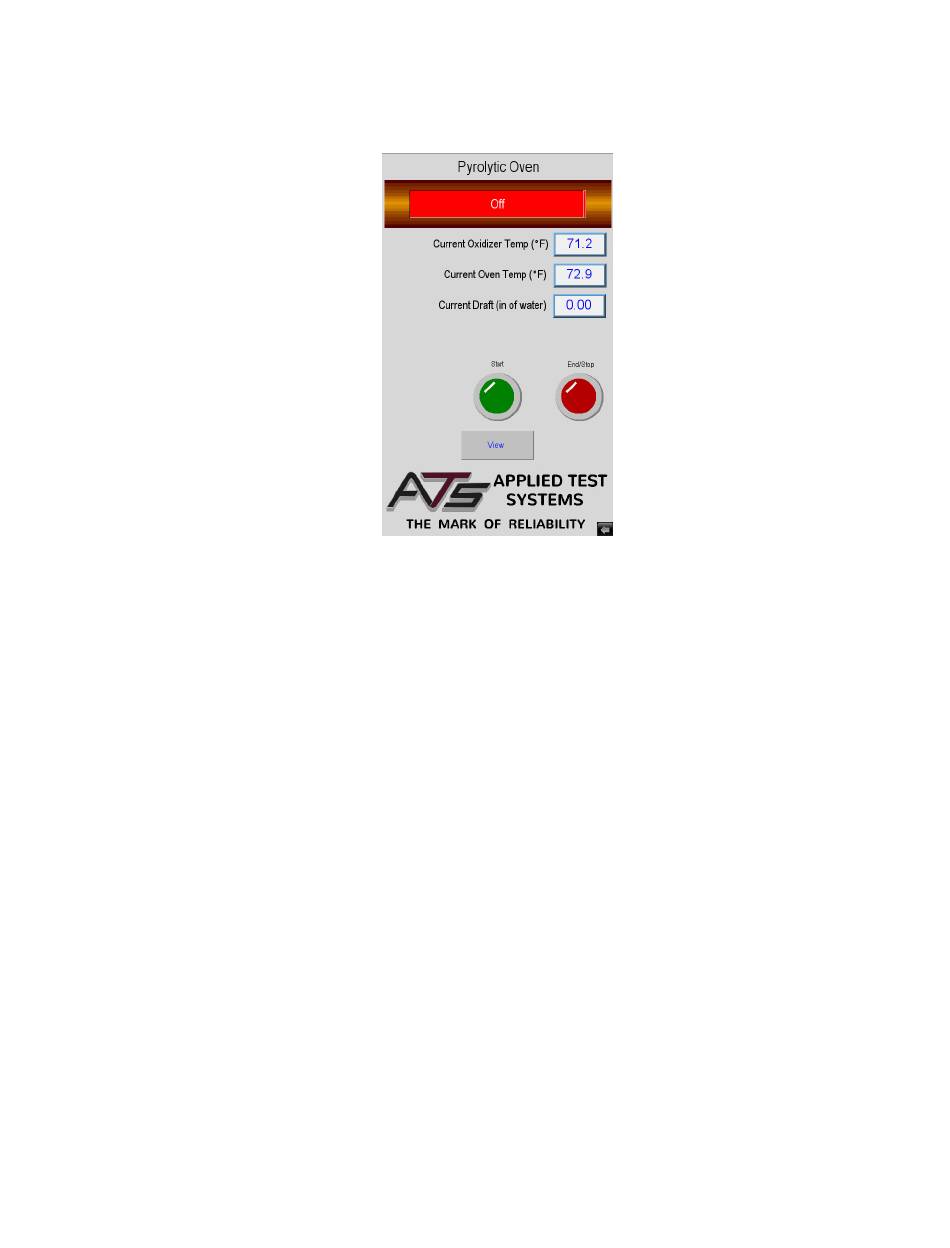

Figures E.2 shows the Main Screen that is shown when the Pyrolytic Oven is started. It allows you to setup and run
oven cycles.
Figure E.2 - Main Screen
This screen will show values for Oxidizer chamber temperature and Oven temperature. It also has several controls
to set-up and run the oven.

Start Button

Used to tell the system that parts are loaded, to start the oven cycle.

End/Stop Button

Used to tell the system to finish the cycle. It can also be used anytime the oven is in cycle to stop the cycle. When
the run cycle has finished this button will blink to show the cycle is finished. If this button is pressed anytime that the
oven is hot the system will go into cool down before you can open the door.

Alarm Button

If the system has an Alarm, Warning, or Fault the Alarm Button will be displayed and the Start Button is hidden. This
can be seen in Figure E.3. The operator will have to press the Alarm Button to go to the alarm screen and clear the
alarm condition before the system can start another cycle.

View Button

Used to get to all other screens in the system for Set-up. This will be hidden and a Graph Button will be displayed
when a cycle is running.
