E.5 Settings Screen

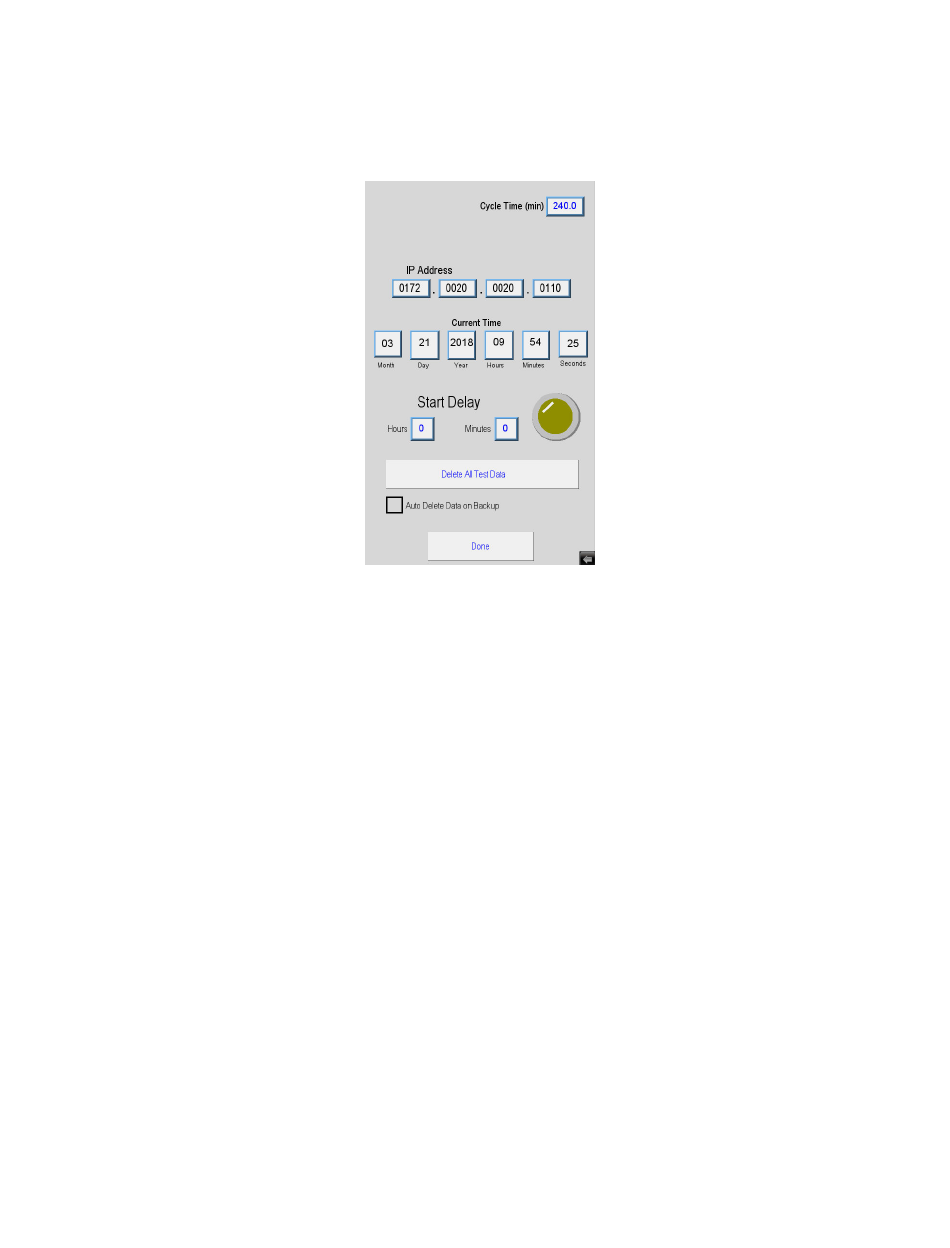

Figure E.14 shows the Settings Screen. It is shown when the Settings Button is pressed on the View Screen. It
allows set up of the system.
Figure E.14 - Settings Screen

Cycle Time

The amount of time the oven sits at cycle temperature before it shuts off and goes into cool down.

IP Address

Used to allow someone at a remote location to monitor the system using a VNC viewer program.

Current Time

Allows the operator to set the current time of the system. This affects the oven clean and catalyst replacement
warning times. It is also used for alarm and data logging times.

Preheat Delay

Used to allow the system to be set up to start automatically after a time delay. You can think of it like a "coffee timer".
Just enter the Hours and Minutes you wish to wait before oven start and press the yellow button. The button will light
to show that a delay has been set. The delay button is a toggle switch, so to turn off a delay that has been started
just press the button again. Note the status of the system will show Delay Start when it is active and the remaining
time before cycle start is shown.
