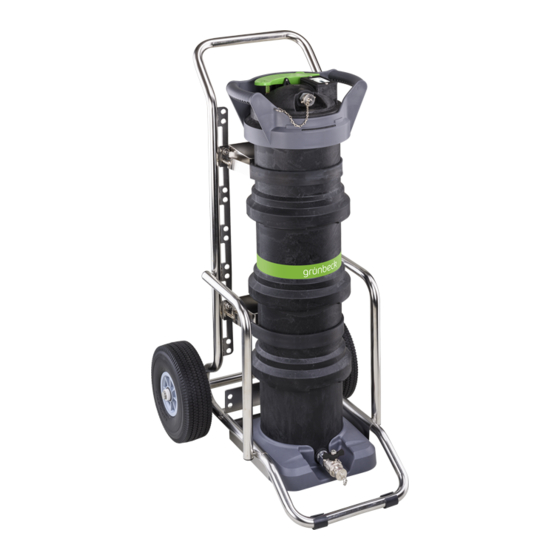

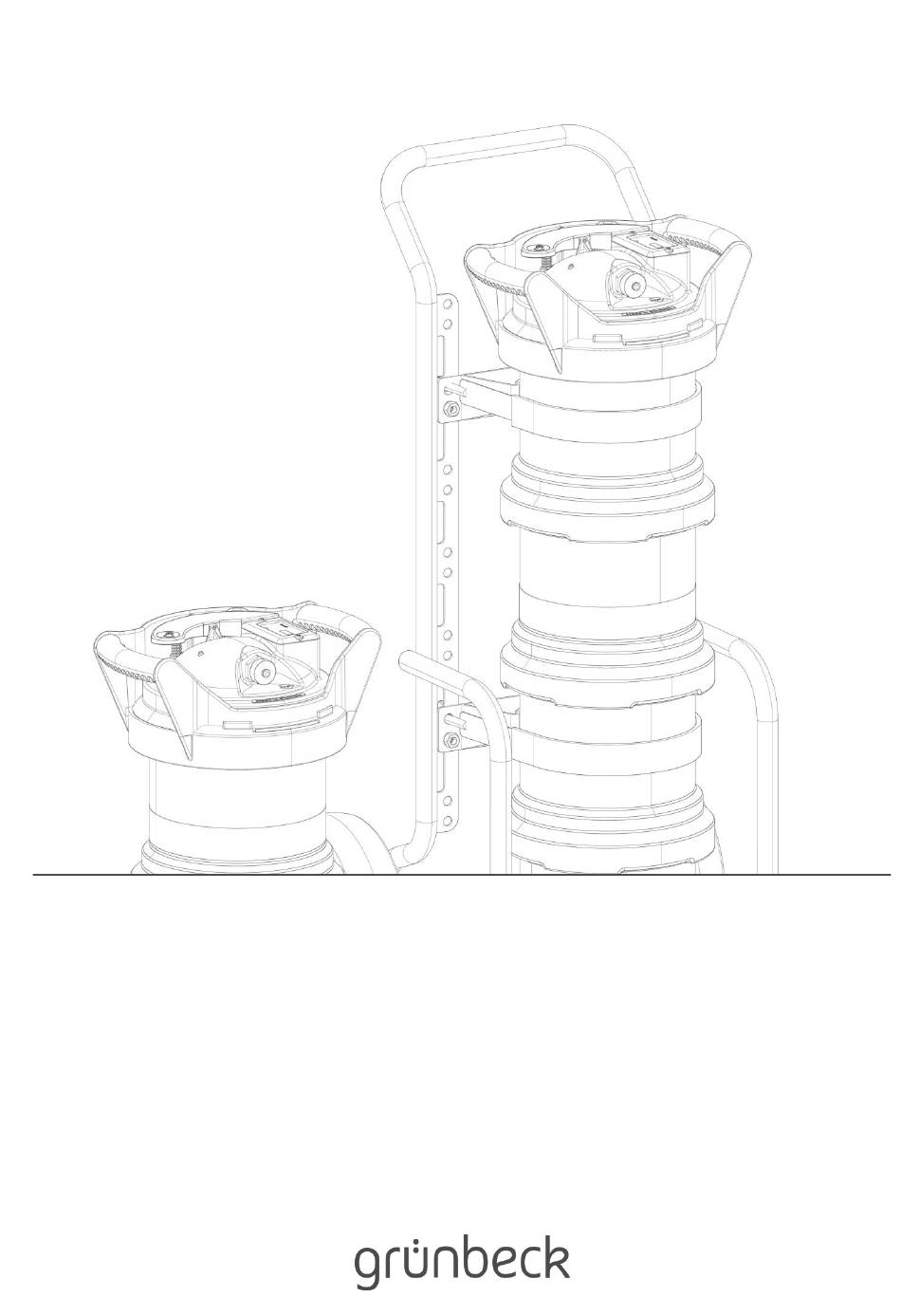

- Page 1 We understand water. Mixed-bed cartridge | desaliQ:MA Operation manual...
- Page 2 Central Contact Germany Sales Phone +49 9074 41-0 Technical Service Phone +49 9074 41-333 Fax +49 9074 41-120 Availability Monday to Thursday 7:00 am - 6:00 pm Friday 7:00 am - 4:00 pm Your local point of contact: see accompanying list of representatives Copyright The manufacturer reserves the copyright to this operation manual.
-
Page 3: Table Of Contents
10.1 Capacity curve of desaliQ:MA9 mixed-bed Product description ..........9 cartridge ..............23 10.2 Capacity curve of desaliQ:MA13 ......24 Intended use .............. 9 10.3 Pressure loss curves of desaliQ:MA mixed-bed Product components ..........9 cartridge ..............24 Accessories ............. 10 Functional description ..........11 Other information .............25... -
Page 4: About This Manual
About this manual About this manual Other applicable documents The following documents shall be deemed as applicable documents for the desaliQ:MA mixed-bed cartridge: ● The manuals of all accessories used shall apply. Intended audience This manual is intended for specialist installers. -
Page 5: Validity Of The Manual
About this manual 1.5.1 Instructions Single-step instructions or instructions where the sequence of the actions is unimportant are indicated as follows: ► Step Multi-step instructions where the sequence of the actions must be observed are indicated as follows: 1. First step a First step of the first action b Second step of the first action 2. -
Page 6: Type Designation Plate
About this manual Type designation plate The type designation plate is located on the rear side of the desaliQ:MA above the base. Please specify the data shown on the type designation plate in order to speed up the processing of your enquiries or orders. Therefore enter the necessary information in the table below to have it readily available whenever necessary. -
Page 7: For Your Safety
For your safety For your safety Safety measures ● Carefully read this operation manual before operating your product. ● Install the product in a frost-free room. Otherwise, the system may suffer irreparable damage. The consequence can be a water damage. ●... -
Page 8: Regulations
● Possible flooding of the rooms if no floor drain is provided. ► Install a water stop device. Approved resin The desaliQ:MA mixed-bed cartridge may only be operated with the following resin: ● desaliQ:MA resin bag Other resins are not allowed. -
Page 9: Product Description
Product description Product description Intended use The desaliQ:MA mixed-bed cartridges are designed to produce ultra-pure water and can be used in the following sector: ● Full demineralisation of raw water of drinking water quality The desaliQ:MA mixed-bed cartridges cannot be used in the following sectors: ●... -
Page 10: Accessories
Product description Accessories You can retrofit your product with additional accessories. Please contact your local Grünbeck representative or Grünbeck’s headquarters in Hoechstaedt for details. Image Product Order no. ® GENO-therm hose set 707 850 Consisting of: two drinking water hoses of 1.5 m in length (DVGW W270 and KTW-A certified). The raw and pure water hose each have two 3/4"... -
Page 11: Functional Description
Product description Functional description 3.4.1 Physical Via an interior distribution system, 2 (desaliQ:MA9) or 4 (desaliQ:MA13) resin bags filled with mixed-bed resin are steadily flown through from bottom to top. The fully demineralised water, the so-called demi water, is directed to the tank outlet via the collection element located at the tank lid. -
Page 12: Installation
Installation Installation Item Designation Item Designation ® Drinking water filter pureliQ:RD GENO-therm filling device Basic ® GENO-therm hose set Fig. installation example for desaliQ:MA9 mixed-bed cartridge Requirements with regard to the installation site Please observe local installation directives, general guidelines and technical specifications. Install the product where it is not exposed to: ●... -
Page 13: Checking The Scope Of Supply
Installation CAUTION: Danger due to mechanical energy! System components may be subject to overpressure. ● Danger of injury and damage to property due to escaping water and unexpected movement of system components. ► Fit a suitable pressure reducing device into the pressurised line upstream of the mixed-bed cartridge. -
Page 14: Installing The Product
Installation Installing the product 4.3.1 Installation with filling device 1. Set the mixed-bed cartridge down in an upright position in a stable location. Note: Risk of damage to the product. ● Screwing the double nipple in too far may result in damage to the product. -
Page 15: Start-Up
Start-up Start-up Preparations ► Make sure that the resin bag has been fitted correctly: Seam parallel with the rim of the container, tear-off sticker facing upwards. How to start up the product 1. Slowly increase the water supply. 2. Press the green lever to bleed the mixed-bed cartridge. 3. -
Page 16: Operation
Operation Operation Querying the system status ► Inspect the mixed-bed cartridge on a regular basis during operation. ► Make sure that all hoses are securely connected. ► Check the mixed-bed cartridge and the connections for leaks. ► Check if the lid is seated securely. ►... -
Page 17: Transportation And Storage Between Assignments
Operation If the resin bag is incorrectly positioned, raw water will flow past the resin bag. As a result, the system will not be fully utilised and the conductivity will increase. 3. Reattach the lid. 4. Secure the mixed-bed cartridge in position using its legs. 5. -
Page 18: Cleaning, Inspection, Maintenance
Cleaning, inspection, maintenance Cleaning, inspection, maintenance Intervals The following tasks must be carried out in compliance with DIN EN 806 Task Interval Execution Inspection 2 months Specialist installer Maintenance 6 months Specialist installer Cleaning NOTE: Do not clean the product with alcohol- or cleaning agents containing solvents! ●... -
Page 19: Consumables
Consumables NOTE: Danger of damaging the system if unsuitable consumables are used. ► Only use genuine consumables. Product Order no. desaliQ:MA resin bag 2 x 6 l 707 435 desaliQ:MA resin bag 4 x 6 l 707 445 Spare parts NOTE: Risk of damage to the system if unsuitable spare parts are used. -
Page 20: Malfunctions
Malfunctions Malfunctions If malfunctions do occur that cannot be remedied by the instructions given below, contact Grünbeck's technical service/authorised service company - see www.gruenbeck.de. ► Have your equipment data to hand (see chapter 1.7). Malfunctions Explanation Remedy No flow. The shut-off valves are not Open the shut-off valves open completely. -
Page 21: Disposal
Disposal Disposal ● Do not dispose of the packaging, the products and/or accessories in the household waste. ● Comply with the applicable national regulations for disposal. ● Make sure that the packaging, the product and the accessories are disposed of properly. -
Page 22: Technical Specifications
Technical specifications Technical specifications desaliQ:MA mixed-bed cartridge Order no.: 707 430 707 440 Dimensions and weights A Height [mm] 1080 B Width [mm] C Depth [mm] Number of resin bags [pcs] Filling volume of mixed-bed resin Shipping weight [kg] Connection data Nominal connection ¾“... -
Page 23: Capacity Curve Of Desaliq:ma9 Mixed-Bed Cartridge
Technical specifications General Water temperature [°C] 5 - 30 Ambient temperature [°C] 5 - 40 10.1 Capacity curve of desaliQ:MA9 mixed-bed cartridge Item Designation Item Designation Volume of demineralised water in m³ Conductivity of raw water in µS/cm 23 | 32... -
Page 24: Capacity Curve Of Desaliq:ma13
Capacity curve of desaliQ:MA13 Item Designation Item Designation Volume of demineralised water in m³ Conductivity of raw water in µS/cm 10.3 Pressure loss curves of desaliQ:MA mixed-bed cartridge Item Designation Item Designation Pressure loss in bar Flow in l/h 24 | 32... -
Page 25: Other Information
Other information Other information 11.1 Explanation of terminology Drinking water Drinking water is any water that is intended for use in the domestic environment for drinking and all other food preparation purposes, for personal hygiene and cleaning as well as for cleaning objects that do not only temporarily come into contact with foodstuffs or the human body. -
Page 26: Index
Index Index Consumables ..............19 Safety ................. 7 Spare parts ..............7, 19 Start-up ................15 Inspection ................18 Installation ................. 12 Type designation plate ............6 Maintenance ..............18 Wearing parts ..............19 Resin bag ..........6, 8, 13, 15, 16, 22 26 | 32... -
Page 27: Notes
Notes Notes 27 | 32... -
Page 28: Notes
Notes Notes 28 | 32... -
Page 29: Notes
Notes Notes 29 | 32... -
Page 30: Notes
Notes Notes 30 | 32... - Page 32 Grünbeck Wasseraufbereitung GmbH Josef-Grünbeck-Strasse 1 89420 Hoechstaedt/Germany +49 9074 41-0 +49 9074 41-100 info@gruenbeck.com For more information go www.gruenbeck.com to www.gruenbeck.com...
