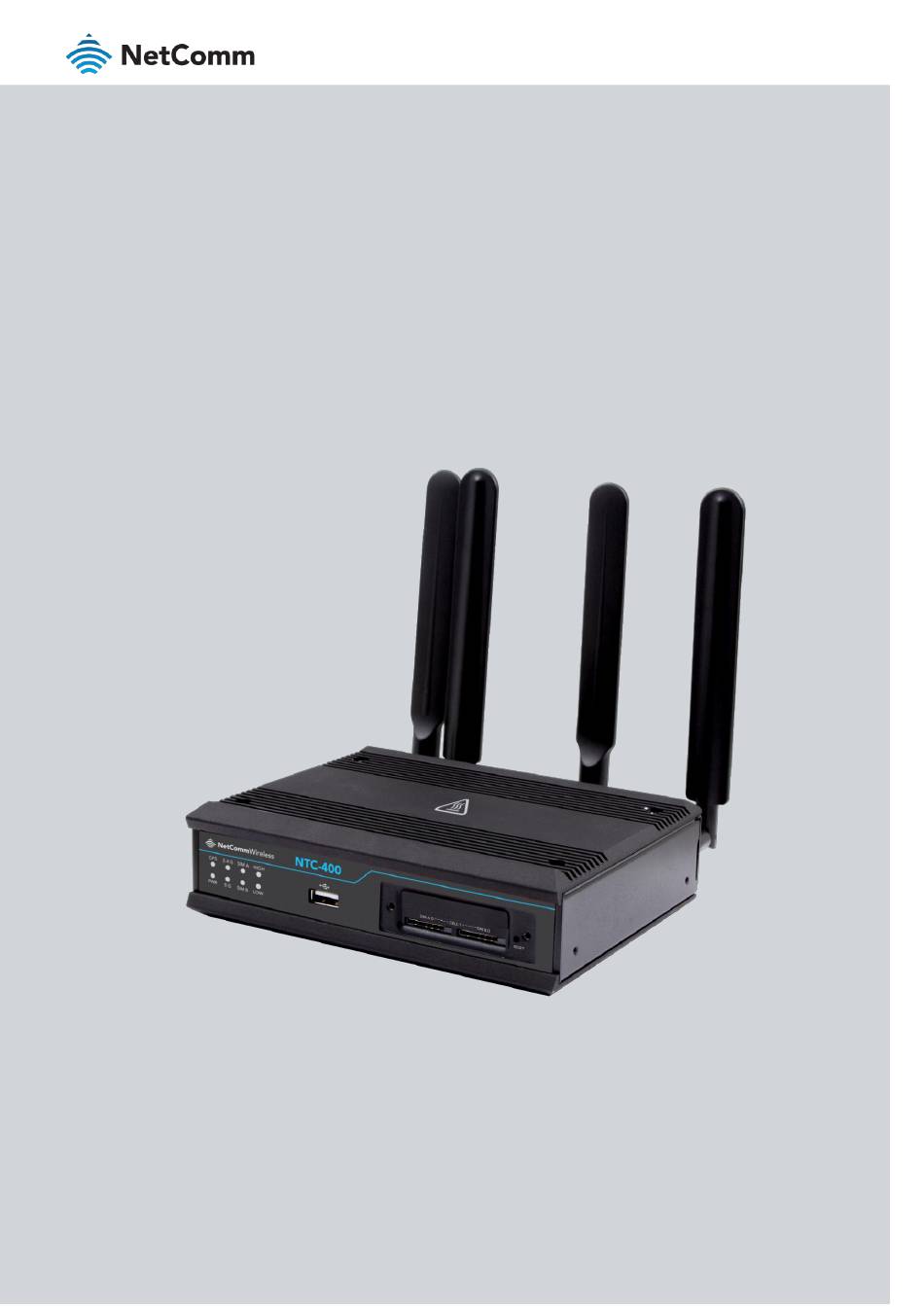

- Page 1 Telstra Private IP WAN Configuration Guide NTC-402 Doc No. CG01068...
- Page 2 Copyright© 2018 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
-
Page 3: Table Of Contents
Set LAN IP to Framed Route ....................................10 Apply Settings - Refresh ....................................... 10 Log in Using SIM Service ...................................... 11 Confirm connection status ....................................11 NTC-402 – Telstra Private IP WAN Configuration Guide 3 of 11 CG01068 v. 1.0 October 2018 © NetComm Wireless 2018... -
Page 4: Overview
The following diagram depicts a Wireless IP WAN connection with a NetComm Wireless NTC-402 router using framed routing to allow an IP subnet that is part of the IP WAN to sit behind the NTC-402. The settings for this hypothetical example are set out in the table below. -
Page 5: Configuration Procedure
Configuration Procedure Enable SIM and Log in Please follow below steps to set up IP WAN on your NTC-402 router. Connect the NetComm Wireless NTC-402 router via the following steps: Use a small Phillips screwdriver to remove the two screws securing the metal plate covering the two SIM slots on the front of the router. -
Page 6: Change Apn
Manual Configuration – this will open the APN field on the Manual Configuration next line. Enter the APN (Access Point Name) of your service telstra.corp provider. NTC-402 – Telstra Private IP WAN Configuration Guide 6 of 11 CG01068 v. 1.0 October 2018 © NetComm Wireless 2018... -
Page 7: Disable Nat And Network Monitoring
While remaining on the Internet Setup tabbed page scroll down to the 3G/4G Connection Common Configuration section: Figure 4 – 3G/4G Connection Common Configuration section NTC-402 – Telstra Private IP WAN Configuration Guide 7 of 11 CG01068 v. 1.0 October 2018... -
Page 8: Disable Spi
Allow Ping from WAN Enable so that ping tests can be performed over the Enable wireless IP WAN. Table 4 – Firewall Options NTC-402 – Telstra Private IP WAN Configuration Guide 8 of 11 CG01068 v. 1.0 October 2018 © NetComm Wireless 2018... -
Page 9: Enable Telnet, Ssh And Http/S Wan
Select WAN Enable Set the Service Port to 23 For SSH (Secure SHell) make the following settings: Select LAN Enable NTC-402 – Telstra Private IP WAN Configuration Guide 9 of 11 CG01068 v. 1.0 October 2018 © NetComm Wireless 2018... -
Page 10: Set Lan Ip To Framed Route
Open the command line and type: ipconfig /release Press the Enter button. Figure 8 – Command Prompt: ipconfig /release Wait until the system is reconfigured. NTC-402 – Telstra Private IP WAN Configuration Guide 10 of 11 CG01068 v. 1.0 October 2018 © NetComm Wireless 2018... -
Page 11: Log In Using Sim Service
Go to the WAN Interface IPv4 Network Status section to confirm that you are connected to the Telstra network using the correct IP Address, etc.: Figure 11 – WAN Interface IPv4 Network Status NTC-402 – Telstra Private IP WAN Configuration Guide 11 of 11 CG01068 v. 1.0 October 2018...
