  • Page 1 NetComm GAteWAy SerieS ™ ADSL2+ Wireless N150 Modem Router USER GUIDE...

  • Page 2: Important Safety Instructions

    Never dispose of this electronic equipment along with your household waste. You may be subject to penalties or sanctions under the law. Instead, ask for disposal instructions from your municipal government. Please be responsible and protect our environment. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 3: Table Of Contents

    Installation & Setup ...8 ADSL2+ Wireless N150 Modem Router Configuration ...14 Web User Interface ...17 Web Configuration Overview ...18 Accessing the ADSL2+ Wireless N150 Modem Router Web User Interface ...18 Quick Start ...19 Interface Setup ...22 Internet ...23 LAN ...24 Wireless ...25...

  • Page 4: Introduction

    Introduction...

  • Page 5: Features

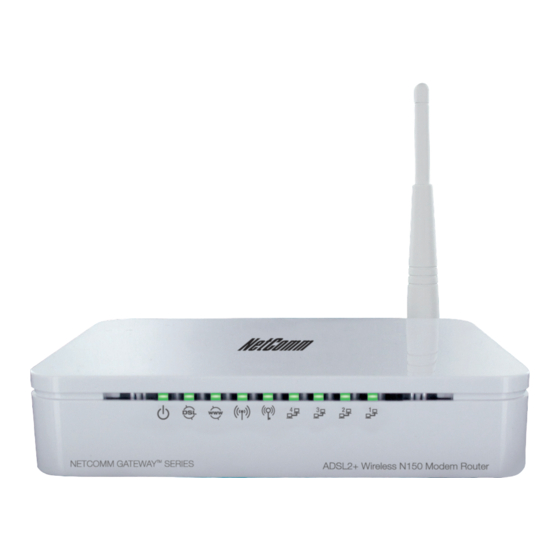

    Introduction The NetComm NB14WN ADSL2+ Wireless N150 Modem Router allows you to connect to a broadband Internet service and share the connection with multiple users. Also including a host of other features that exist to make your experience as seamless as possible, the NB14WN is an ideal entry level Wireless N ADSL2+ product.

  • Page 6: Back Panel Connectors

    ON/OFF LAN1~4 LINE RESET Side Panel Connector WLAN ADSL2+ Wireless N150 Modem Router User Guide Flash Waiting for device ready Disconnect to DSLAM Transmit / Receive Data Transmit / Receive Data Start WPS peer within 2 minutes Transmit / Receive Data Description Connects to your NB14WN’s 12VAC power adaptor...

  • Page 7: Factory Default Settings

    DHCP: DHCP Server: Enable Hardware Requirements To use the ADSL2+ Wireless N150 Modem Router, please have following hardware / accessories ready. A PC with a pre-installed Ethernet Adapter (Required) 12VAC power adaptor (Included in the package) RJ-45 Ethernet cable (Included in the package)
  • Page 8 Installation and SetUp...

  • Page 9: Installation & Setup

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Installation & Setup Follow each step carefully and only go to the next step once you have completed the previous step. Connection of the ADSL2+ Wireless N150 Modem Router 1. Connect the supplied RJ-11 cable to the ADSL port on the back of your router to the phone port that supplies your ADSL.
  • Page 10 5. Click “Show icon in notification area when connected” (see screen image in 3. above) then click on “OK” to complete the setup procedures. For Windows Vista-32/64 1. Click on “Start” -> “Control Panel” -> “Network and Sharing Center”. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 11 NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router 2. In the Manage network connections, click on “Manage network connections” to continue. 3. Single RIGHT click on “Local Area connection”, then click “Properties”. 4. The screen will display the information “User Account Control” and click “Continue” to continue.
  • Page 12 1. Click on “Start” -> “Control Panel” (in Category View) -> “View network status and tasks”. 2. In the Control Panel Home, click on “Change adapter settings” to continue. 3. Single RIGHT click on “Local Area Connection”, then click “Properties”. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 13 NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router 4. Double click on “Internet Protocol Version 4 (TCP/IPv4)”. 5. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then click on “OK” to continue. YML14WN www.netcomm.com.au ADSL2+ Wireless N150 Modem Router User Guide...

  • Page 14: Adsl2+ Wireless N150 Modem Router Configuration

    ADSL2+ Wireless N150 Modem Router Configuration...

  • Page 15: Adsl2+ Wireless N150 Modem Router Configuration

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router ADSL2+ Wireless N150 Modem Router Configuration 1. Please insert the supplied CD into your CD-ROM drive. 2. The CD should auto-start, displaying the window shown below. If your CD does not start automatically, go to Windows Explorer, Select your CD drive and double click “autorun.exe”.
  • Page 16 8. A window will pop up informing you of the status 9. Another window will open informing you that the easy configuration is complete. Click on “Exit” to complete the procedure. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 17: Web User Interface

    Web User Interface...

  • Page 18: Web Configuration Overview

    Web User Interface Web Configuration Overview The embedded web configuration allows you to manage the ADSL2+ Wireless N150 Modem Router from anywhere through a browser such as Microsoft Internet Explorer or Netscape Navigator. Accessing the ADSL2+ Wireless N150 Modem Router Web User Interface Step 1.
  • Page 19 Quick Start...

  • Page 20: Quick Start

    Step 2 – Please click “Next” to setup your time zone. Step 3 – Please click “Next” to setup your Internet connection type. This information is supplied to you by your Internet Service Provider. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...
  • Page 21 NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Step 4 - Enter the connection information provided by your ISP and click “Next”. Step 5 - Enter the connection information provided by your ISP and click “Next”. Step 6 – Please click “NEXT” to confirm your changes.
  • Page 22 Interface Setup...

  • Page 23: Interface Setup

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Interface Setup Internet VC Configuration Go to Interface Setup -> Internet. To add or delete an ADSL VC (virtual channel) configuration, enter the information that has been supplied to you by your ISP.

  • Page 24: Lan Configuration

    NAT to run on router mode only, disable the DHCP server on the LAN port, and make sure the routing table has the correct routing entry. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 25: Wireless

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Wireless Wireless Settings Go to Interface -> Wireless to setup the wireless parameters. There are a number of options you can change. Two of the more basic and common options you may wish to change are: SSID The name of your wireless network.

  • Page 26: Wireless Security

    Start WPS Reset to OOB SSID Authentication Type ADSL2+ Wireless N150 Modem Router User Guide Description Check this box to enable WPS function,uncheck it to disable WPS. Select your WPS mode to PIN Code or PBC PIN (Personal Information Number) PBC (Push Button Configuration) This is the WPS PIN code of this wireless router.
  • Page 27 Advanced Setup...

  • Page 28: Advanced Setup

    The static routing function determines the path that the router follows over your network before and after it passes through your router. You can use static routing to allow different IP domain users to access the Internet through this device. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...

  • Page 29: Virtual Server

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Go to Advanced Setup->NAT to setup the NAT features. Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single public IP address or multiple public IP addresses. NAT can also prevent hacker attacks by mapping local addresses to public addresses for key services such as the Web or FTP.

  • Page 30: Dmz Setting

    NAT firewall, you can open the client up to unrestricted two-way Internet access by defining a virtual DMZ Host. Go to Advanced Setup -> QoS to setup QoS features. This option will provide better service of selected network traffic over various technologies. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 31: Vlan

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router VLAN Go to Advanced Setup -> VLAN to enable VLAN features. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.

  • Page 32: Adsl

    VLAN Group Go to Define VLAN Group to setup VLAN group features. ADSL Go to Advanced Setup > ADSL to define and set your ADSL mode and ADSL Type. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 33 Access Management...

  • Page 34: Access Management

    ACL Setting Go to Access Management -> ACL to enable remote management. The user may remotely access the ADSL2+ Wireless N150 Modem Router once setting their IP as a Secure IP Address through selected applications. With the default IP 0.0.0.0, any client would be allowed to remotely access the ADSL2+ Wireless N150 Modem Router.

  • Page 35: Application Filter

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Application Filter Select Application Filter from the drop down box to deny service to a number of preconfigured programs and services URL Filter Select URL Filter from the drop down box to deny service to any URL that you specify SNMP Go to Access Management ->...

  • Page 36: Universal Plug-And-Play (Upnp)

    For example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application. Click Apply to save your settings back to home screen. Apply ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 37: Ddns

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router DDNS Go to Access Management -> DDNS to setup your DDNS parameters. Dynamic DNS allows you to update your dynamic IP address with one or many dynamic DNS services. So anyone can access your FTP or Web service on your computer using DNS-like address.
  • Page 38 Deactivated: When this field is disabled, the DSL device will only send Inform RPC to the ACS server once at the system startup. Interval: Time interval in seconds to send Inform RPC. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...
  • Page 39 Maintenance...

  • Page 40: Maintenance

    Connecting to a Simple Network Time Protocol (SNTP) server allows the router to synchronize the system clock to the global Internet. The synchronized clock in the router is used to record the security log and control client filtering. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...

  • Page 41: Firmware Update

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Firmware Update Go to Maintenance -> Firmware to upgrade the firmware. The new firmware for your router can improve functionality and performance. Enter the path and name of the upgrade file then click the UPGRADE button below. You will be prompted to confirm the upgrade.
  • Page 42 Status...

  • Page 43: Status

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Status Device Info System Status Go to Status -> Device Info to see the router’s information. The System Status page shows the WAN, LAN and the router’s firmware version. The ‘ADSL Line Status’ enables you to check the status of your ADSL connection including how fast data is being transferred.

  • Page 44: Statistics

    Go to Status-> Statistics and select ADSL interface. You can see the traffic Statistics of ADSL interface. WLAN Go to Status-> Statistics and select WLAN interface. You can see the traffic Statistics of Wireless interface. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 45 Appendix...

  • Page 46: Appendix A: Installing Upnp In Windows Example

    Step 2. Click on the Windows Setup tab and select Communication in the Components selection box. Click Details. Step 3. In the Communications window, select the Universal Plug and Play check box in the Components selection box. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...

  • Page 47: Installing Upnp In Windows Xp

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Step 4. Click OK to go back to the Add/Remove Programs Properties window and click Next. Step 5. Restart the computer when prompted. Installing UPnP in Windows XP Follow the steps below to install the UPnP in Windows XP.

  • Page 48: Using Upnp In Windows Xp Example

    Step 1. Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Step 2. Right-click the icon and select Properties. Step 3. In the Internet Connection Properties window, click Settings to see the port mappings that were automatically created. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 49 NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Step 4. You may edit or delete the port mappings or click Add to manually add port mappings. Step 5. Select Show icon in notification area when connected option and click OK. An icon displays in the system tray Step 6.

  • Page 50: Web Configuration Easy Access

    Step 4.An icon with the description for each UPnP-enabled device displays under Local Network. Step 5. Right-click on the icon for your NB14WN and select Invoke. The web configuration login screen displays. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...
  • Page 51 NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Step 6. Right-click on the icon for your NB14WN and select Properties. A properties window displays with basic information about the device. YML14WN www.netcomm.com.au ADSL2+ Wireless N150 Modem Router User Guide...

  • Page 52: Appendix B: Troubleshooting

    Make sure that the telephone company has checked your phone line and set it up for DSL service. Reset your ADSL line to reinitialize your link to the DSLAM. If these steps fail to correct the problem, contact your local distributor for assistance. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 53: Web Configuration

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Telnet I cannot telnet into the NB14WN. STEPS CORRECTIVE ACTION Check the LAN port and the other Ethernet connections. Make sure you are using the correct IP address of the NB14WN. Check the IP address of the device.

  • Page 54: Internet Access

    Check WAN screen to verify that the username and password are entered properly. Verify your login name and password for the remote node. If these steps fail, you may need to verify your login and password with your ISP. ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...

  • Page 55: Appendix C: Technology Glossary

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Appendix C: Technology Glossary 10Base-T An adaptation of the Ethernet standard for Local Area Network (LAN). 10Base-T uses a twisted pair cable with maximum length of 100 meters. ATM Adaptation Layer that defines the rules governing segmentation and reassembly of data into cells. Different AAL types are suited to different traffic classes.
  • Page 56 Request for Comments. The document series, begun in 1969, which describes the Internet suite of protocols and related experiments. Not all RFCs describe Internet standards, but all Internet standards are written up as RFCs ADSL2+ Wireless N150 Modem Router User Guide YML14WN...

  • Page 57: Spanning Tree

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router RFC 1483 Multi-protocol encapsulation over AAL-5. Two encapsulation methods for carrying network interconnect traffic over ATM AAL-5. The first method allows multiplexing of multiple protocols over a single ATM virtual circuit. The protocol of a carried PDU is identified by prefixing the PDU by an IEEE 802.2 Logical Link Control (LLC) header.

  • Page 58: Appendix D: Legal & Regulatory Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury. ADSL2+ Wireless N150 Modem Router User Guide YML14WN...

  • Page 59: Federal Communication Comission Interference Statement

    NetComm Gateway Series - ADSL2+ Wireless N150 Modem Router Product Warranty The warranty is granted on the following conditions: This warranty extends to the original purchaser (you) and is not transferable; This warranty shall not apply to software programs, batteries, power supplies, cables or other accessories supplied in or with the product;...

  • Page 60: Gnu General Public License

    (refer to packaging). To be eligible for the extended warranty you must supply the requested warranty information to NetComm within 30 days of the original purchase by registering on-line via the NetComm web site at www.netcomm.com.au ADSL2+ Wireless N150 Modem Router User Guide YML14WN www.netcomm.com.au...
  • Page 61 NETCOMM LIMITED Head Office PO Box 1200, Lane Cove NSW 2066 Australia P: 02 9424 2070 F: 02 9424 2010 E: int.sales@netcomm.com.au W: www.netcommlimited.com. How to configure WEP/WPA-PSK/WPA2-PSK Wireless Security Product Warranty NetComm products have a standard 12 months warranty from date of purchase. However some products have an extended warranty option, via registering your product online at the NetComm website www.netcommlimited.com.
