Page 1: Quick Start Guide

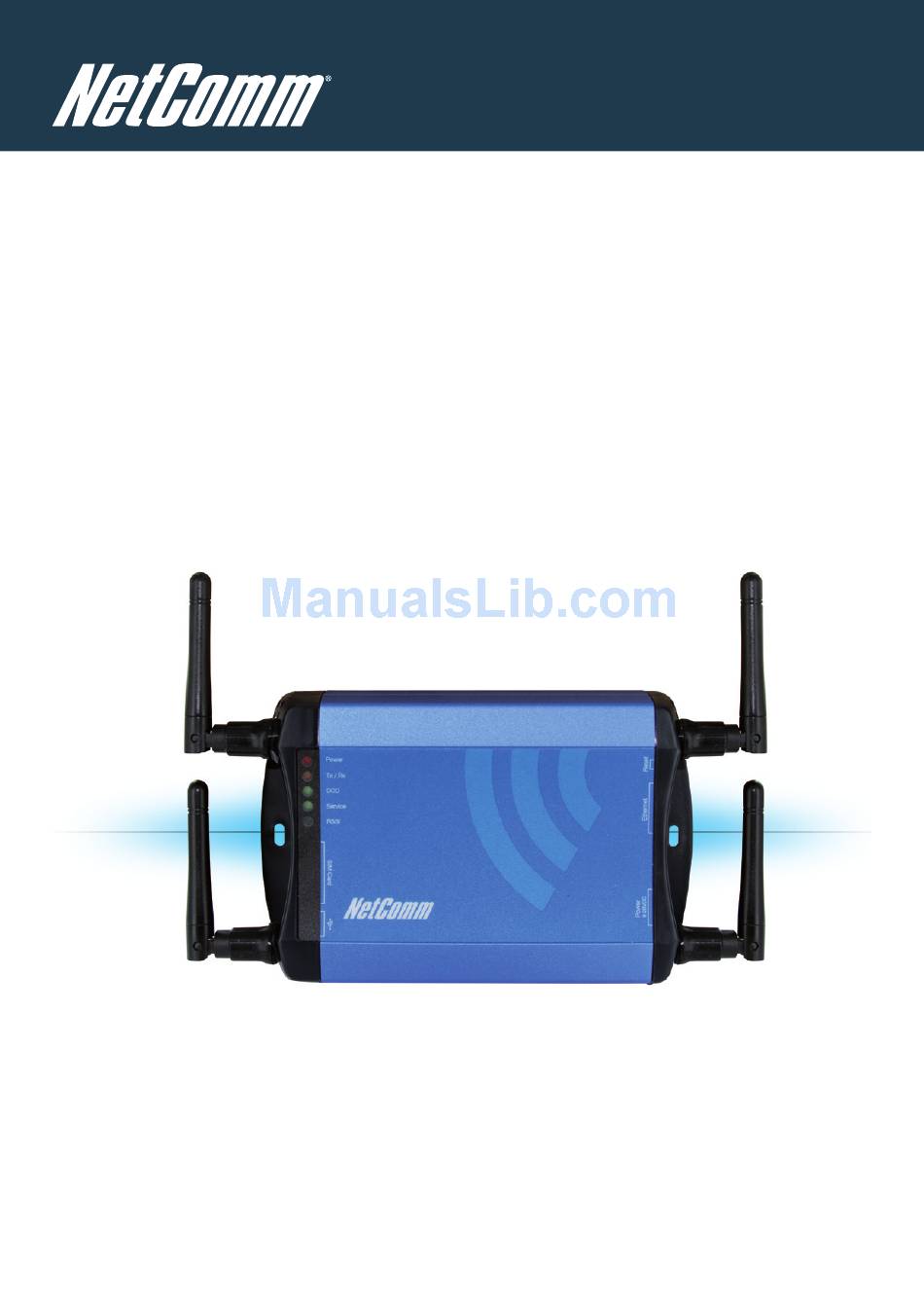

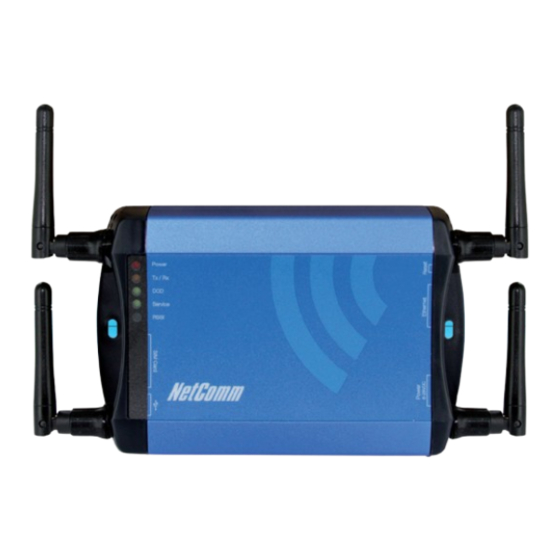

NTC-40W - HSPA+ M2M WiFi Router NTC-40WV - HSPA+ M2M WiFi Router with Voice Quick Start Guide... - Page 2 Quick Start Guide This guide covers the models NTC-40W and NTC-40WV. This guide will provide a series of step by step instructions to ensure the configuration of your Cellular Router goes as smoothly as possible. Firstly please check that you have received all the items in your package:...
- Page 3 NetComm Wireless M2M Series - NTC-40 Series Overview of LEDs Overview of Indicator Lights Display Description POWER (red) Solid ON The red Power LED indicates correct power is applied to the DC power input jack. Tx Rx (amber) Solid ON The amber LED will light upon data being sent to or received from the cellular network.
- Page 4 Overview of the Cellular Router Interfaces SIM Card Reader For insertion and removal of the SIM card Mini USB Port For insertion of the Mini USB cable NTC-40 Series Quick Start Guide...
-
Page 5: Ethernet Port
NetComm Wireless M2M Series - NTC-40 Series Receive Diversity Antenna Socket SMA Female 2Way Captive Power Terminal Block Power terminal block and the wide voltage range of 8-28V DC simplify the installation in different industrial environments Main Antenna Socket SMA Female... -
Page 6: Configuring Your Router
Overview of Cellular Router Interfaces Field Description Main Antenna Socket SMA Female SMA Female Receive Diversity Antenna Socket SMA Female Main WiFi Antenna Socket Receive Diversity Antenna SMA female Socket 5 Indicator LEDs Indicate visually the activities and connection state for power, service type, data traffic, data carrier connection and network signal strength. - Page 7 NetComm Wireless M2M Series - NTC-40 Series Step One: Inserting the SIM card Press the SIM Eject button to eject SIM card bay. Make sure the SIM card is inserted correctly by inserting the SIM the gold side facing down on the SIM...
- Page 8 Step Three: Preparing your computer Connect one end of the supplied Ethernet cable into a LAN Ethernet port of your router. Connect the other end of the cable into the LAN port of your computer. Configure your PC’s Ethernet interface to be dynamically assigned an IP address by doing the following: Configuring your Network Adapter in Windows Click on Start ->...
- Page 9 NetComm Wireless M2M Series - NTC-40 Series Find and click Internet Protocol (TCP/IP) from the protocol list box and then click the Properties button The TCP/IP. Configuration window will pop up as illustrated below. Under General tab, select radio button Obtain an IP address automatically and Obtain DNS server address automatically.
- Page 10 Step Four: Accessing your Router’s configuration pages There are two system management accounts for maintaining the system, root and admin, and each of which has slightly different levels of management capabilities. The root manager account is empowered with full privilege while the admin manager (administrator) can manage all settings of the Cellular Router excepts functions like Firmware Upgrade, Device Configuration Backup and Restore and Reset Cellular Router to factory default.
- Page 11 NetComm Wireless M2M Series - NTC-40 Series Follow the steps below to access the Cellular Router’s web browser: Open your web browser (e.g.Internet Explorer/Firefox/Safari) and navigate to http://192.168.1.1/ Click Login and type admin in the Username and Password fields. Then click on Submit.
- Page 12 Step Five: Unlocking the SIM If the SIM card is locked you will need to unlock it with a PIN provided with your SIM card. You can find out if the SIM is locked by viewing the SIM Status on the Home page: If the SIM Status is SIM Locked as above then click on the Internet Settings menu and then the Security link on the left.
- Page 13 NetComm Wireless M2M Series - NTC-40 Series Now Click on the link and the Home Status page should look as below with SIM Status OK: The SIM is now unlocked and can be used to connect to a 3G service.
- Page 14 Step Six: Connect to the Cellular Network This section describes how to set up the Cellular Router to initiate a wireless WAN connection. There are 2 different ways to set up a wireless WAN connection via PPP: Initiating the PPP Connection directly from the Cellular Router acting as the PPP Client (most common).
- Page 15 NetComm Wireless M2M Series - NTC-40 Series To Connect Using a Connection Profile The Router profiles allow you to configure the settings that the router will use to connect to a particular network. By default, the Router is configured to use the AutoConfig profile. This profile should detect the correct APN and connection details in order to connect to your 3G service.
- Page 16 Congratulations - your new NetComm NTC-40W / NTC-40WV Router is now ready to use! For more detailed information on the configuration and activation of other features, please visit our website www.netcomm.com.au and download the user guide. NTC-40 Series Quick Start Guide...
- Page 17 NetComm Wireless M2M Series - NTC-40 Series Notes: _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ NTC-40 Series Quick Start Guide...
-
Page 18: Product Warranty
P: 02 8205 3888 F: 02 9424 2010 E: int.sales@netcomm.com.au W: www.netcomm-commercial.com.au Product Warranty NetComm products have a standard 12 months warranty from date of purchase. Technical Support For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website.
