INSTALLATION, OPERATION, AND
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance
•
Do not touch any electrical switch; do not use any phone in
your building
•
Immediately call your gas supplier from a neighbors phone.
•
Follow the gas suppliers instructions
•
If you can not reach your gas supplier, call the fire
department
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada
MAINTENANCE MANUAL
31-DVIM33C-2

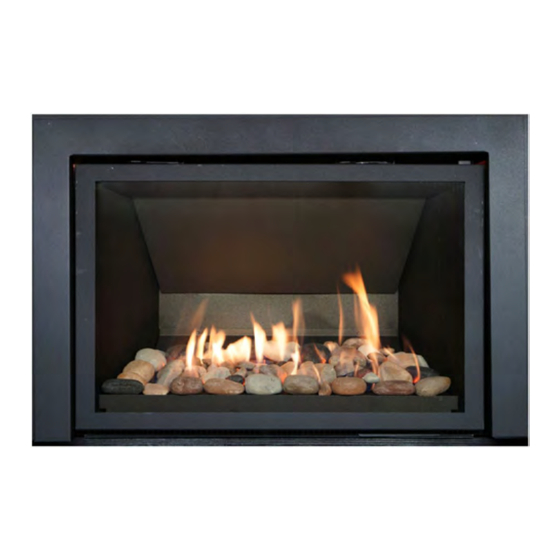

GAS FIRED VENTED ROOM HEATER
(DIRECT VENT)
S/N 200326 AND UP
This appliance may be installed in an aftermarket permanently
located, manufactured home (USA only) or mobile home where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certified kit is used.
WARNING: If the information in these instructions is not
followed exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life.
70.26%
Based on CSA P.4.1-09
200-1234-06
October 18 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Archgard 31-DVIM33C-2
Summary of Contents for Archgard 31-DVIM33C-2
- Page 1 CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE English and French Installation Manuals available through your local dealer or visit our website at: www.archgard.com Les manuels d'installation en anglais et en français son disponibles chez votre détaillant local ou en visitant notre site web: www.archgard.com...
-
Page 2: Table Of Contents
Gas Connections Replacement Parts List Conversion Kit Instructions Archgard Limited Warranty Prepare The Fireplace Pilot Conversion Appliance Description Leveling the 31-DVIM33C-2 Electrical Connections Venting Instructions Approved Terminations Venting Instructions 999-INS-TK Using a Co-linear to Coaxial Adapter Optional Wall Switch Or Thermostat... -
Page 3: Introduction
Thank you and congratulations on choosing an Archgard Gas Fireplace! The 31-DVIM33C-2 is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service. -
Page 4: Safety Information
Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. -
Page 5: Technical Information
Commonwealth of Massachusetts: This appliance has been manufactured in accordance with Massachusetts code 248 CMR 5.00. Approval Code: G1-0717-621. (http://license.reg.state.ma.us/public/licque.asp). Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. Installation Codes This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/... -
Page 6: Rating Plate
For use only with barrier part # 31-BS. Follow installation instructions. SEULES DES PORTES CE Utiliser uniquemen Fabrique au Canada par: Made in Canada by: Archgard Industries Ltd. Archgard Industries Ltd. 7116 Beatty Dr., Mission, B 7116 Beatty Dr., Mission, B.C. octobre 2018 303-60... -
Page 7: Control Panel Locations
Installation Control Panel Locations The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configuration. They can be moved to the “Controls Out” configuration by removing the two mounting screw on each side and swinging the panels out and replacing the screws. -
Page 8: Minimum Fireplace Dimensions
Installation Minimum Fireplace Dimensions DIMENSIONS DIMENSIONS "Controls Out" "Controls In" 20-1/4” (514 mm) 20-1/4” (514 mm) 14” (356 mm) 15 1/2” (394 mm) 19” (483 mm) 19” (483 mm) 30” (762 mm) 33 1/2” (851 mm) 0" 3" (76mm) ATTENTION This fireplace has been designed to be installed into a Masonry or Factory Build Wood Burning Fireplaces ONLY. -
Page 9: Factory Built Wood-Burning Fireplace
Installation Factory Built Wood-Burning Fireplace INSTALLER NOTES The installer must mechanically attach a marking to the inside of the firebox of the fireplace into which the gas fireplace insert is installed indicating that it has been altered and is no longer suitable for burning the original fuel unless the removed parts are reinstalled Cutting of any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited unless following the directions below. -
Page 10: Clearances To Combustibles
Installation Clearances to Combustibles Mantle Clearances WARNING Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE Mantle depth maybe increased/decreased 1” (25.4 mm) for each 1” (25.4 mm) change in corresponding clearance height. Mantle depth of less than 1”... -
Page 11: Hearth Clearances
Installation Hearth Clearances 16” WARNING Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. All specified clearances must be maintained from the top surface of carpeting, tile, Non Combustible etc. -
Page 12: Gas Connections
Installation Gas Connections Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided. -
Page 13: Conversion Kit Instructions
Installation Conversion Kit Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. - Page 14 (See Fig C) Install the LP identification label to the valve (found in kit). Affix Archgard Manufacturer’s label (part # 303-0128) in a conspicuous location. We suggest a location close to the gas control valve. Check for gas leaks.
-
Page 15: Appliance Description
Installation Appliance Description Leveling the 31-DVIM33C-2 Front Level Located slightly in from the front edge of the fireplace is the new leveling feature. Leveling bolts can be installed to enable you to raise the front of the firebox if necessary. If you need higher adjustment you only need to change to a longer bolt. -
Page 16: Venting Instructions
The 31-DVIM33C-2 requires (2) flexible flue liners: of the damper, or by being fully blocked open, for the INLET Collar - 3” (76 mm) diameter installation of a gas fireplace insert. -
Page 17: Venting Instructions 999-Ins-Tk
Installation Venting Instructions 999-INS-TK Install the termination cap making sure to provide sufficient space (around and on top) so you do not impede the flow of air, both into and out of, the cap. This cap is only to be used for non-combustible installations. Do not recess into the top of the chimney. -
Page 18: Using A Co-Linear To Coaxial Adapter
Installation Using a Co-linear to Coaxial Adapter The gas fireplace can be converted from co-linear to coaxial when it is desired to remove a section of the masonry fireplace chimney to below the roof line. WARNING This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/ CGA-B149.1 in Canada. -
Page 19: Optional Wall Switch Or Thermostat
Installation Optional Wall Switch Or Thermostat If a wall mounted switch or a wall mounted thermostat is desired, Archgard recommends that the device be wired as shown in the diagram below. NOTE: Archgard Industries does not manufacture or sell any type of wall switch or wall thermostat and will not extend warranty to them Thermostat / wall switch wire table Recommended Maximum Lead Length for two wires. -
Page 20: Vent Restrictor Installation
Installation Vent Restrictor Installation When the vent is over 18’(5.5m) a vent restrictor may be required. The installation of the restrictor will equalize the vent stack action that can cause problems with a proper fire set-up. The vent restrictor is supplied loose in the manual bag. When required, it installs onto the upper baffle in the center portion. The baffle air openings are located in the top of the firebox just inside the front frame of the fireplace. -
Page 21: Fire Bead Installation
Installation Fire Bead Installation WARNING Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 22: River Rock Installation
Installation River Rock Installation Distribute the rocks evenly around the burner to personal preference. Care must be taken that you DO NOT cover burner ports with any of the “large” stone flat surfaces. Keep burner ports clear of blockage: i.e. flat surfaces of the rocks to create an enjoyable burning fire. If the ports are covered it may cause soot build up that will affect the operation and maintenance of your fireplace. -
Page 23: Glass Door Removal And Replacement
WARNING: Do not operate appliance with the glass front cracked or broken. Replacement of the glass should be done by a licensed or qualified service person. IF YOUR GLASS BREAKS In the event your glass cracks or breaks, Archgard recommends that a new door assembly be ordered to replace the original door. • Remove door as per the instructions above. -
Page 24: Safety Barrier Installation
Installation Safety Barrier Installation If barrier becomes damaged, the barrier shall be replaced with the manufacturer's barrier for this appliance (Part Number 31-BS). Screen Top WARNING DOOR MUST BE INSTALLED PRIOR TO SCREEN TO AVOID POSSIBLE DAMAGE OR INJURY Screen Bottom Retainer Tabs Identify the top and bottom of the screen. -
Page 25: Final Installation Check
Final Installation Check Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally in- stalled in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order. -
Page 26: Operation
Operation Operation Lighting Instructions On Rating Plate... -
Page 27: First Fire
Operation First Fire When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporat- ing the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound. -
Page 28: Maintenance
Maintenance Maintenance CAUTION Do not conduct maintenance on the appliance while it is operating or while it is still hot. Cleaning The Appliance The exterior painted surfaces, glass, and metal plated trims may be cleaned with a soft, non-abrasive cloth and water or a suitable, mild, non-abrasive cleaner. -
Page 29: Servicing Under Warranty
Servicing Under Warranty Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual). -
Page 30: Checking The Gas Pressure
Installation Checking The Gas Pressure Remove the surround. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Below. Loosen the set screw inside the tap with a screwdriver. -
Page 31: Replacing Convection Blower
Maintenance Replacing Convection Blower CAUTION CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1. -
Page 32: Troubleshooting
Maintenance Troubleshooting Please check to make sure the instructions are followed exactly before attempting troubleshooting of the appliance. WARNING: Troubleshooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified ser- vice technician. SYMPTOM ACTION Pilot will not light after pressing... - Page 33 Maintenance SYMPTOM ACTION Sooty deposits on the glass door. If the flame is yellow and lazy, check for lint etc. around primary air shutter. Increase primary air by opening the primary air shutter if necessary. Check for proper placement of the logs and branches. Ensure logs and burner are clean. See that section in the instruction manual.
-
Page 34: Frequently Asked Questions
Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the setting that your fan speed control is set at. -
Page 35: Replacement Parts List
Maintenance Replacement Parts List Item # Item Description Unit 200-1234-06 Owner’s Manual 308-0013 Valve, SIT 820 Nova, Hi/Low Natural Gas 308-0008 Piezo Igniter (Sparker) 301-0068-33 Orifice (Main Burner Orifice) Drill to # 33 DMS for Natural Gas 301-0068-51 Orifice (Main Burner Orifice) Drill to # 51 for LP (Propane) Gas 301-6007 Orifice holder 308-0120... -
Page 36: Archgard Limited Warranty
Date of Purchase • Problem Description NOTE: Warranty will be void if work is carried out by an unqualified person(s). Only original Archgard parts may be used. Please consult your Archgard dealer or representative if in doubt about a replacement part(s). •... - Page 37 POSTAGE WARRANTY REGISTRATION ARCHGARD INDUSTRIES LTD. 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED Model # : Serial #: Date Installed: Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer’s Name &...
- Page 38 NOTES...
- Page 39 NOTES...
