MODEL OPTIMA 30
FIREPLACE INSERT ROOM HEATER
FOR USE WITH NATURAL GAS AND PROPANE
FOR YOUR SAFETY
OPERATING THE APPLIANCE
11APR01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Archgard OPTIMA 30
Summary of Contents for Archgard OPTIMA 30

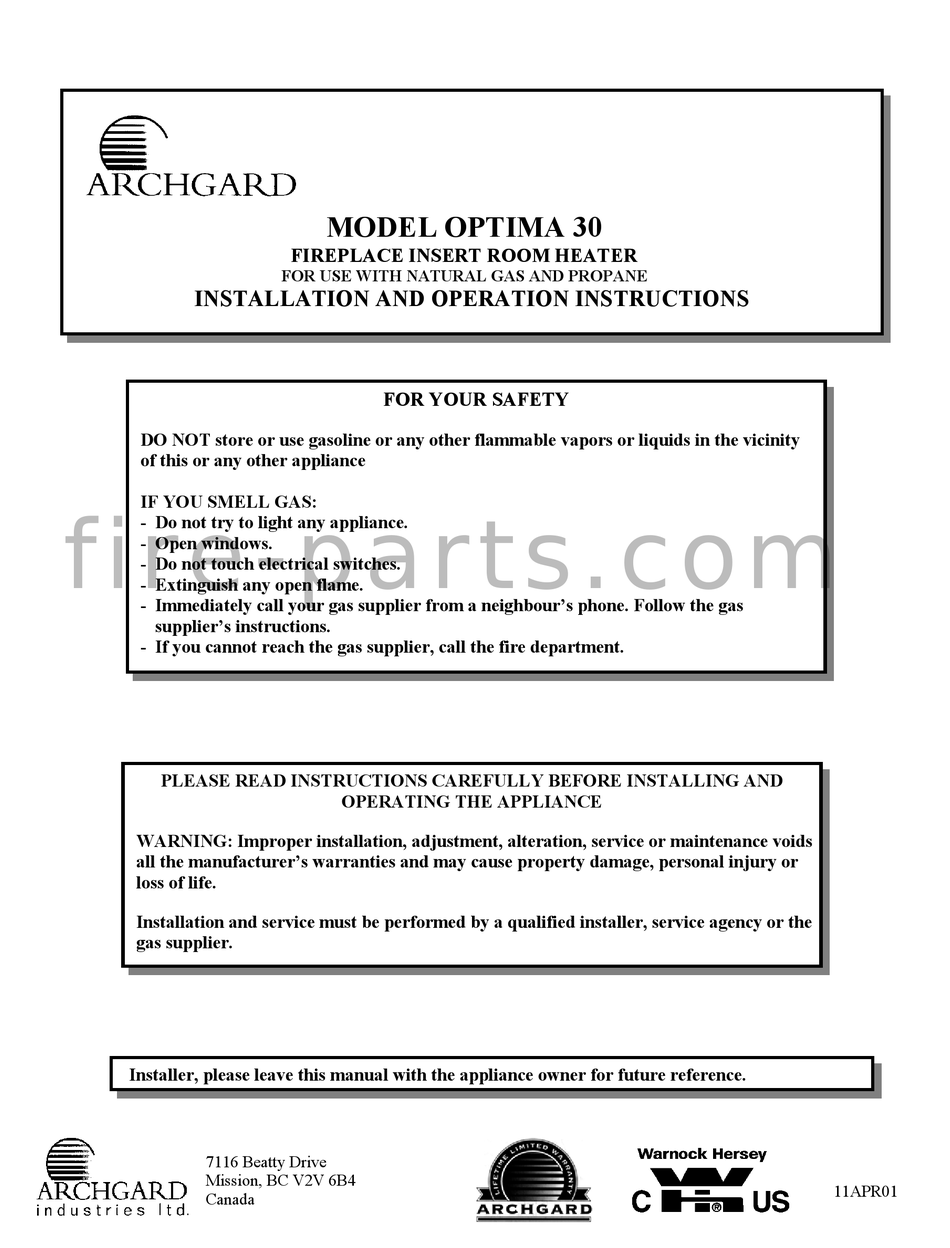

- Page 1 MODEL OPTIMA 30 FIREPLACE INSERT ROOM HEATER FOR USE WITH NATURAL GAS AND PROPANE INSTALLATION AND OPERATION INSTRUCTIONS FOR YOUR SAFETY DO NOT store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other appliance IF YOU SMELL GAS: f i r e - p a r t s .
-
Page 2: Table Of Contents
More frequent cleaning maybe required due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartments, burners and circulating air passageways for the appliance be kept clean. Manufactured by Archgard Industries Ltd, British Columbia, Canada. Patents Pending... -
Page 3: Introduction

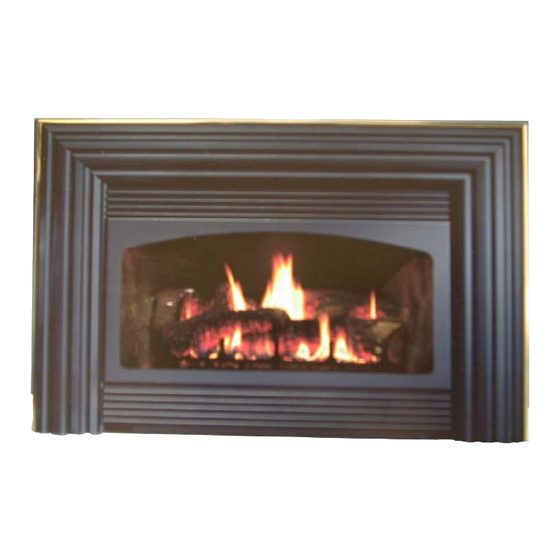

Thank you for purchasing the Archgard Optima 30 The Optima 30 is one of the most advanced fireplace insert heaters on the market. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with many trouble free years of reliable service. -
Page 4: General Information
- ANSI Z21.88a-1998/CSA 2.33a-M98, Vented Gas Fireplace Heaters, - ANSI Z21.44-1995, CAN1-2.19-M81, Direct Vent Wall Furnaces, - CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer. -
Page 5: Appliance Description
APPLIANCE DESCRIPTION Optima 30 TOP VIEW DRAFT HOOD FLUE CONNECTOR PLATE SPILL SWITCH f i r e - p a r t s . c o m FRONT TOP GRILL LOG SET OPTIONAL BRICK PANELS BOTTOM GRILL... -
Page 6: Dimensions And Clearances
DIMENSIONS AND CLEARANCES 16” (406mm APPLIANCE DIMENSIONS 14” (356mm TOP VIEW Standard faceplate: 38” (965mm) SIDE VIEW Oversize faceplate: f i r e - p a r t s . c o m 19” (483mm Std. 26-1/2” (673mm) OS 29- 20-1/4”... -
Page 7: Dimensions And Clearances
CAUTION: This appliance is designed for used in any masonry or factory built wood burning fireplace. It cannot be enclosed by combustible material and used as a built-in gas fireplace, unless it is installed into an Archgard zero-clearnce box, model ZC-KIT. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS PRECAUTIONS This appliance must be installed by a qualified gas installer and the installation conform to the installation codes. This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air. Provide adequate clearance around air openings of the appliance. -
Page 9: Electrical Connections
Cont... ELECTRICAL CONNECTIONS The Optima 30 comes complete with a cord and plug already installed. If you require to run an electrical lead to the appliance follow the instructions listed below. Have qualified electrician run a set of 120VAC supply lines to the lower left side of the fireplace before installing the appliance. - Page 10 INSTALLATION INSTRUCTIONS Cont... VENTING The appliance is equipped with a vent safety shutoff system and a safety control system designed to protect against improper venting of combustion products. The appliance will not function without being connected to a proper venting system. WARNING: Operation of this heater when not connected to a properly installed and maintain venting system or tampering with the vent shut-off system can result in carbon monoxide (CO)
- Page 11 INSTALLATION INSTRUCTIONS Cont... GLASS DOOR WARNING: Do not attempt to remove the glass door when the appliance is hot. Removing the Glass Door ⇒ Remove the two screws located at the bottom of the door. ⇒ Lift out the bottom of the door and lift the whole door assembly up and off the two locating tabs at the top of the door assembly.
- Page 12 INSTALLATION INSTRUCTIONS Cont... PLACEMENT OF LOG - Place the log on the log holder at the back of the firebox. Push the log against the back of the firebox. f i r e - p a r t s . c o m GRATE PLACEMENT OF EMBERS &...
-
Page 13: Operation Instructions
OPERATION INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING INITIAL OPERATION - Check that the appliance is properly vented and connected to the gas supply. - Check the log is properly placed. - Check all external parts, such as grills, door and faceplate are properly attached and fastened. NOTE : When operated for the first few times, the appliance will emit some odor and fumes. - Page 14 OPERATION INSTRUCTIONS Cont.. AUTOMATIC VALVE START-UP PROCEDURE Set the thermostat, if present, to the lowest level. Press slightly and turn the control knob clockwise to the OFF position and wait 5 minutes; thus allowing any gases to escape which may have accumulated in the combustion chamber. Note: LP gases do not vent upward.
-
Page 15: Maintenance
MAINTENANCE CAUTION : Do not conduct maintenance on the appliance while it is operating or while it is still hot. CLEANING THE APPLIANCE The exterior painted surfaces, glass and gold trims may be cleaned with a soft, non-abrasive cloth and water or a suitable, mild, non-abrasive cleaner. -
Page 16: Trouble Shooting Instructions
TROUBLE SHOOTING Please check to make sure the instructions are followed exactly before attempting trouble shooting of the appliance. WARNING: Trouble shooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified service technician. SYMPTOM ACTION Pilot will not light after pressing the... - Page 17 TROUBLE SHOOTING Cont... SYMPTOM ACTION The main burner does not turn on with 3. Check to make sure the thermostat is set high enough to turn on the appliance. the pilot lit. Cont... 4. Check that the remote switch or the thermostat is turned on. 5.
-
Page 18: Wiring Diagrams
WIRING DIAGRAMS CONVECTION SPEED CONTROL 110F (43ºC) N.O. THERMAL SNAP SWITCH LINE CONVECTION BLOWER 120 VAC NEUTRAL ELECTRICAL GROUND AUTOMATIC OPTIONAL SPARK ELECTRODE PILOT f i r e - p a r t s . c o m THERMOSTAT BURNER THERMOCOUPLE FACEPLATE THERMOPILE... -
Page 19: Servicing
SERVICING SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the Archgard authorized dealer which you have purchase the appliance from and provide him with details of the problem and the installation information which the installer has fill out at the back of the manual. - Page 20 SERVICING Cont... CHECKING INLET AND OUTLET GAS PRESSURE - Open the lower grills. - The pressure test taps are located on the valve. Automatic valve: The taps are located in the front. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’.
- Page 21 IMPORTANT INFORMATION * Please have the installer fill-out the installation information for warranty and future reference. APPLIANCE OPTIMA 30 MODEL NUMBER SERIAL NUMBER GAS TYPE NATURAL GAS VALVE TYPE SIT 630 SIT 820 DATE PURCHASED OWNER NAME ADDRESS CITY STATE/PROVINCE f i r e - p a r t s .
- Page 22 Place of Purchase Date of Purchase Problem Description NOTE: Warranty may be void if work is carried out by unqualified personnel. Only original Archgard parts may be used. Please consult your Archgard representative if in doubt. OBTAINING WARRANTY SERVICE: To obtain warranty service, the consumer shall return the defective part to the original selling dealer transportation prepaid, along with the serial number of the appliance and proof of purchase.
- Page 23 Replacement Parts for OPTIMA 30 Item # Item Description Unit 200-0046 OWNER'S MANUAL, OPTIMA 30 1 EA 300-0030 HINGE, BRASS #7629-BB SPRING TO CLOSE 2 EA 300-0031 MAGNET .25 X.875 X 1.0 7# PULL 2 EA 300-0032 CATCH, AMEROCK FOR LOUVERS...
-
Page 24: Warranty Registration
Postage WARRANTY REGISTRATION ARCHGARD INDUSTRIES LTD. 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE f i r e - p a r t s . c o m FOLD DOWN AT LINE & TAPE CLOSED Model No:____________________________ Date Installed: _____/_____/______ Name &...
