Archgard 36-DVIE40LN-1 Installation, Operation And Maintenance Manual

Archgard 36-DVIE40LN-1 Installation, Operation And Maintenance Manual

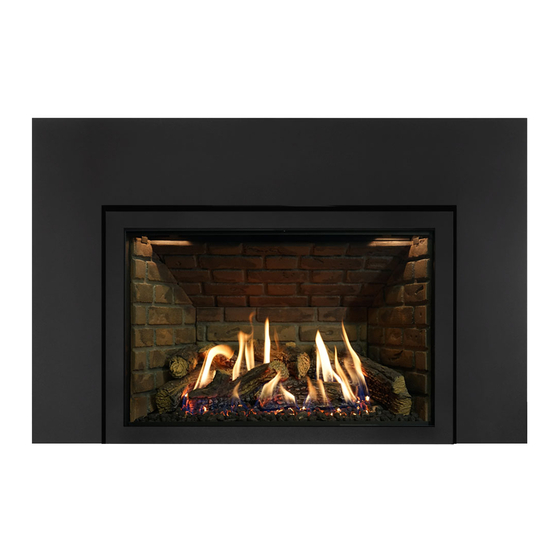

Gas fired direct vent fireplace insert
Table of Contents

Advertisement

WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance
Do not touch any electrical switch; do not use any phone in
your building
Immediately call your gas supplier from a neighbors phone.
Follow the gas suppliers instructions
If you can not reach your gas supplier, call the fire
department
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
MODEL: 36-DVIE40LN-1
GAS FIRED DIRECT VENT
FIREPLACE INSERT
S/N 360000 AND UP
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only) or
mobile home where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
WARNING: If the information in these instructions is not
followed exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life.
200-1920-01
April 11, 2017
